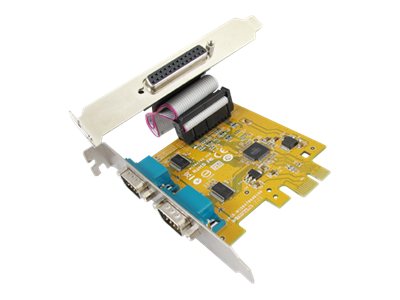

Sunix MIO6479A - Parallel/seriel adapter - PCI Exp
Produktnummer 992654528
Modell MIO6479A
Varumärke Sunix Group
EAN 4710747388762
Vikt 0.22 kg
Produktbeskrivelse | Sunix MIO6479A - parallel/seriel adapter - PCIe 2.0 - 2 porte |
Enhedstype | Parallel/seriel adapter |
Model | Indstikskort |
Grænseflade (bus) type | PCI Express 2.0 x1 |
PCI-specifikationsrevision | PCIe 2.0 |
Dimensioner (B x D x H) | 7.8 cm x 8.5 cm |
Antal porte | 2 porte |
Ekstra ports | 1 x parallel port |
Dataforbindelsesprotokol | RS-232 |
Processor | 1 x Sunix Sunix SUN2410 |
Systemkrav | Microsoft DOS, Microsoft Windows 2000, Linux 2.4.x, Linux 2.6.x, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Vista / XP / 7 / 8, Microsoft Windows Vista / XP / 7 / 8 (64-bit versioner), Linux 3.x, Microsoft Windows Server 2008 R2 (32/64-bit) |
Allmänt | |
---|---|
Formfaktor | Instickskort |
Gränssnittstyp (buss) | PCI Express 2.0 x1 |
Typ av enhet | Parallellt/seriellt kort - 2 portar |
Version av PCI-specifikation | PCIe 2.0 |
Nätverk | |
Anslutningsteknik | Kabelansluten |
Datalänkprotokoll | RS-232 |
Funktioner | Flödeskontroll, 15 KV Electrostatic Discharge Protection |
Tillbehörsportar | 1 parallellport |
Processor / Minne | |
Processor | 1 x Sunix Sunix SUN2410 |
Expansion/Anslutning | |
Gränssnitt | 2 x RS-232 - 9 pin D-Sub (DB-9) | 1 x IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) |
Kompatibla kortplatser | 1 x PCI Express 2.0 x1 |
Diverse | |
Medföljande kablar | 1 x parallell adapter |
Standarder som följs | Plug and Play, C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, WHQL, CISPR 22, EN55022 Class B, FCC Part 15 B, RoHS, BSMI CNS 13438, AS/NZS, VCCI Class B |
Programvara / Systemkrav | |
Operativsystem erfordras | Microsoft DOS, Microsoft Windows 2000, Linux 2.4.x, Linux 2.6.x, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Vista / XP / 7 / 8, Microsoft Windows Vista/XP/7/8 (64-bitars versioner), Linux |
Dimensioner och vikt | |
Djup | 7.8 cm |
Höjd | 8.5 cm |
Miljöparametrar | |
Luftfuktighet vid drift | 5 - 95% |
Max temperatur vid drift | 60 °C |
Min temperatur vid drift | 0 °C |
