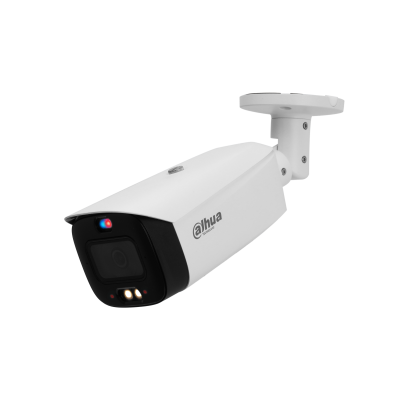

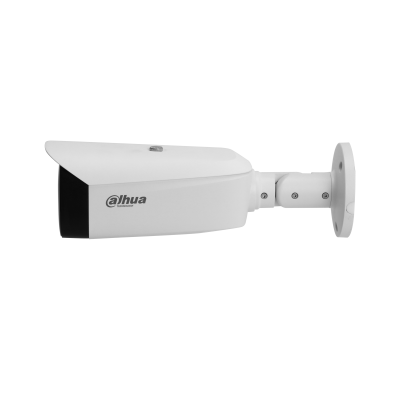

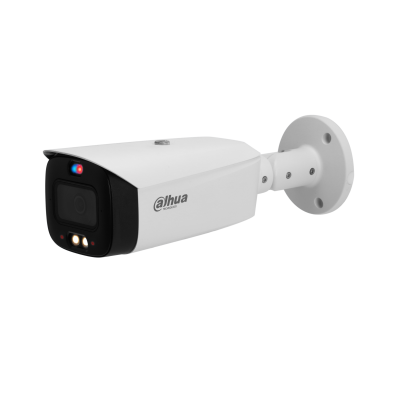

Dahua 5MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera
Dahua IPC-HFW3549T1-AS-PV 5MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera
-
Varenummer 1002328321
Model IPC-HFW3549T1-AS-PV-
Producent
Gå til producentens hjemmesideEAN 6923172525536
Vægt 1.29 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| Image Sensor | 1/2.7”5Megapixel progressive CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 Lux @ F1.0 |
| S/N Ratio | > 56 dB |
| Illumination Distance | 40 m (131.2 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129°, 3.6 mm: Horizontal 77° × Vertical 56° × Diagonal 101°, 6 mm: Horizontal 53° × Vertical 40° × Diagonal 66° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 1.2 m (3.9 ft), 3.6 mm: 2.1 m (6.9 ft), 6 mm: 4.5 m (14.8 ft) |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/Smart H.264+ |
| Video Frame Rate | Main stream: 2592 × 1944 @1-20 fps/ 2688 × 1520 @1-25/30 fps, Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps, Third stream: 1920 × 1080 @1-25/30 fps |
| Resolution | 5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing) |
| Network | RJ-45 (10/100 Base-T) |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic power consumption: 2W (12V DC); 2.6W (PoE), Max. power consumption (H.265 + warm light + IVS + sound alarm + red and blue lights flash): 7.5W (12V DC); 8.8W (PoE) |
| Operating Conditions | –40°C to +60°C (–40°F to +140°F)/Less than 95% RH |
| Protection Grade | IP67 |
| Casing | Metal + plastic |
| Dimensions | 288.4 mm × 94.4 mm × 84.7 mm (11.4" × 3.7" × 3.3") (L × W × H) |
| Weight | 1.0 kg (2.2 lb) |
