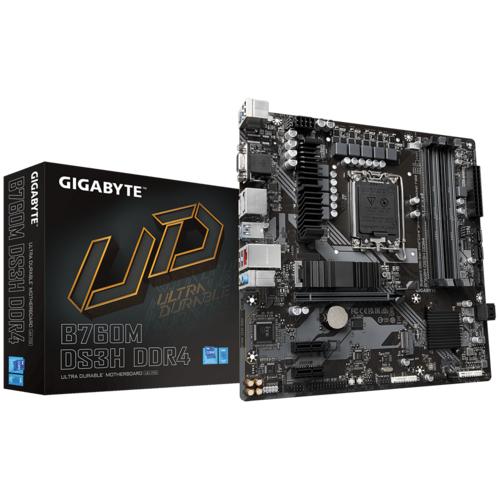

Gigabyte B760M DS3H DDR4 Micro-ATX LGA1700 Intel B760
Gigabyte B760M DS3H DDR4 - 1.0 - bundkort - micro ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Varenummer 1000909578
Model B760M DS3H DDR4
Producent
Gå til producentens hjemmesideEAN 4719331850876
Vægt 0.92 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express Chipset |
| Memory | 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Onboard Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Audio | Realtek Audio CODEC |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| USB | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support, 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header), 2 x USB 2.0/1.1 ports on the back panel |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1 x 128 Mbit flash |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Generelt | |
|---|---|
| Chipsættype | Intel B760 |
| Kompatible processorer | (understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron) |
| Max antal processorer | 1 |
| Processor-socket | LGA1700 sokkel |
| Produkttype | Bundkort - micro ATX |
| Understøttet RAM | |
| Bus Clock | 2400 MT/s, 2133 MT/s, 2666 MT/s, 2933 MT/s, 3000 MT/s, 3200 MT/s, 3300 MT/s (O.C.), 3333 MT/s (O.C.), 3400 MT/s (O.C.), 3466 MT/s (O.C.), 3600 MT/s (O.C.), 3666 MT/s (O.C.), 3733 MT/s (O.C.), 3800 MT/s (O.C.), 3866 MT/s (O.C.), 4000 MT/s (O.C.), 4133 |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand |
| Maks. størrelse | 128 GB |
| Registreret eller buffer | Ikke bufferet |
| Teknologi | DDR4 |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC (drift i ikke-ECC tilstand) |
| Audio | |
| Overensstemmelsesstandarder | High Definition Audio |
| Type | HD Audio (8-kanaler) |
| LAN | |
| Netværks interfaces | 2.5 Gigabit Ethernet |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 4.0 x16 | 2 x PCIe 3.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning) |
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -stikforbindelser: 2 x M.2 |
| Interface | 2 x DisplayPort | 1 x HDMI | 1 x VGA | 2 x USB 2.0 | 3 x USB 3.2 Gen 1 | 1 x USB-C 3.2 Gen 2 | 1 x audio linje-ind - mini-jack | 1 x mikrofon - mini-jack | 1 x audio linje-ud - mini-jack | 1 x LAN (2.5Gigabit Ethernet) | 1 x PS/2-tastatur/mus |
| Interne interfaces | 4 x USB 2.0 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 1 x audio - intern stik | 1 x parallel - intern stik | 1 x seriel - intern stik | 1 x SPI - intern stik | 1 x SPDIF ud - intern stik |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| Egenskaber | |
| BIOS-egenskaber | PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support |
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | 6+2+1 Phase Power Design, M.2 Thermal Guard, GIGABYTE Smart Fan 6, Q-Flash Plus, Solid Pin Power Connectors, RGB FUSION, MultiKey, DIY Friendly Design |
| Hardwareovervågning | Blæserfejlvarsel, blæserkontrol, vandkølings-flowrate |
| Diverse | |
| Bredde | 24.4 cm |
| Dybde | 24.4 cm |
| Med software | Norton Internet Security |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
| Overensstemmelsesstandarder | DisplayPort 1.2, HDCP 2.3, FCC Part 15 Subpart B, WEEE, UKCA |
