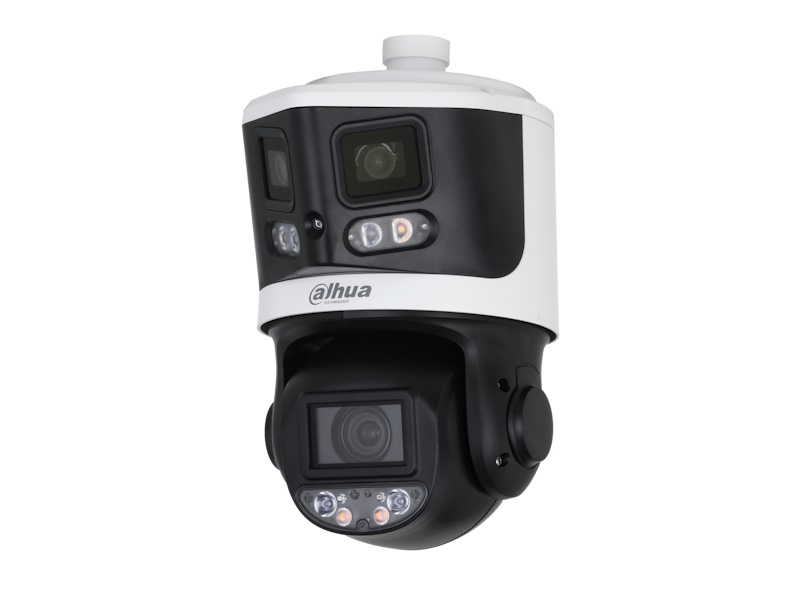

Dahua SDT3E410-8P-MB-A-PV1 8MP+4MP Netværksovervågningskamera 5376 x 1520

Dahua SDT3E410-8P-MB-A-PV1 - Netværksovervågningskamera - vejrbestandig - farve (hvid) - 8MP+4MP - 5376 x 1520 + 2560 x 1440 - 5K - audio - RJ45 - H.264, H.265 - DC 12 V, PoE+

  • Varenummer 1003400402

    Model SDT3E410-8P-MB-A-PV1

    Producent
    Gå til producentens hjemmeside

    EAN 6939554933479

    Vægt 1 kg

  • Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
Image Sensor 1/2.8" CMOS
Max. Resolution Overview channel: 5376 x 1520, Detail channel: 2560 x 1440
ROM 4 GB
RAM Overview channel: 2 GB, Detail channel: 1GB
Scanning System Progressive
Electronic Shutter Speed Overview channel: 1 s–1/100,000 s; Detail channel: 1 s–1/30,000 s
Min. Illumination Overview channel: 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on), Detail channel: 1 s–1/30,000 s 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on)
Illumination Distance Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light), Detail channel: 70 m (229.66 ft); 30 m (98.43 ft) (white light)
Illuminator Number Overview channel: 2 (IR light); 2 (white light); Detail channel: 2 (Dual light fusion); 2 (IR light)
Focal Length Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm
Max. Aperture Overview channel: F1.6; Detail channel: F1.6-F3.6
Field of View Overview channel: H: 180°; V: 47°; Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8°
Optical Zoom Overview channel: NA; Detail channel: 10×
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Video Frame Rate 1–25/30 fps
Resolution Up to 5376 × 1520
Bit Rate Control CBR/VBR
Video Bit Rate Overview channel: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps; Detail channel: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps
Noise Reduction Overview channel: 2D NR; 3D NR, Detail channel: 2D NR; 3D NR
Motion Detection Yes
Image Stabilization Overview channel: NA, Detail channel: Electronic Image Stabilization (EIS)
Defog Electronic
S/N Ratio ≥55dB
Audio Compression PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729
Network Port RJ-45 (100 Base-T)
User/Host 20 (total bandwidth: 64 M)
Storage Micro SD card (512 GB); FTP/SFTP; NAS
Mobile Client iOS; Android
Ports Audio Input, Audio Output, Alarm Input 0–5 VDC, Alarm Output, RJ-45
Power Supply 12 VDC, 3 A ± 10%, PoE+(802.3at)
Power Consumption Basic: 12 W; Max: 25 W
Net Weight 2.17 kg
Product Dimensions (L x W x H) 140.3 × 181.7 × 238.8 mm
White Balance Auto
Sound Warning Yes
Light Warning Yes
Pan/Tilt Range Pan: 0° to 345°; Tilt: -10° to +90°
IVS (Perimeter Protection) Tripwire
Face Detection Yes
Auto Tracking Auto Tracking Lite
Smart Tracking WizTracking: Xinghan large-scale AI models-driven
