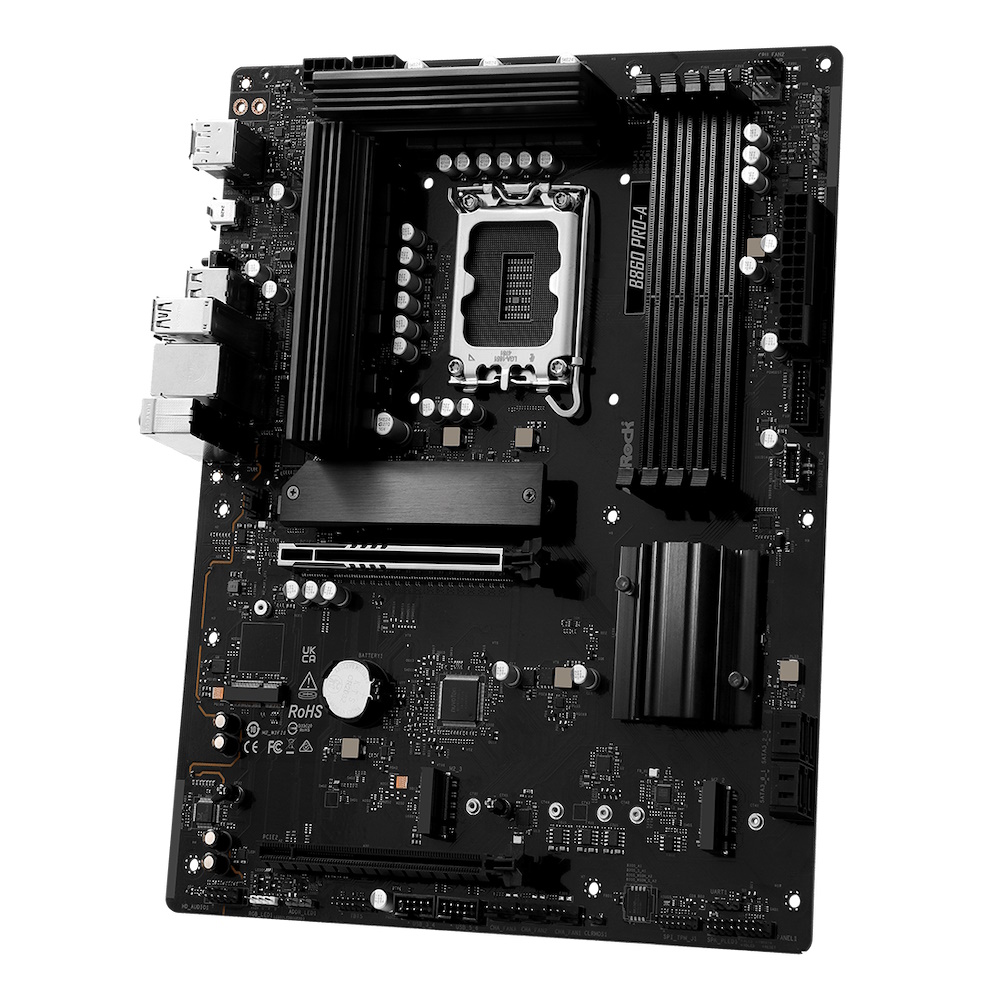

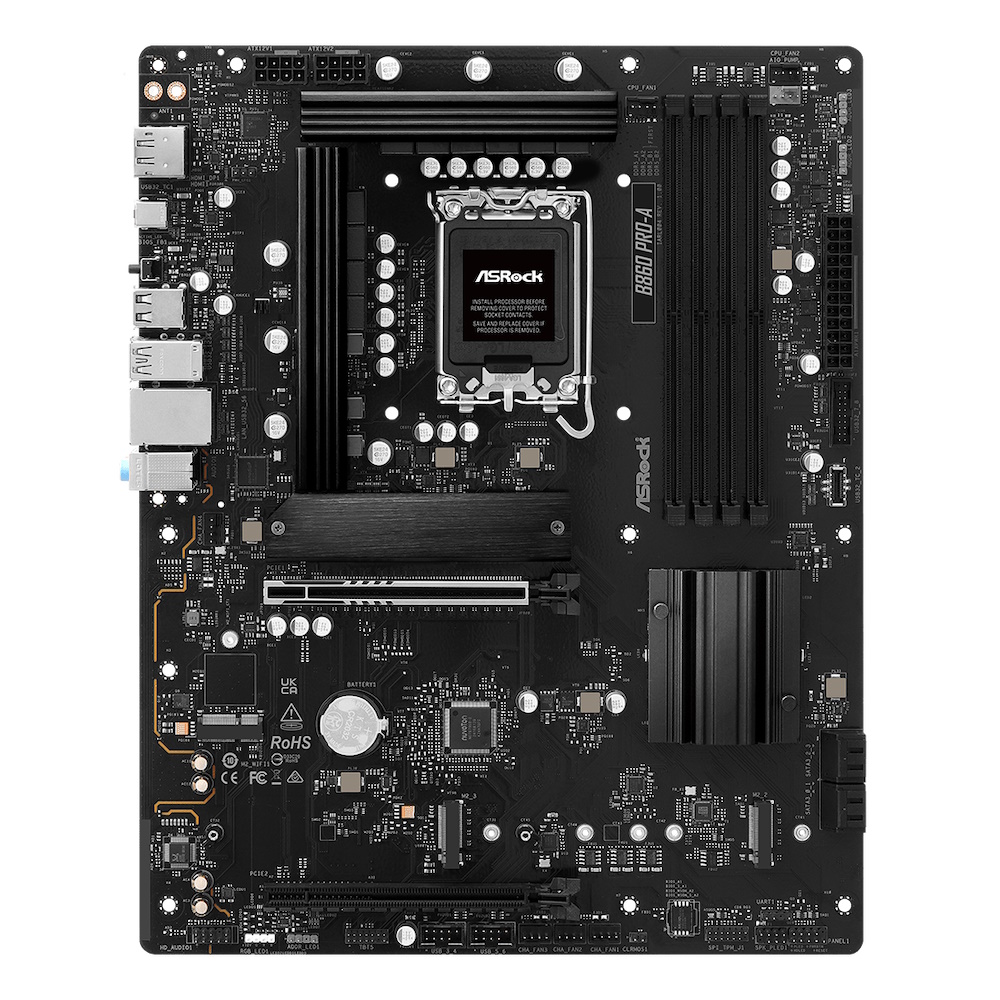

ASRock B860 Pro-A ATX S1851
ASRock B860 Pro-A - ATX - Socket LGA1851 - 4x DDR5 slots - HDMI 2.1 - DisplayPort 1.4 - Dragon RTL8125BG
-
Varenummer 1002951779
Model 90-MXBRN-A0UAYZ
Producent
Gå til producentens hjemmesideEAN 4711581490246
Vægt 1.55 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) |
| Chipset | Intel® B860 |
| Memory | 4x DDR5 DIMM Slots, Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC) Max: 256GB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Dragon RTL8125BG - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Slots | 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Storage | 1x Blazing M.2 Socket, supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1x M.2 Socket, supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1x Hyper M.2 Socket, supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 4x SATA3 6.0 Gb/s Connectors |
| USB | 1x USB 3.2 Gen2x2 Type-C (Rear), 1x USB 3.2 Gen1 Type-C (Front), 8x USB 3.2 Gen1 (6 Rear, 2 Front), 6x USB 2.0 (2 Rear, 4 Front) |
| Rear Panel I/O | 2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s), 6x USB 3.2 Gen1 Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | 1x I/O Shield, 2x SATA Data Cables, 1x Screw for M.2 Socket |
| Form Factor | ATX Form Factor: 30.5 cm x 24.4 cm |
| Certifications | FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required) |
| Generelt | |
|---|---|
| Chipsættype | Intel B860 |
| Kompatible processorer | (understøtter Intel Core Ultra-processorer (Serie 2)) |
| Max antal processorer | 1 |
| Processor-socket | LGA1851 sokkel |
| Produkttype | Bundkort - ATX |
| Understøttet RAM | |
| Bus Clock | 4333 MHz (O.C.) |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0 |
| Maks. størrelse | 256 GB |
| Registreret eller buffer | Ikke bufferet, clocked unbuffered |
| Teknologi | DDR5 |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Audio | |
| Audio codec | Realtek ALC897 |
| Overensstemmelsesstandarder | High Definition Audio |
| Type | HD Audio (8-kanaler) |
| LAN | |
| Netværk controller | Dragon RTL8125BG |
| Netværks interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3 |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4-modus) | 1 x M.2 socket (2230 M.2 Key E-åbning) | 4 x M.2 socket (2280 M.2 Key M-åbning) |
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 5.0 -stikforbindelser: 1 x Blazing M.2 | PCIe 4.0 -stikforbindelser: 3 x Hyper M.2 |
| Interface | 1 x USB-C 3.2 Gen2x2 | 6 x USB 3.2 Gen 1 | 2 x USB 3.2 Gen 2 | 2 x USB 2.0 | 1 x LAN (2.5Gigabit Ethernet) | 2 x antenne | 1 x DisplayPort | 1 x HDMI | 1 x SPDIF-ud | 1 x audio linje-ud - mini-jack | 1 x mikrofon - mini-jack |
| Interne interfaces | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x SPI - intern stik | 1 x USB-C 3.2 Gen 1 - intern stik | 1 x audio - intern stik |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| Egenskaber | |
| BIOS-egenskaber | UEFI BIOS |
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | ASRock Auto Driver Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI, BIOS FlashBack-knap, ASRock POST Status Checker (PSC), Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal |
| Diverse | |
| Bredde | 30.5 cm |
| Dybde | 24.4 cm |
| Med software | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
| Overensstemmelsesstandarder | FCC, ErP Ready, EuP Ready |
| Udstyr inkluderet | 1 x M.2 skrue |
