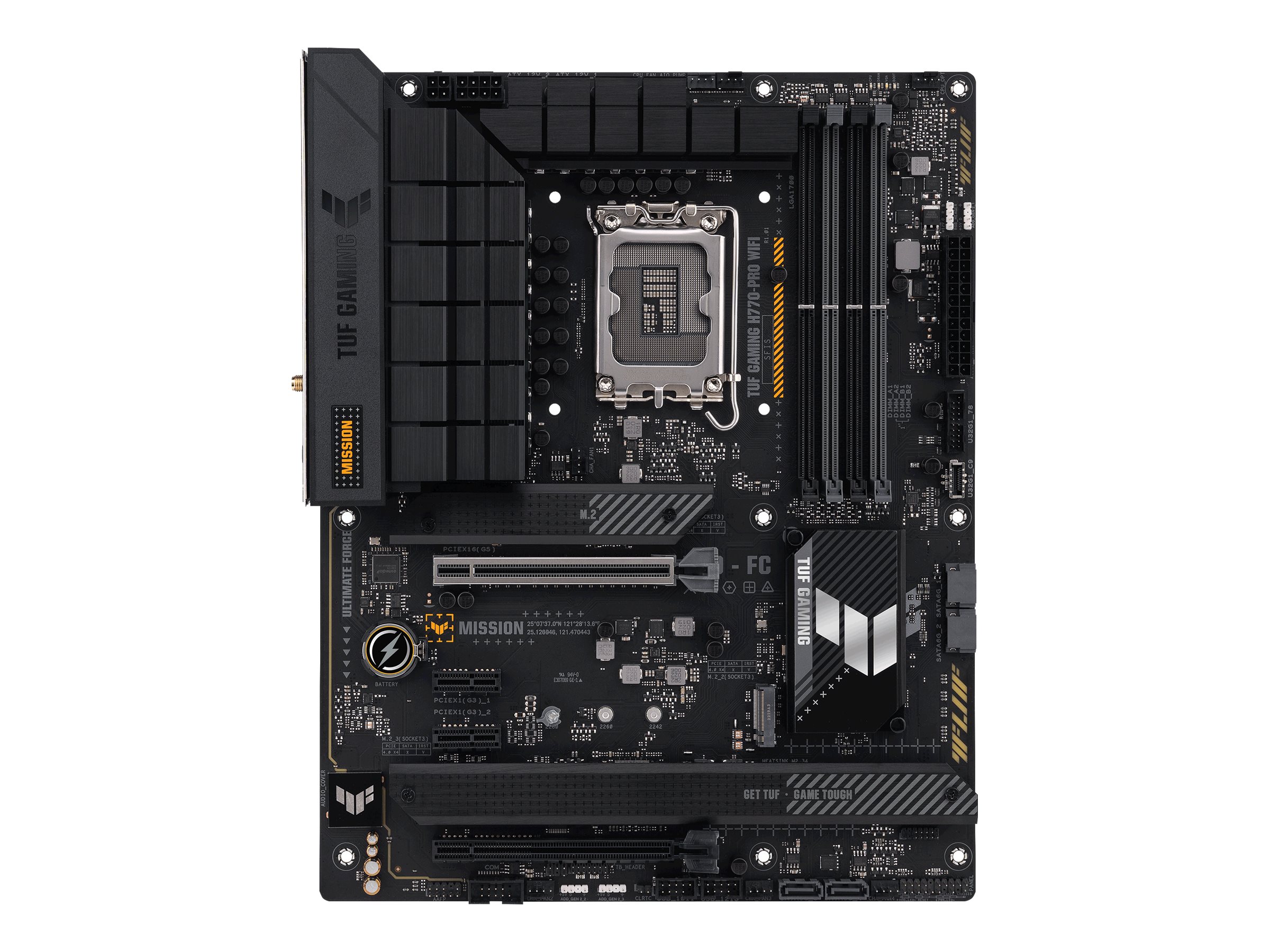

ASUS TUF GAMING H770-PRO WIFI ATX LGA1700 sokkel Intel H770

ASUS TUF GAMING H770-PRO WIFI - bundkort - ATX - LGA1700 sokkel - H770

Bundkort - ATX

Intel H770

1 x LGA1700 sokkel

(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

192 GB

4 DIMM åbninger - DDR5, ikke-ECC, on-die ECC, ikke bufferet

4 x SATA-600 (RAID), 4 x M.2

1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 USB 2.0 via samlekasser)

HD Audio (8-kanaler)

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Intel H770

(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

1

LGA1700 sokkel

Bundkort - ATX

5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

192 GB

Ikke bufferet

DDR5

Ikke-ECC, on-die ECC

High Definition Audio

HD Audio (8-kanaler)

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4-modus) | 2 x PCIe 3.0 x1 | 3 x M.2 socket (2242/2260/2280 M.2 Key M åbning) | 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 | SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

1 x DisplayPort | 1 x HDMI | 1 x USB-C 3.2 Gen2x2 | 2 x USB 3.2 Gen 2 | 4 x USB 3.2 Gen 1 | 2 x antenne | 1 x LAN (2.5Gigabit Ethernet) | 1 x mikrofon - mini-jack | 1 x audio linje-ind - mini-jack | 1 x audio linje-ud - mini-jack | 1 x audio linje-ud (centrum/subwoofer) - mini-jack | 1 x audio linje-ud (bagtil) - mini-jack | 1 x SPDIF-ud

1 x USB-C 3.2 Gen 1 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x seriel - intern stik | 1 x audio - intern stik | 1 x Thunderbolt 4 - intern stik

Intel Rapid Storage Technology

4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

AMI

Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, 6 Layer PCB, overspændingsbeskyttelse, M.2 kølelegeme, ASUS ProCool, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, 5K Black Metallic Capac

Aktivering af LAN (wake on LAN = WOL), vågn på PME

30.5 cm

24.4 cm

ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 for Gamers, DTS Audio Processing

2 x Seriel ATA kabel

DisplayPort 1.4

Boks

ASUS Wi-Fi bevægende antenne, 2 x M.2 gummipakke, 2 x M.2 SSD skruepakke, TUF-certificeringskort, TUF GAMING-mærkat
