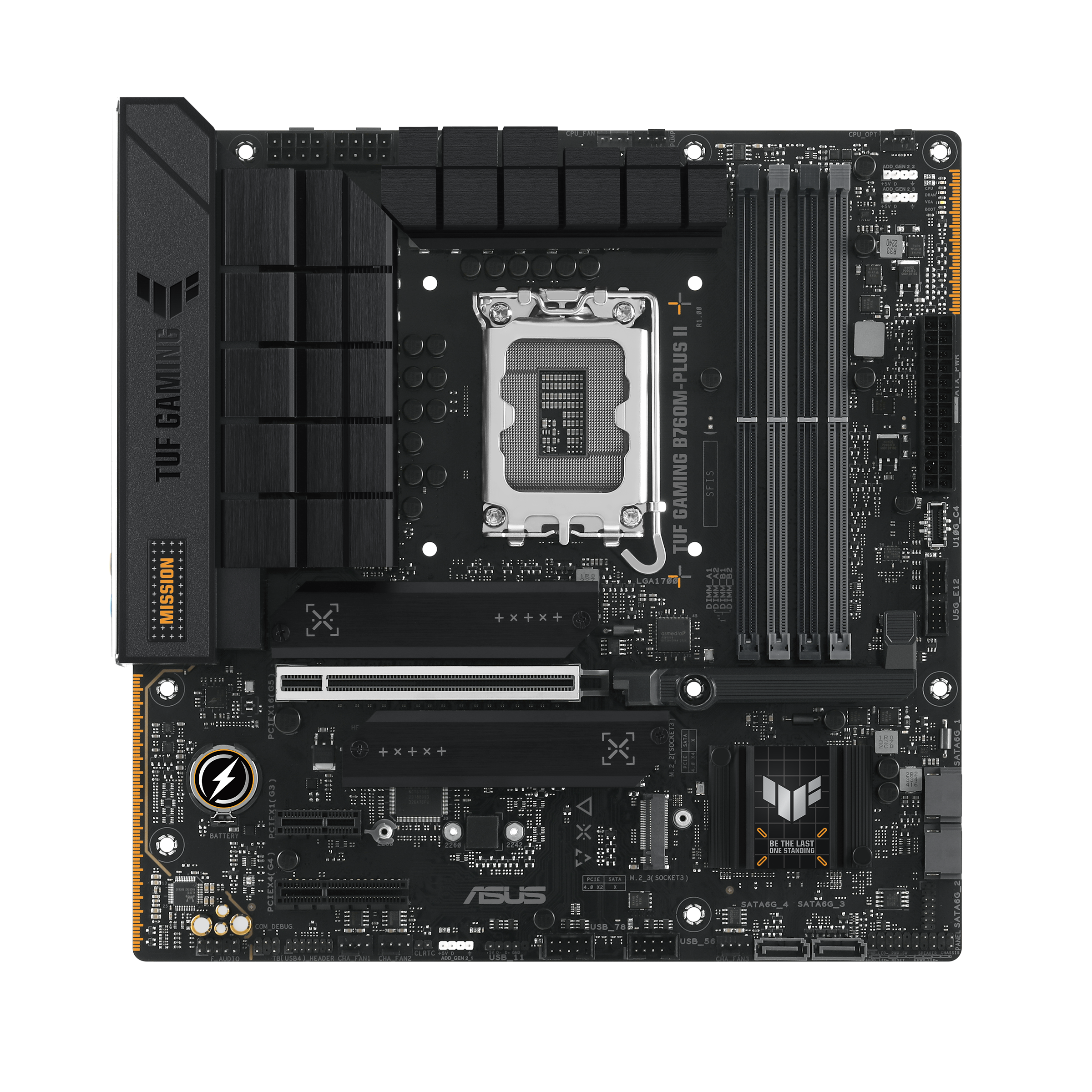

ASUS TUF GAMING B760M-PLUS II Micro-ATX LGA1700 sokkel Intel B760

ASUS TUF GAMING B760M-PLUS II - bundkort - micro ATX - LGA1700 sokkel - B760

Bundkort - micro ATX

Intel B760

1 x LGA1700 sokkel

(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)

192 GB

4 DIMM åbninger - DDR5, ikke-ECC, on-die ECC, ikke bufferet

4 x SATA-600 (RAID), 3 x M.2

1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 5 x USB 2.0 via samlekasser)

HD Audio (8-kanaler)

2.5 Gigabit Ethernet

Intel B760

(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)

1

LGA1700 sokkel

Bundkort - micro ATX

5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

192 GB

Ikke bufferet

DDR5

Ikke-ECC, on-die ECC

Digital Theater Systems (DTS), High Definition Audio

HD Audio (8-kanaler)

2.5 Gigabit Ethernet

1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x4 | 1 x PCIe 3.0 x1 | 3 x M.2 socket (2242/2260/2280 M.2 Key M åbning)

PCIe 4.0 -stikforbindelser: 3 x M.2 | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5

1 x DisplayPort | 1 x HDMI | 1 x USB-C 3.2 Gen2x2 | 1 x USB 3.2 Gen 2 | 2 x USB 3.2 Gen 1 | 4 x USB 2.0 | 1 x LAN (2.5Gigabit Ethernet) | 1 x SPDIF-ud | 1 x audio linje-ind - mini-jack | 1 x mikrofon - mini-jack | 1 x audio linje-ud/hovedtelefoner - mini-jack | 1 x audio linje-ud (bagtil) - mini-jack | 1 x audio linje-ud (centrum/subwoofer) - mini-jack

1 x USB-C 3.2 Gen 2 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 5 x USB 2.0 - intern stik | 1 x audio - intern stik | 1 x Thunderbolt - intern stik

Intel Rapid Storage Technology

24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

AMI

ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, 6 Layer PCB, TUF LANGuard, overspændingsbeskyttelse, AURA RGB Lighting Control, M.2 kølelegeme, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, SafeDIMM, CPU Socket-håndtagsbeskytter, VRM kølelegemedesign, 12+

Aktivering af LAN (wake on LAN = WOL), vågn på PME

24.4 cm

24.4 cm

ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, Armoury Crate, Norton 360 for Gamers, ASUS Fan Xpert 2+, DTS Audio Processing

2 x Seriel ATA kabel

1 x M.2 gummipakke, 2 x M.2 SSD skruepakke, TUF-certificeringskort, TUF GAMING-mærkat
