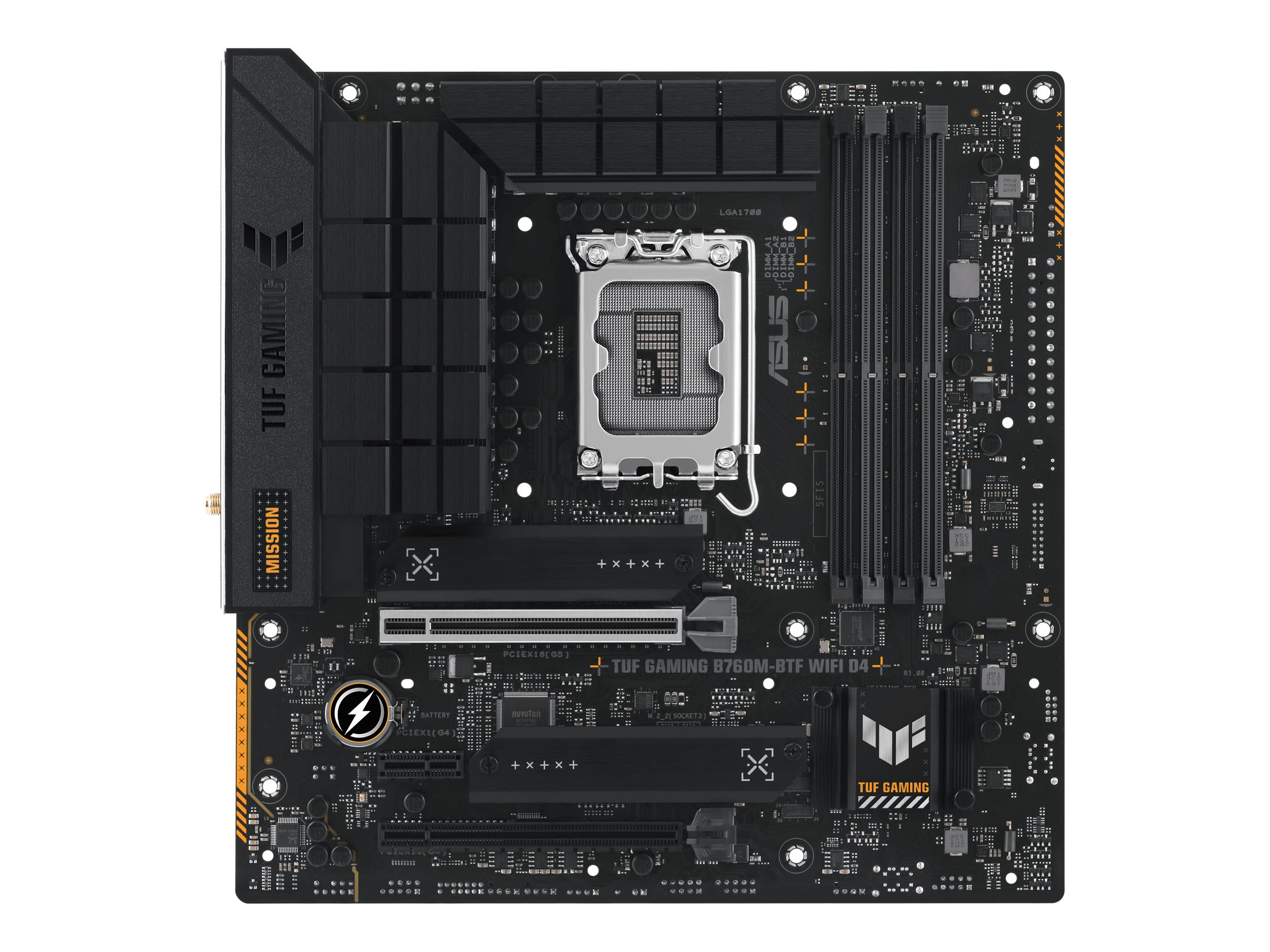

ASUS TUF GAMING B760M-BTF WIFI D4 Micro-ATX LGA1700 sokkel Intel B760

ASUS TUF GAMING B760M-BTF WIFI D4 - bundkort - micro ATX - LGA1700 sokkel - B760

Bundkort - micro ATX

Intel B760

1 x LGA1700 sokkel

(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

128 GB

4 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet

4 x SATA-600 (RAID), 3 x M.2

1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)

High Definition Audio (7.1-kanal)

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Intel B760

(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

1

LGA1700 sokkel

Bundkort - micro ATX

2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.)

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

128 GB

Ikke bufferet

DDR4

Ikke-ECC

High Definition Audio

High Definition Audio (7.1-kanal)

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4-modus) | 1 x PCIe 4.0 x1 | 1 x M.2 socket (2280 M.2 Key M-åbning) | 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

1 x HDMI | 1 x DisplayPort | 1 x antenne | 1 x LAN (2.5Gigabit Ethernet) | 1 x audio linje-ud - mini-jack | 1 x audio linje-ud - mini-jack | 1 x mikrofon - mini-jack | 1 x USB-C 3.2 Gen2x2 | 1 x USB-C 3.2 Gen 2 | 1 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Gen 1 | 2 x USB 3.2 Gen 1 | 4 x USB 2.0

4 x USB 2.0 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 1 x USB-C 3.2 Gen 2 - intern stik | 1 x Thunderbolt - intern stik

4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

AMI

Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, TUF LANGuard, ASUS Overvoltage Protection, ASUS SafeDIMM, ASUS ProCool, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, Q-LED Core, CPU Socket-håndtagsbe

Aktivering af LAN (wake on LAN = WOL), vågn på PME

24.4 cm

24.4 cm

ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, Norton 360 Deluxe (60 dages prøvetid), DTS Audio Processing

2 x Seriel ATA kabel

ASUS Wi-Fi bevægende antenne, 1 x M.2 gummipakke, TUF GAMING-mærkat, M.2 SSD-skruepakke
