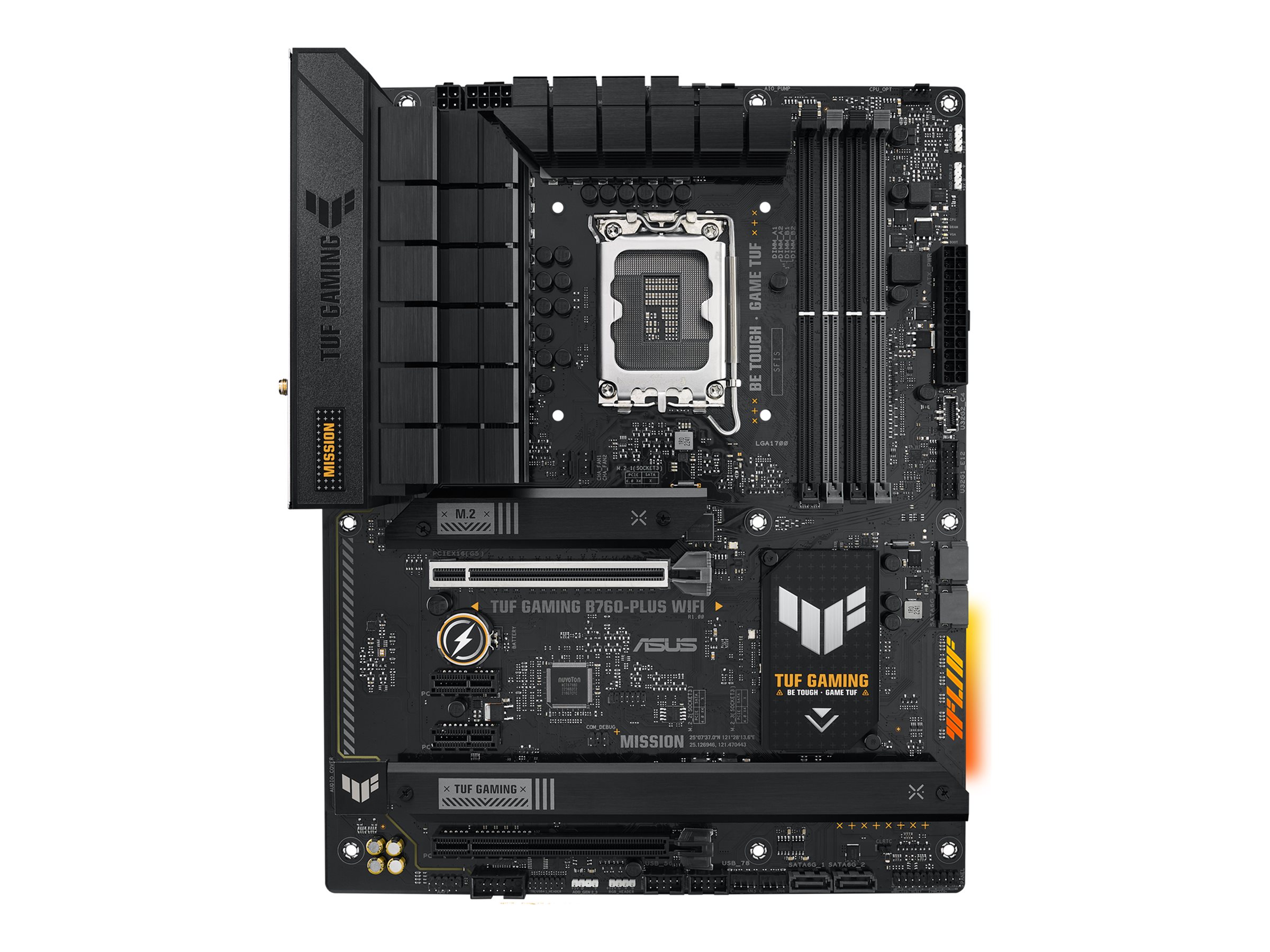

ASUS TUF GAMING B760-PLUS WIFI ATX LGA1700 sokkel Intel B760

ASUS TUF GAMING B760-PLUS WIFI - bundkort - ATX - LGA1700 sokkel - B760

Bundkort - ATX

Intel B760

1 x LGA1700 sokkel

(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

192 GB

4 DIMM åbninger ikke-ECC, on-die ECC, ikke bufferet

4 x SATA-600 (RAID), 3 x M.2

1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 1 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)

HD Audio (8-kanaler)

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Intel B760

(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

1

LGA1700 sokkel

Bundkort - ATX

5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

192 GB

Ikke bufferet

Ikke-ECC, on-die ECC

Digital Theater Systems (DTS), High Definition Audio

HD Audio (8-kanaler)

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 3.0 x16 (x4-modus) | 2 x PCIe 3.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning) | 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning) | 1 x PCIe 5.0 x16

PCIe 4.0 -stikforbindelser: 3 x M.2 | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5

1 x DisplayPort | 1 x HDMI | 1 x USB-C 3.2 Gen2x2 | 1 x USB 3.2 Gen 2 | 3 x USB 3.2 Gen 1 | 1 x USB 2.0 | 1 x LAN (2.5Gigabit Ethernet) | 2 x antenne | 1 x SPDIF-ud | 1 x audio linje-ind - mini-jack | 1 x mikrofon - mini-jack | 1 x audio linje-ud/hovedtelefoner - mini-jack | 1 x audio linje-ud (bagtil) - mini-jack | 1 x audio linje-ud (centrum/subwoofer) - mini-jack

1 x USB-C 3.2 Gen 2 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x audio - intern stik | 1 x Thunderbolt - intern stik | 1 x seriel - intern stik

Intel Rapid Storage Technology

4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

AMI

ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, 6 Layer PCB, TUF LANGuard, overspændingsbeskyttelse, AURA RGB Lighting Control, ASUS SafeDIMM, M.2 kølelegeme, ASUS ProCool, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, CPU Socket-håndtagsbeskytter, VRM kølelegemedesign, 12+1 DrMOS

Aktivering af LAN (wake on LAN = WOL), vågn på PME

30.5 cm

24.4 cm

ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 for Gamers, DTS Audio Processing

2 x Seriel ATA kabel

ASUS Wi-Fi bevægende antenne, 2 x M.2 gummipakke, M.2 skruepakke, TUF-certificeringskort, TUF GAMING-mærkat
