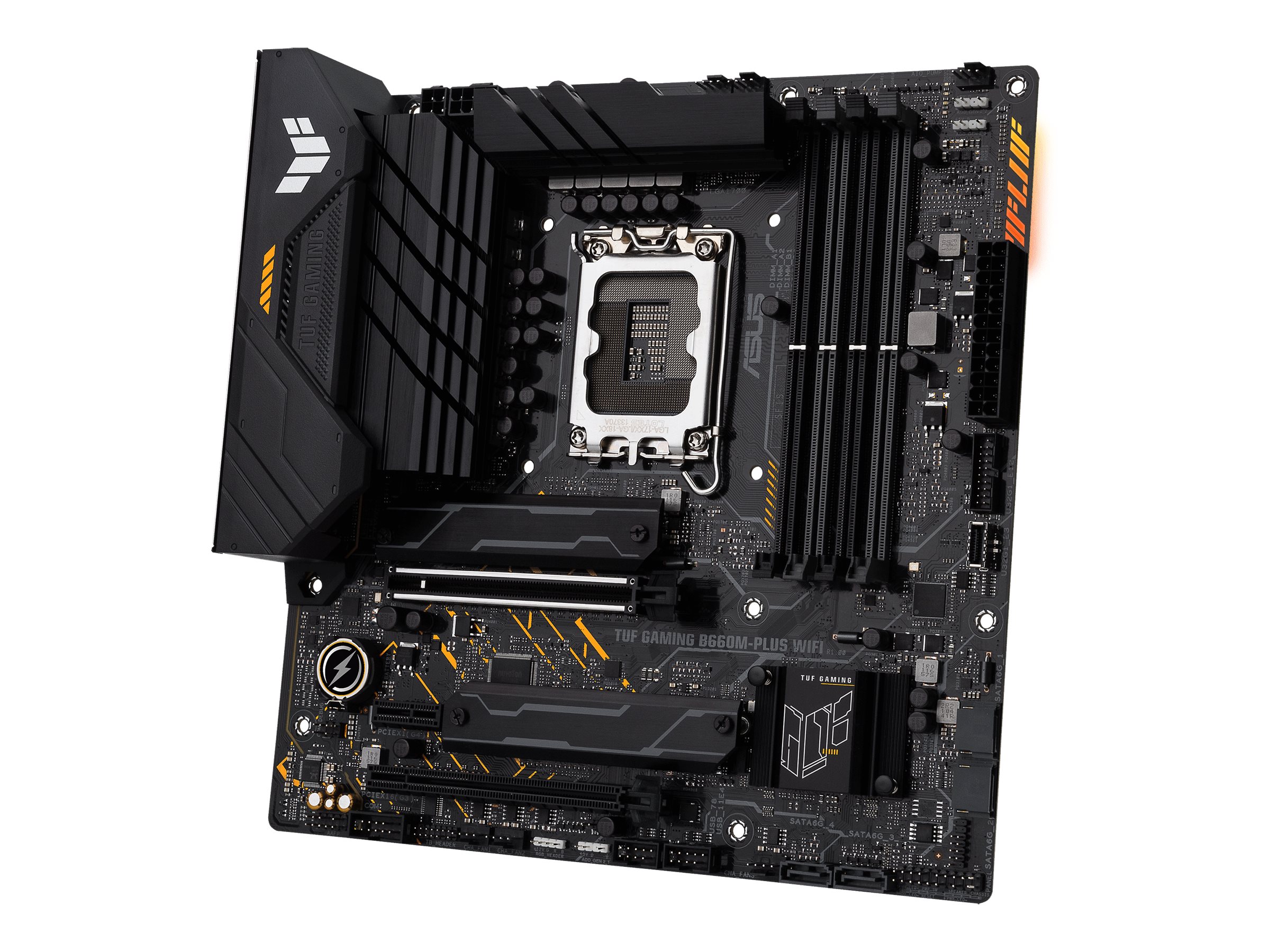

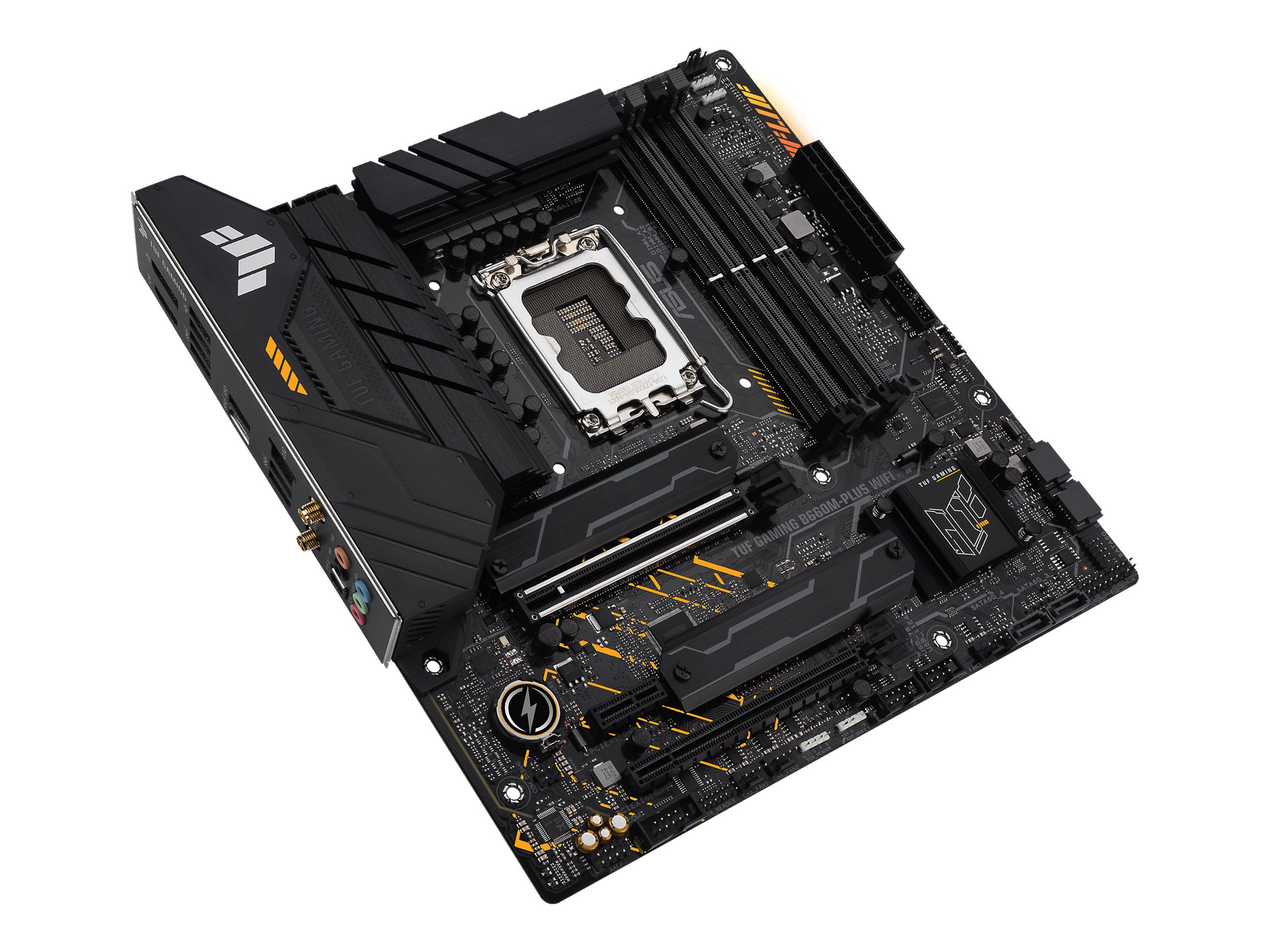

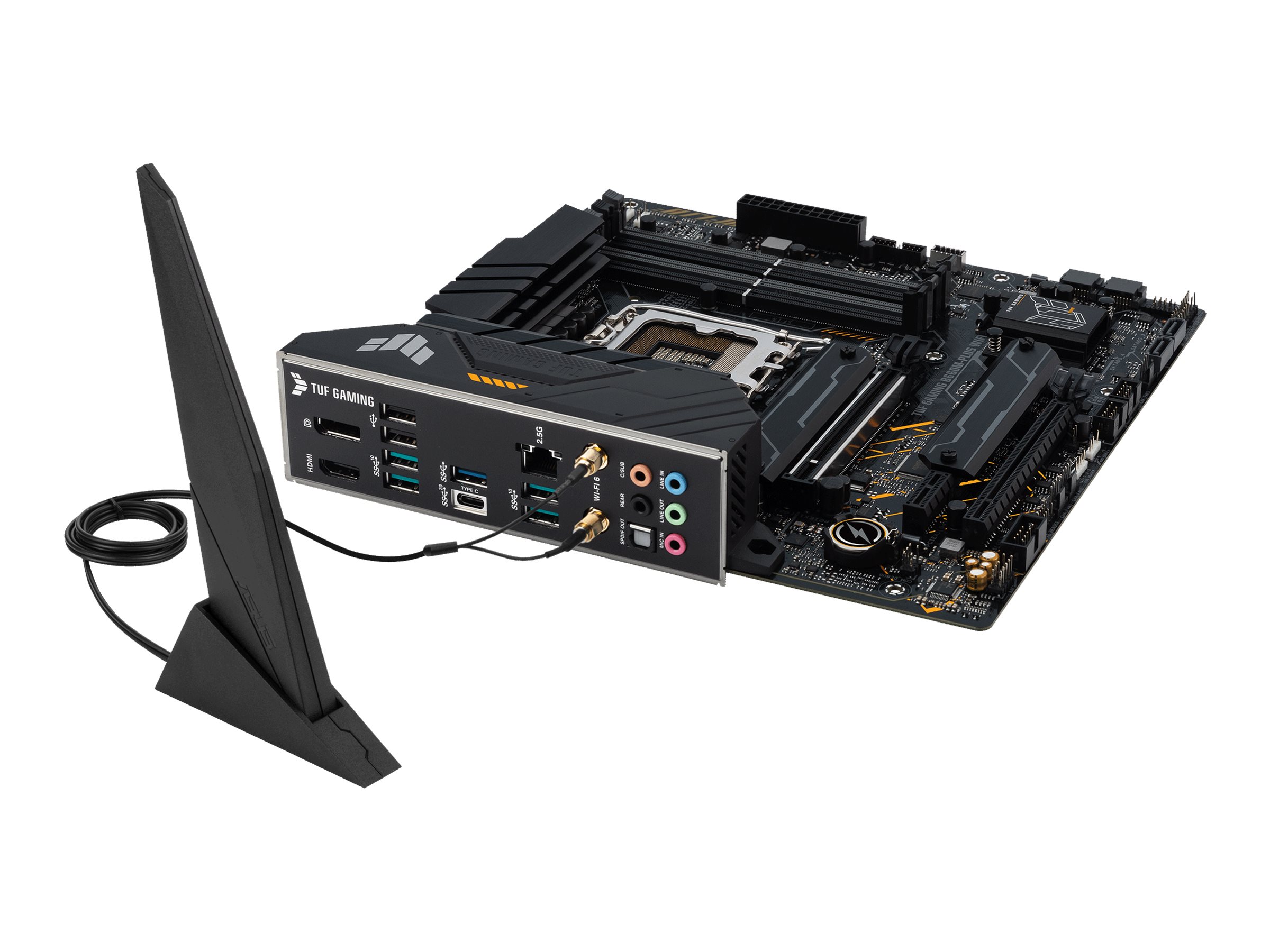

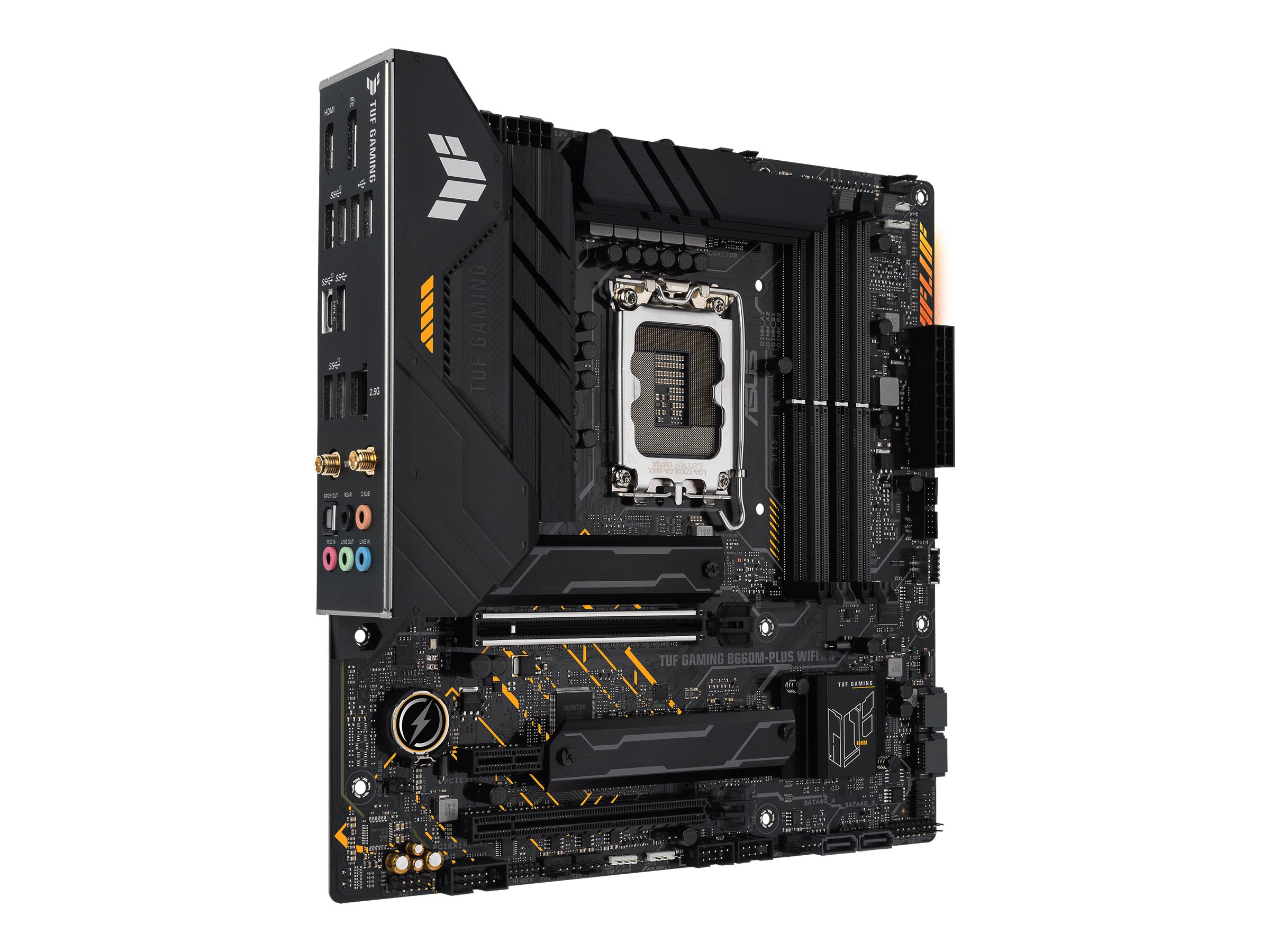

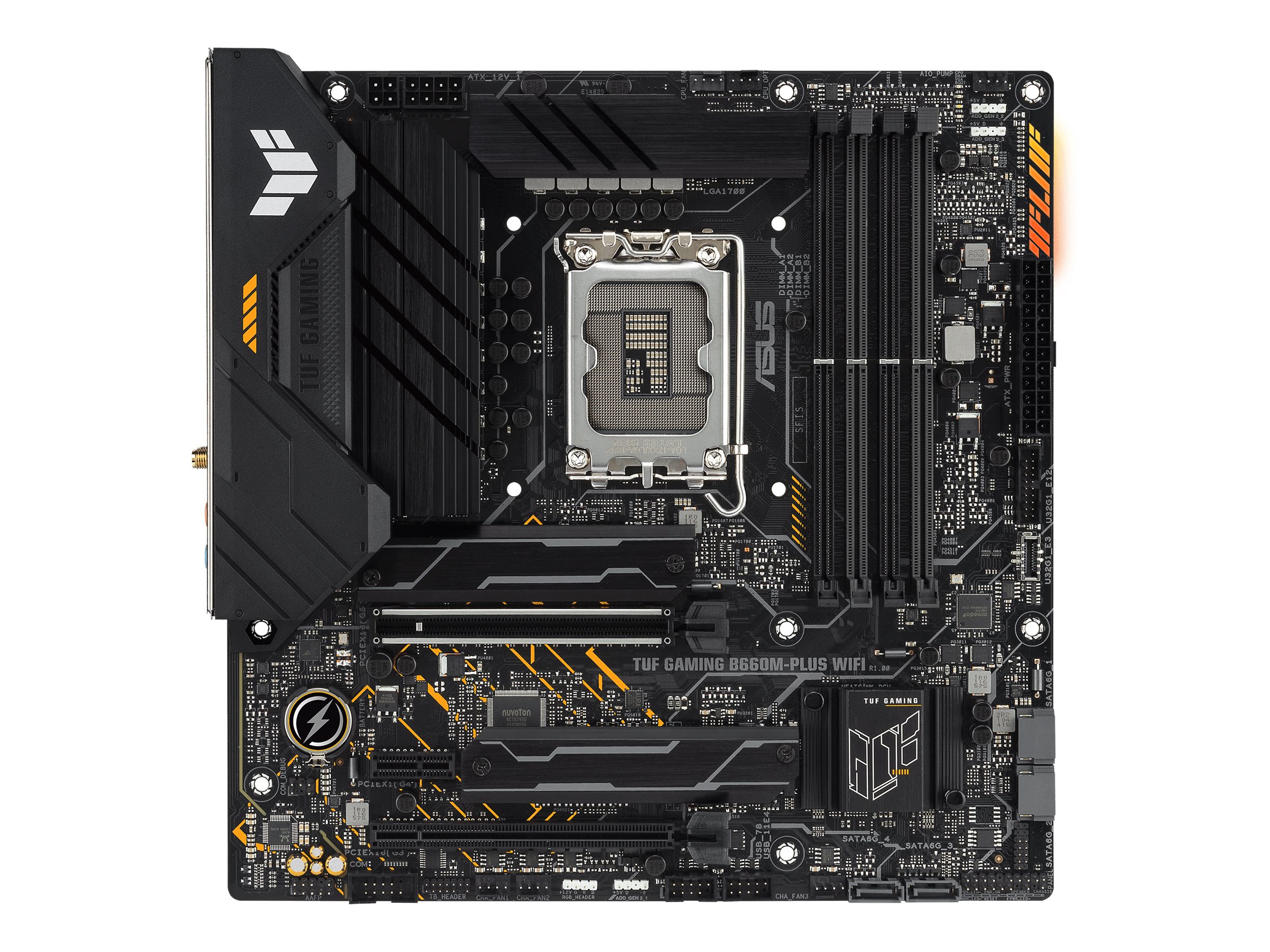

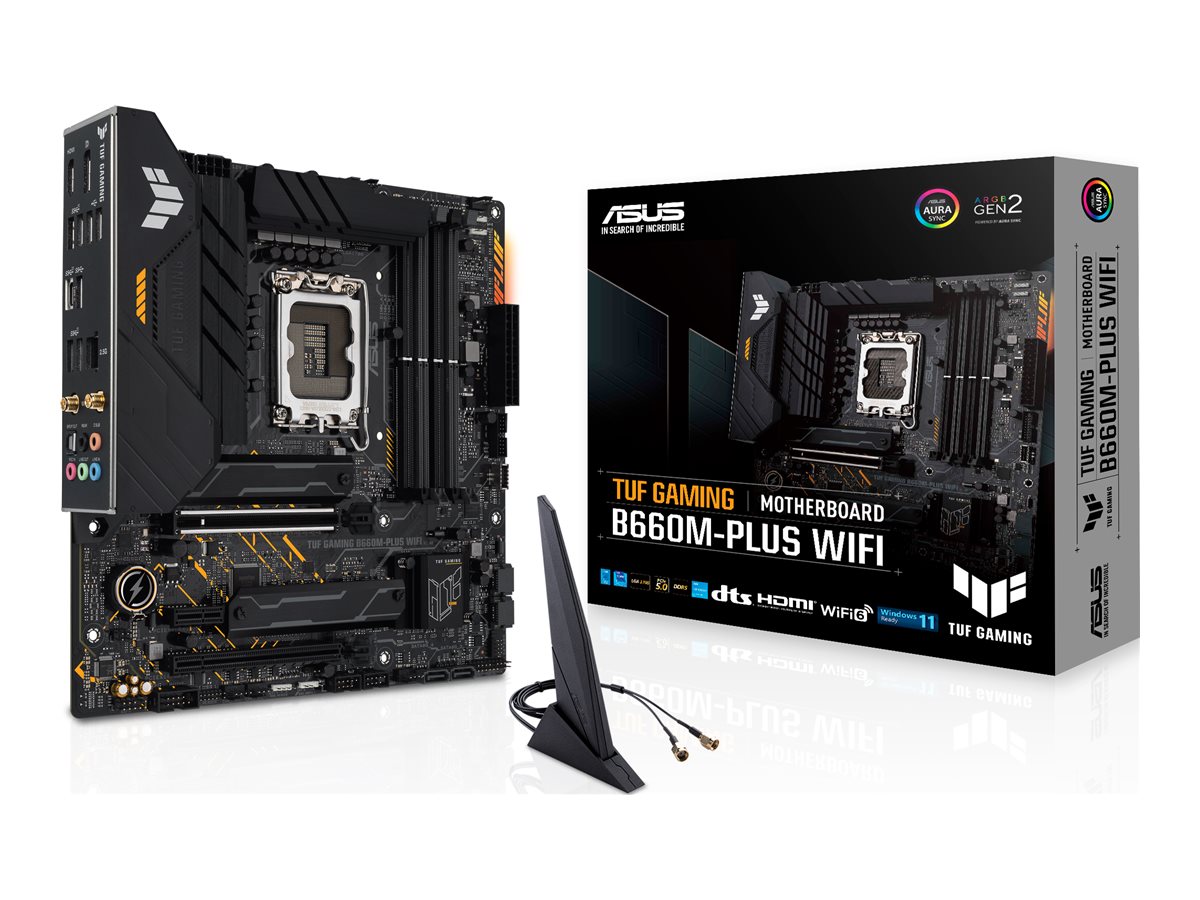

ASUS TUF GAMING B660M-PLUS WIFI Micro-ATX LGA1700 sokkel Intel B660

ASUS TUF GAMING B660M-PLUS WIFI - bundkort - micro ATX - LGA1700 sokkel - B660

Bundkort - micro ATX

Intel B660

1 x LGA1700 sokkel

(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

192 GB

4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet

4 x SATA-600 (RAID), 2 x M.2

1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)

HD Audio (8-kanaler)

2.5 Gigabit Ethernet

3 års garanti

Intel B660

(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

1

LGA1700 sokkel

Bundkort - micro ATX

5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

192 GB

Ikke bufferet

DDR5

Ikke-ECC

High Definition Audio, DTS Sound

HD Audio (8-kanaler)

2.5 Gigabit Ethernet

1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 3.0 x16 (x4-modus) | 1 x PCIe 4.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -stikforbindelser: 2 x M.2

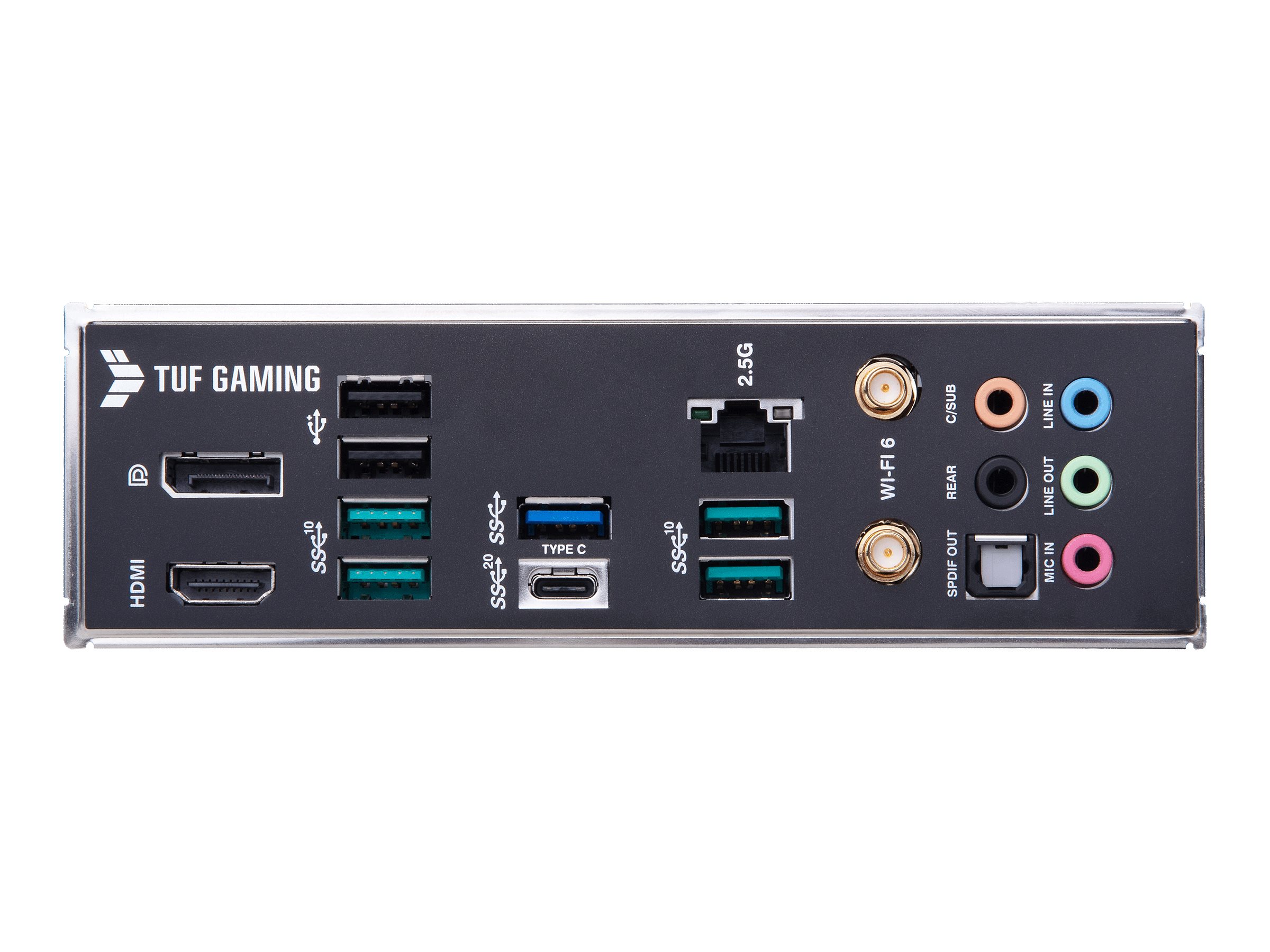

1 x HDMI | 1 x DisplayPort | 1 x USB-C Gen2x2 | 4 x USB 3.2 Gen 2 | 1 x USB 3.2 Gen 1 | 2 x USB 2.0 | 2 x antenne | 1 x LAN (2.5Gigabit Ethernet) | 1 x SPDIF-ud | 1 x audio linje-ind - mini-jack | 1 x audio linje-ud - mini-jack | 1 x mikrofon - mini-jack | 1 x audio linje-ud (bagtil) - mini-jack | 1 x audio linje-ud (centrum/subwoofer) - mini-jack

1 x USB-C 3.2 Gen 1 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x seriel - intern stik | 1 x audio - intern stik | 1 x Thunderbolt - intern stik

Intel Rapid Storage Technology

4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

AMI

ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, 6 Layer PCB, TUF LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS SafeSlot, ASUS SafeDIMM, ASUS ProCool, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, 10+1 DrMOS strømstadier, M.2 Q-Latch, CPU Socket-håndtags

Aktivering af LAN (wake on LAN = WOL), vågn på PME

24.4 cm

24.4 cm

ASUS TurboV EVO Utility, ASUS AI Suite III, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 2+, DTS Audio Processing

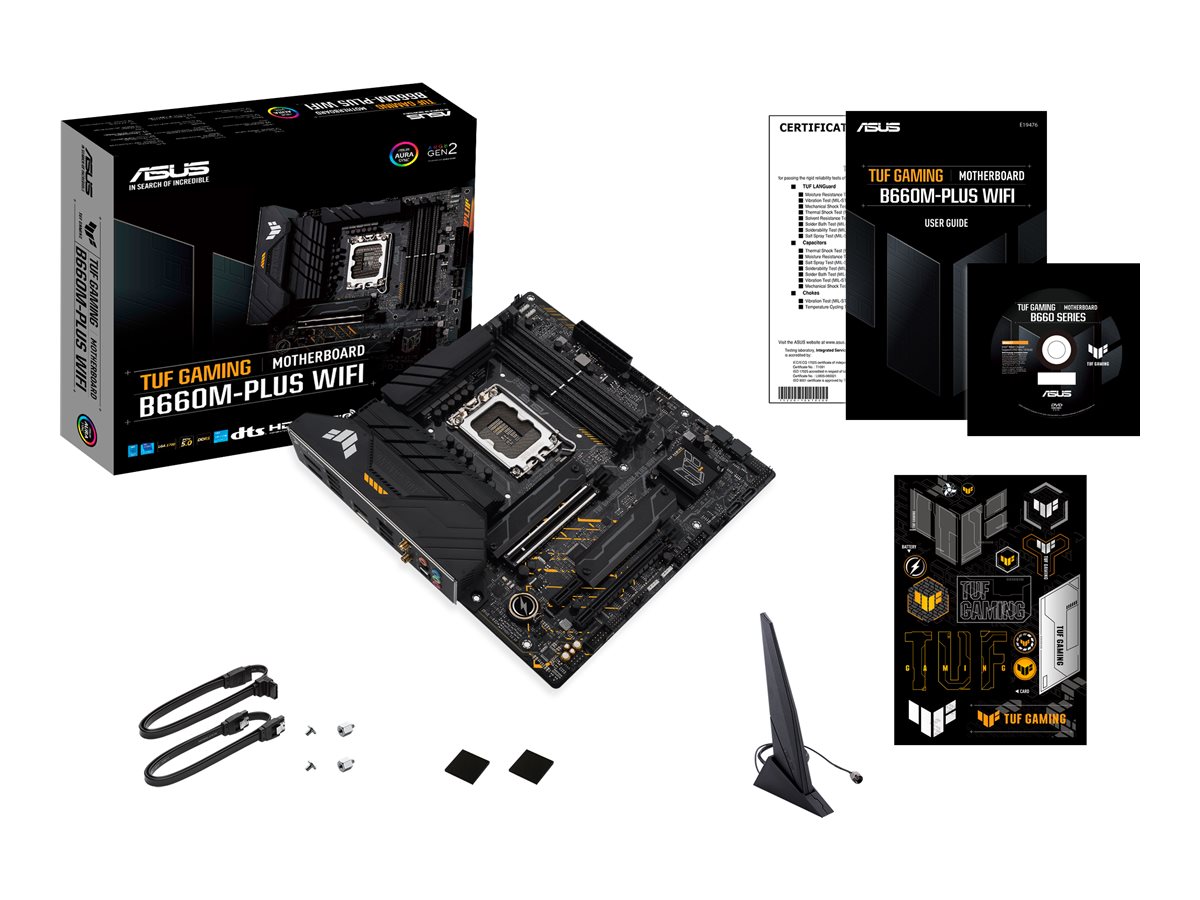

2 x Seriel ATA kabel

DisplayPort 1.4

1 x M.2 skrue, TUF-mærkater, ASUS Wi-Fi bevægende antenne, 1 x M.2 gummipakke, TUF-certificeringskort

Begrænset garanti - 3 år
