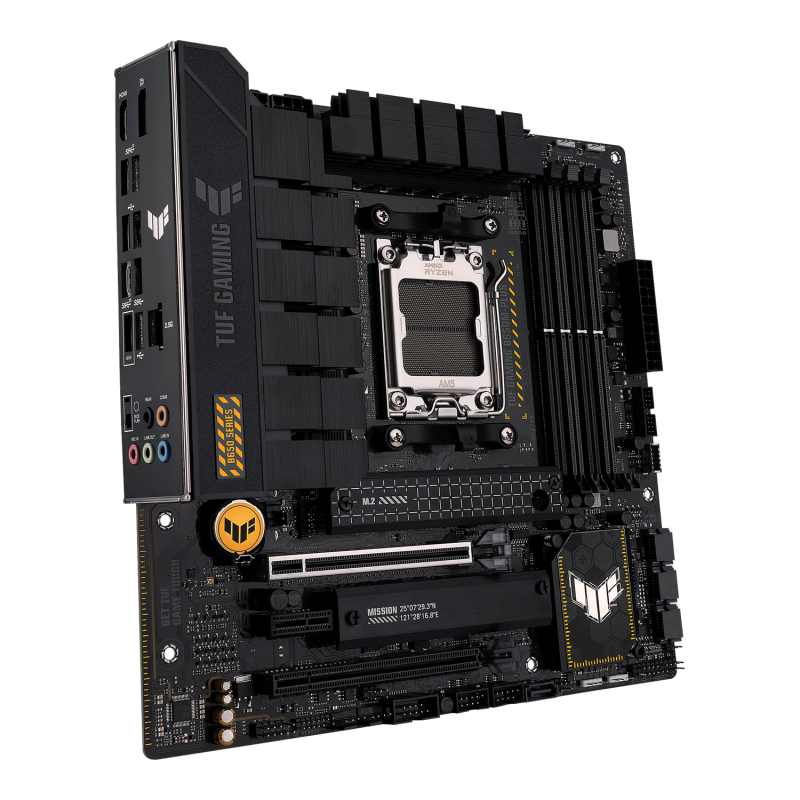

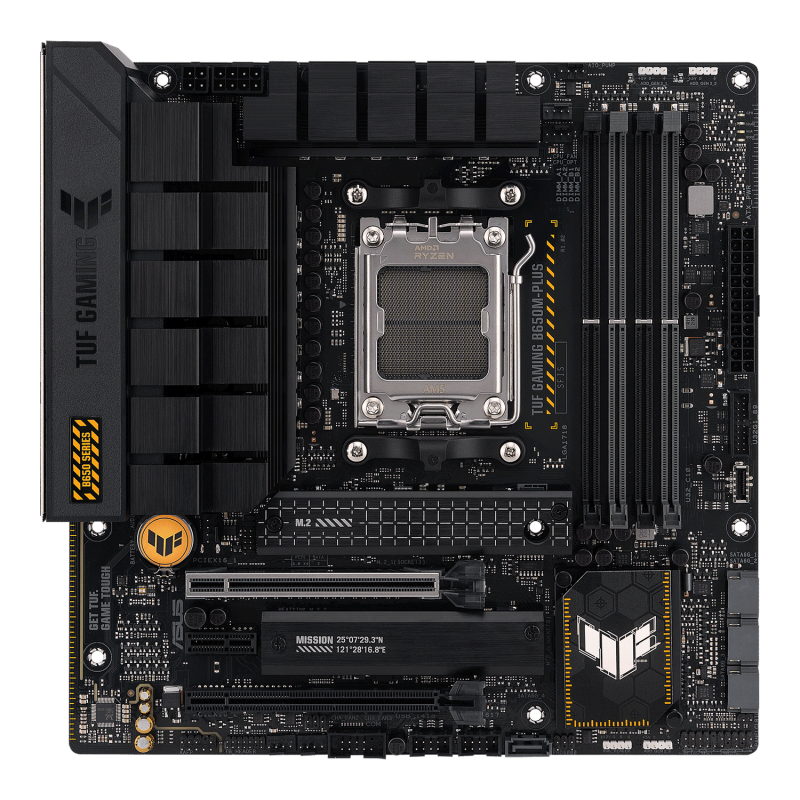

Asus TUF Gaming B650M-Plus Micro-ATX - DDR5

AM5

AMD B650

128GB, DDR5, Ikke bufferet

6400MHz+ (OC), 6200MHz (OC), 6000MHz (OC), 5800MHz (OC), 5600MHz (OC), 5400MHz (OC), 5200MHz, 5000MHz, 4800MHz

Micro-ATX

1x Realtek 2.5Gb Ethernet

Realtek 7.1 Surround Sound High Definition Audio

1x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 2x USB 3.2 Gen 2 ports (2 x Type-A), 1x USB 3.2 Gen 1 port (1 x Type-A), 4x USB 2.0 ports (4 x Type-A), 1x DisplayPort, 1x HDMI®port, 1x Realtek 2.5Gb Ethernet port, 5x Audio jacks, 1x BIOS FlashBack™ button

Windows 10/11 64-bit

AMD B650

Ryzen (understøtter Ryzen 7000 Series)

1

Socket AM5

Bundkort - micro ATX

5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5000 MHz

Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi

128 GB

Ikke bufferet

DDR5

Ikke-ECC, on-die ECC

High Definition Audio

HD Audio (8-kanaler)

2.5 Gigabit Ethernet

1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4-modus) | 1 x PCIe 4.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen2x2 | 2 x USB 3.2 Gen 2 | 1 x USB 3.2 Gen 1 | 4 x USB 2.0 | 2 x antenne | 1 x audio linje-ind - mini-jack | 1 x audio linje-ud - mini-jack | 1 x mikrofon - mini-jack | 1 x audio linje-ud (centrum/subwoofer) - mini-jack | 1 x audio linje-ud (bagtil) - mini-jack | 1 x LAN (2.5Gigabit Ethernet)

1 x USB-C 3.2 Gen 1 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x audio - intern stik | 1 x Thunderbolt - intern stik | 1 x seriel - intern stik

4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

UEFI BIOS, ASUS EZ Flash 3

AMI

Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, TUF LANGuard, TUF Components, overspændingsbeskyttelse, ASUS SafeDIMM, M.2 kølelegeme, ASUS ProCool, Water Pump Header, præmonteret I/O-skjold, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, VRM kølelegemedesign, BIOS FlashBack-knap, BIOS F

24.4 cm

24.4 cm

ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 2+

2 x Seriel ATA kabel

VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH

2 x M.2 gummipakke, M.2 skruepakke, TUF-certificeringskort

Begrænset garanti - 1 år
