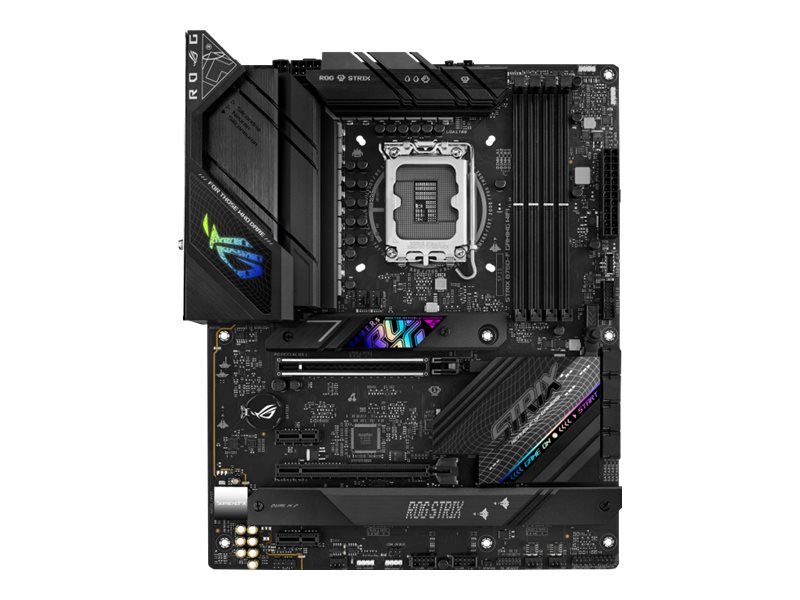

ASUS ROG STRIX B760-F GAMING WIFI ATX LGA1700 sokkel Intel B760

ASUS ROG STRIX B760-F GAMING WIFI - bundkort - ATX - LGA1700 sokkel - B760

Bundkort - ATX

Intel B760

1 x LGA1700 sokkel

(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

192 GB

4 DIMM åbninger - DDR5, ikke-ECC, on-die ECC, ikke bufferet

4 x SATA-600 (RAID), 3 x M.2

1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + (1 x USB4 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)

HD Audio (8-kanaler)

2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

Intel B760

(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

1

LGA1700 sokkel

Bundkort - ATX

5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7800 MHz (O.C.)

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

192 GB

Ikke bufferet

DDR5

Ikke-ECC, on-die ECC

SupremeFX (ALC4080)

High Definition Audio, DTS Sound Unbound

HD Audio (8-kanaler)

2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 3.0 x16 (x4-modus) | 2 x PCIe 3.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning) | 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -stikforbindelser: 3 x M.2

1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen2x2 | 1 x USB 3.2 Gen 2 | 6 x USB 3.2 Gen 1 | 2 x antenne | 1 x LAN (2.5Gigabit Ethernet) | 1 x mikrofon - mini-jack | 1 x audio linje-ud (centrum/subwoofer) - mini-jack | 1 x audio linje-ud (bagtil) - mini-jack | 1 x audio linje-ind - mini-jack | 1 x audio linje-ud - mini-jack | 1 x SPDIF-ud

1 x USB 3.2 Gen 2 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x audio - intern stik | 1 x Thunderbolt - intern stik

Intel Rapid Storage Technology

4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

UEFI BIOS, ASUS EZ Flash 3, MemTest86, ASUS UEFI BIOS EZ Mode

AMI

Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detektions teknologi, Intel Turbo Boost Technology 2.0, SupremeFX Shielding teknologi, Clear CMOS Button, LANGuard, 6 Layer PCB, ASUS SafeSlot, M.2 kølelegeme, ASUS ProCool, Water Pump Header, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, 16+1 Phase Power Design, Savitech SV3H712 forstærker, M.2 Q-Latch, 5K Black Metallic Capa

Aktivering af LAN (wake on LAN = WOL), vågn på PME

30.5 cm

24.4 cm

ROG CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 dages prøvetid), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4, Norton 360 for Gamers

2 x Seriel ATA kabel

DisplayPort 1.4

Kabelbånd, STRIX-mærkater, ROG-takkekort, termisk pude til M.2 SSD, ROG-nøglekæde, ASUS Wi-Fi bevægende antenne, M.2 Q-Latch, 2 x M.2 gummipakke
