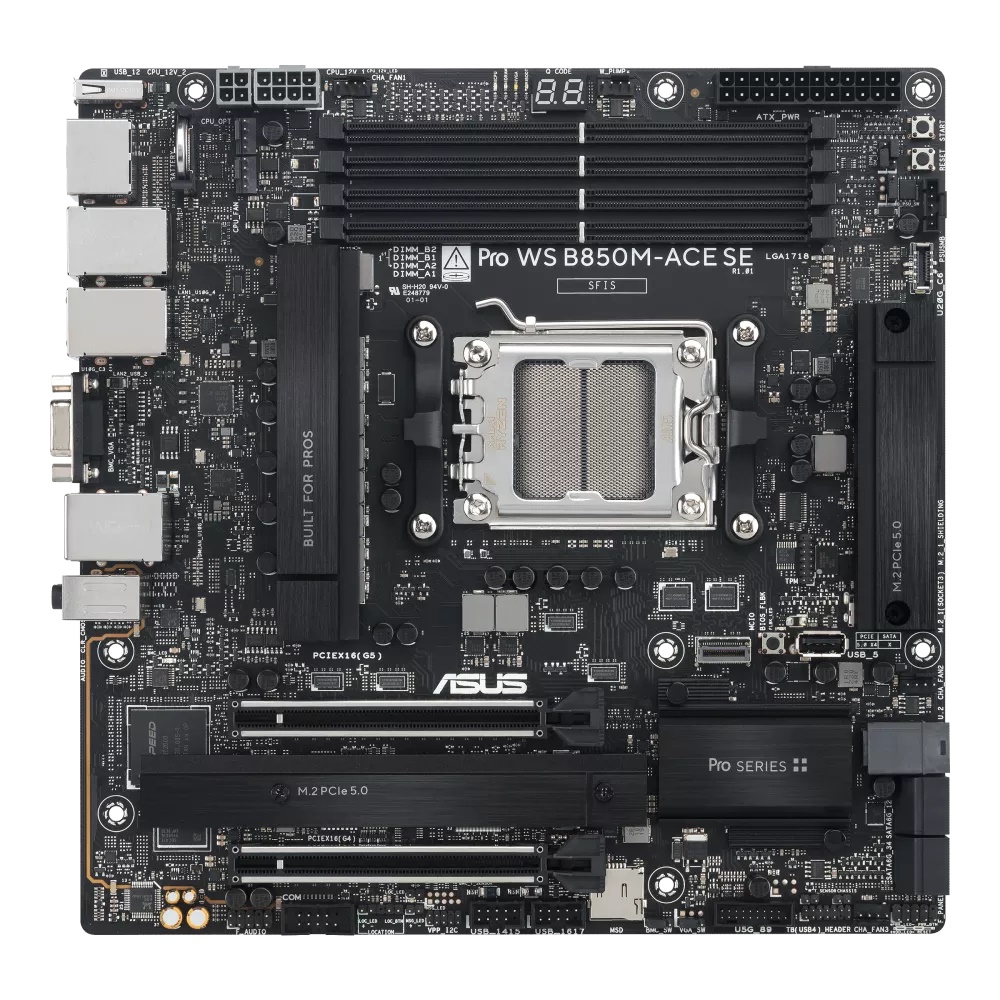

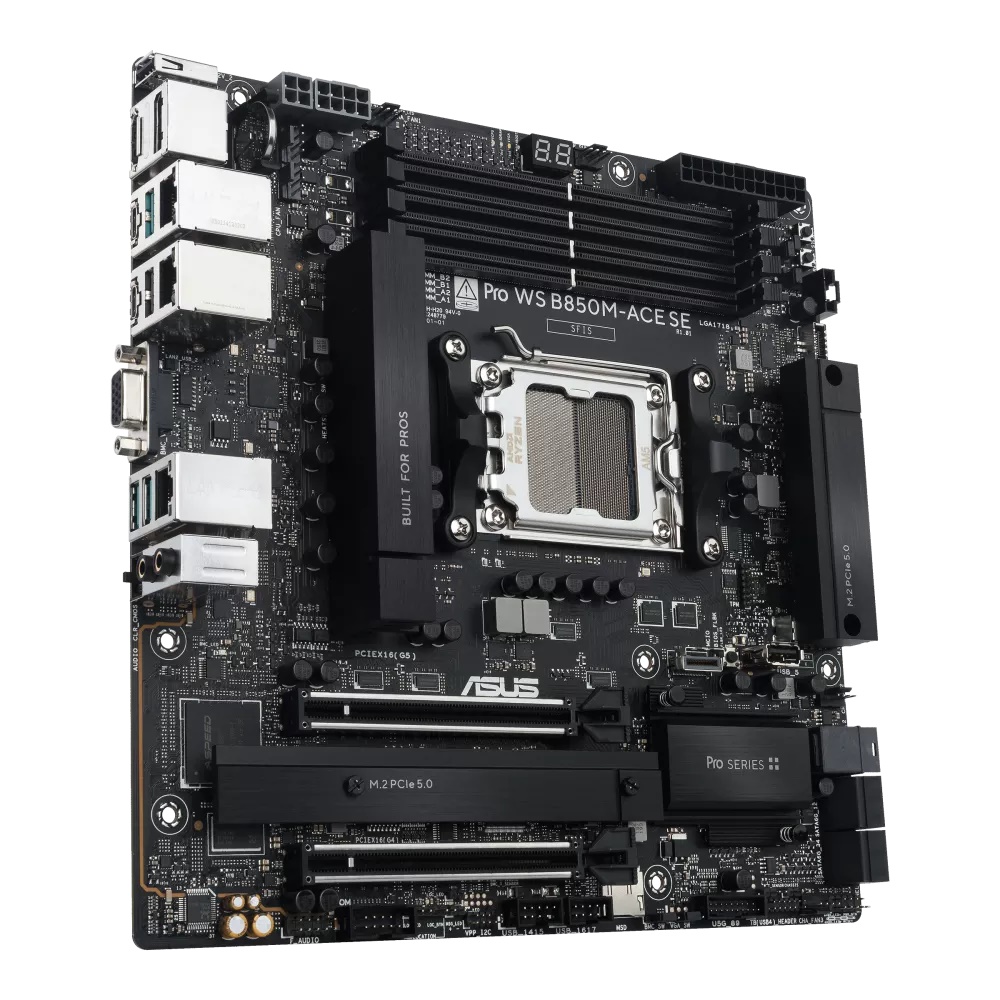

ASUS Pro WS B850M-ACE SE mATX AM5

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors

AMD B850 Chipset

4x DIMM slots, max. 256GB, DDR5 (Dual channel)

1x DisplayPort 1.4, 1x VGA port from AST2600, 1x HDMI 2.1, 1x USB 10Gbps port (USB Type-C®) supports DisplayPort video output

1x PCIe 5.0 x16 slot (supports x16 mode), 1x PCIe 4.0 x16 slot (supports x8/x4 mode), 1x PCIe 4.0 x16 slot (supports x4 mode)

2x M.2 slots, 1x MCIO connector, 1x U.2 connector and 4x SATA 6Gb/s ports

1x Realtek 10Gb Ethernet, 1x Intel® 2.5Gb Ethernet, 1x Realtek 1Gb Ethernet

5x USB 10Gbps port(s) (3 x Type-A + 2 x USB Type-C®), 2x USB 2.0 port(s) (2 x Type-A)

1x USB 20Gbps (supports USB Type-C®), 1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports, 2x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports, 1x USB 2.0 port (1 x Type-A) for BIOS FlashBack

Realtek 7.1 Surround Sound High Definition Audio CODEC

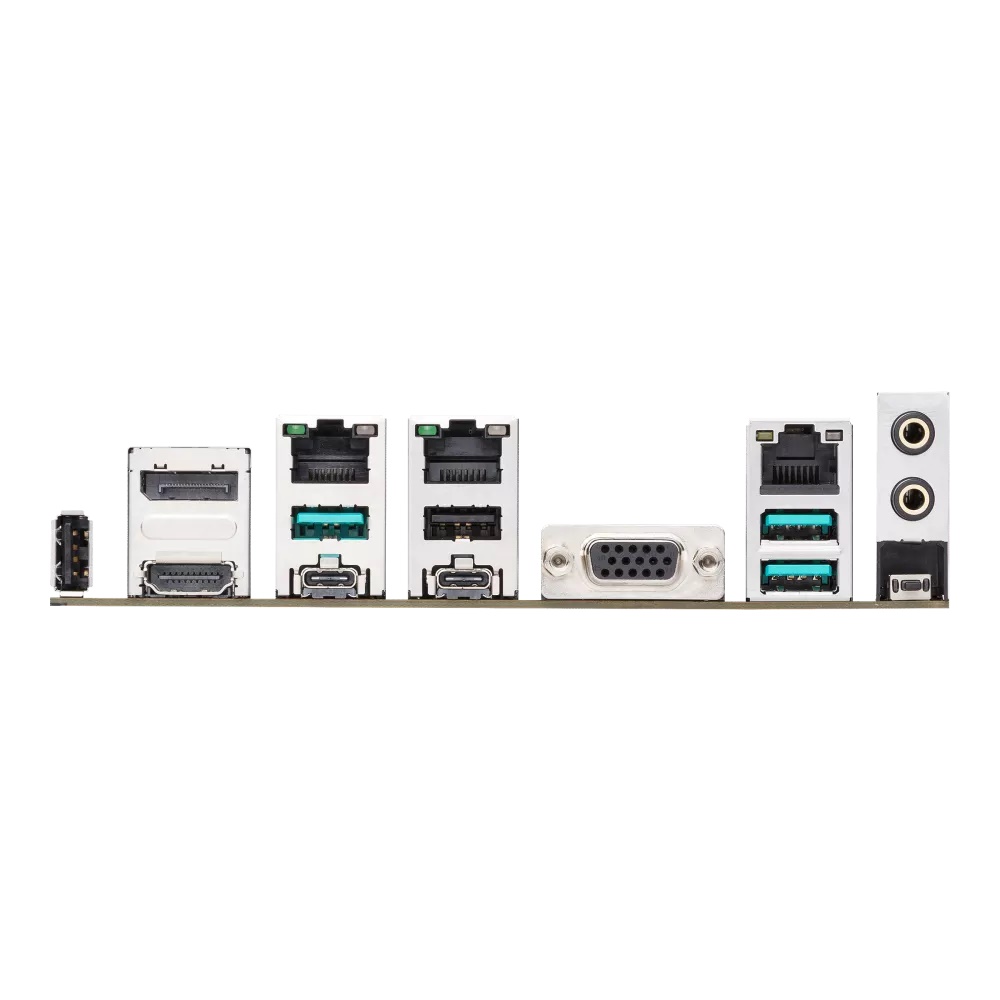

3x USB 10Gbps port(s) (3 x Type-A), 1x USB 10Gbps port(s) (USB Type-C®), 1x USB 10Gbps port(s) (USB Type-C®) supports DisplayPort video output, 2x USB 2.0 port(s) (2 x Type-A), 1x DisplayPort, 1x VGA port, 1x HDMI™ port, 1x Realtek 10Gb Ethernet port, 1x Intel® 2.5Gb Ethernet ports, 1x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600), 2x Audio jacks

512 Mb Flash ROM, UEFI AMI BIOS(text-based)

2x SATA 6Gb/s cables, 1x I/O shield, 1x Q-connector, 1x M.2 rubber package(s), 1x ACC Express activation key card, 1x Quick start guide

micro-ATX Form Factor (24.4 cm x 24.4 cm)

Yes - BMC AST2600

AMD B850

(understøtter Ryzen 7000/8000/9000 Series/AMD EPYC 4005 Series)

1

Socket AM5

Bundkort - micro ATX

5600 MT/s

Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi

256 GB

Ikke bufferet

DDR5

ECC, on-die ECC, ikke-ECC

ASPEED AST2600

High Definition Audio

HD Audio (8-kanaler)

10 Gigabit Ethernet

1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4-modus) | 2 x M.2 socket (2280 M.2 Key M-åbning) | 1 x microSD

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 5.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 3.0 -stikforbindelser: 1 x U.2 | PCIe 5.0 -stikforbindelser: 1 x MCIO

3 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Gen 2 | 1 x USB-C 3.2 Gen 2/DisplayPort | 2 x USB 2.0 | 1 x DisplayPort | 1 x VGA | 1 x HDMI | 1 x LAN (10Gigabit Ethernet) | 1 x LAN (2.5Gigabit Ethernet) | 1 x LAN (Gigabit Ethernet)/styring | 1 x mikrofon - mini-jack | 1 x audio linje-ud - mini-jack

1 x USB 2.0 - Type A | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x USB-C 3.2 Gen 2x2 - intern stik | 1 x audio - intern stik | 1 x seriel - intern stik | 1 x SPI - intern stik | 1 x Thunderbolt 4 - intern stik

AMD RAID Xpert2 Technology

24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

AMI

Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, Clear CMOS Button, reset knap, Start-knap, BIOS FlashBack-knap, ASUS 5X Protection III, ESD Guards, ASUS DIGI+ VRM, ASUS Overvoltage Protection, aluminiumkølelegemedesign, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, BIOS FlashBack LED, M.2 kølelegeme, M.2 Q-Latch, overstrømsbeskyttelse, Q-Code, Q-Connector, Q-LED, Q-Slot, 8+2+1 Phase Power Design, 8 Layer PCB

Aktivering af LAN (wake on LAN = WOL), vågn på PME

24.4 cm

24.4 cm

Adobe Creative Cloud (gratis prøve), Armoury Crate, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 4, Norton 360 Deluxe (60 dages prøvetid), TurboV Core, WinRAR (40 days trial), ASUS Control Center Express

2 x Seriel ATA kabel

IO-skjold, Q-Connector, 1 x M.2 gummipakke, ACC Express Activation Key Card
