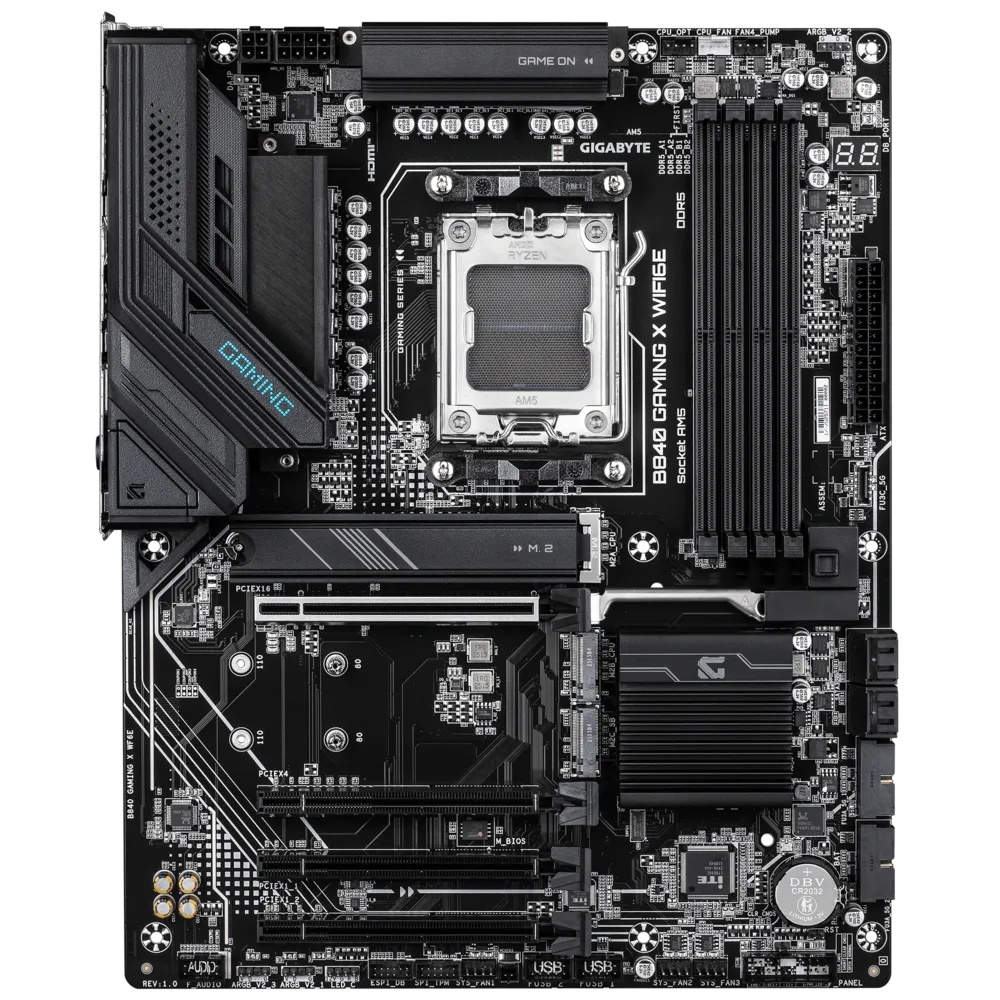

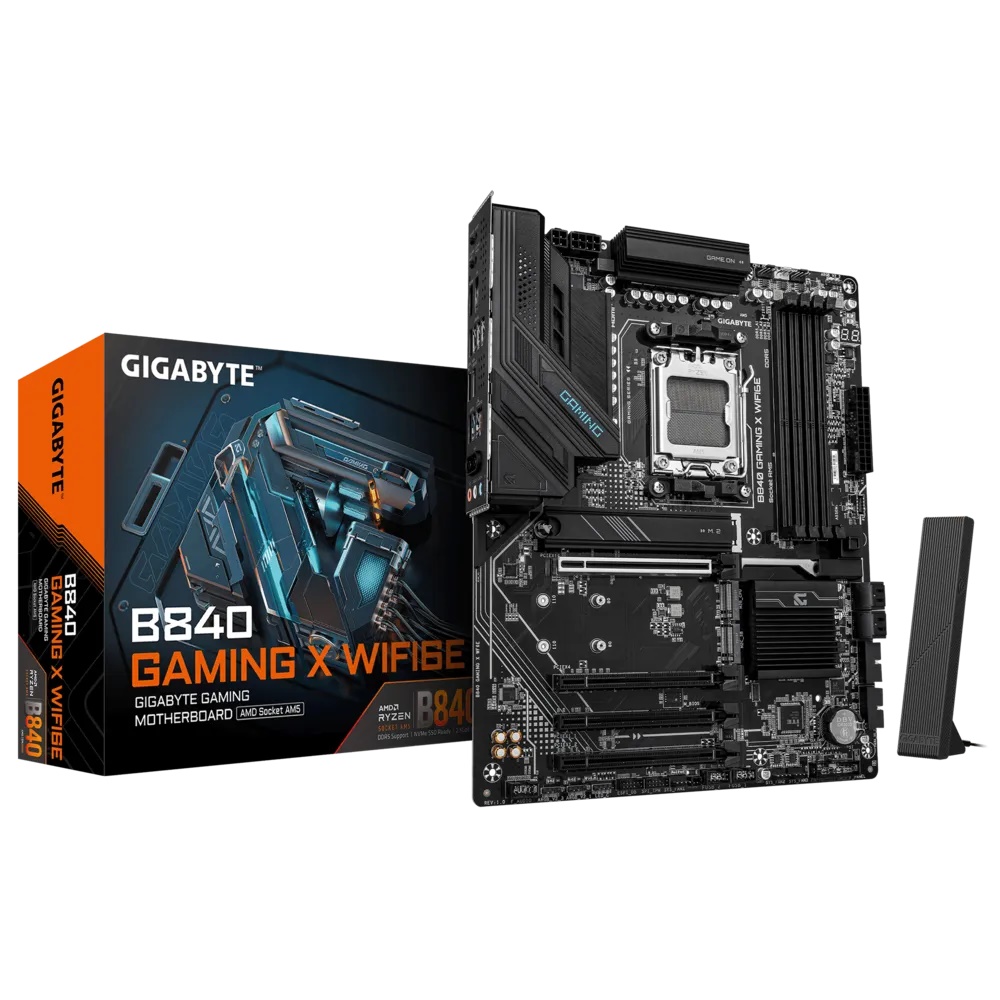

Gigabyte B840 Gaming X WF6E ATX AM5
Gigabyte B840 Gaming X WF6E - Bundkort - ATX - Socket AM5 - AMD B840 Chipset - USB-C 3.2 Gen 2, USB-C 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0 - Bluetooth, Wi-Fi 6E, 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio
-
Varenummer 1003629391
Model B840 GAMING X WF6E
Producent
Gå til producentens hjemmesideEAN 4719331876937
Vægt 1.65 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| CPU support | AMD Socket AM5 |
| Chipset | AMD B840 |
| Memory support | 4x DDR5 DIMM (Dual channel) - DDR5 up to 7600 MT/s - Up to 256GB |
| Display output | 1x HDMI 2.1 port, 1x DisplayPort 1.4 |
| Audio | Realtek Audio CODEC |
| LAN | Realtek 2.5GbE LAN |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5,3 |
| Expansion Slots | 1x PCI Express x16 slot (up to 4.0 x16), 1x PCI Express x16 slot 3.0 x4, 2x PCI Express x16 slot 3.0 x1 |
| Storage Interface | 2x M.2 25110/22110/2580/2280 (PCIe 4.0 x4/x2), 1x M.2 25110/22110/2580/2280 (PCIe 3.0 x4/x2), 4x SATA 6GB/s |
| USB | 1x USB Type-C (3.2 Gen2), 6x USB 3.2 Gen 1, 8x USB 2.0/1.1, 1x USB 3.2 Gen 2 Type-A, 1x USB Type-C (3.2 Gen1) |

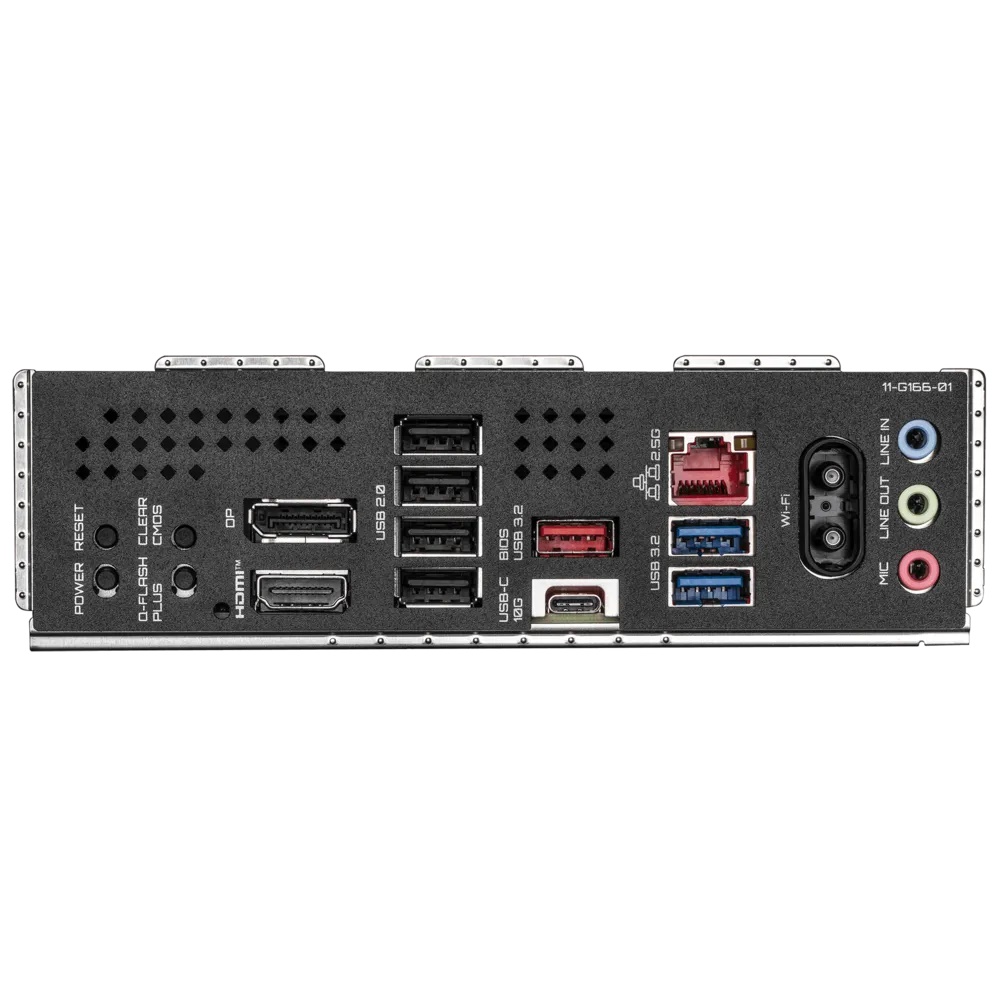

| Back Panel Connectors | 1x DisplayPort, 1x HDMI, 1x USB Type-C (3.2 Gen2), 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1, 4x USB 2.0/1.1, 1x RJ-45, 2x antenna connectors (2T2R), 3x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 256 Mbit flash |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Generelt | |
|---|---|
| Chipsættype | AMD B840 |
| Kompatible processorer | Ryzen (understøtter Ryzen 7000/8000/9000 Serien) |
| Max antal processorer | 1 |
| Processor-socket | Socket AM5 |
| Produkttype | Bundkort - ATX |
| Understøttet RAM | |
| Bus Clock | 4800 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6400 MT/s (O.C.), 6600 MT/s (O.C.), 6666 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.), 7600 MT/s (O.C.) |
| Egenskaber | Intel Extreme Memory Profiles (XMP), AMD EXPO-teknologi, dobbelt kanal hukommelses arkitektur |
| Maks. størrelse | 256 GB |
| Registreret eller buffer | Ikke bufferet |
| Teknologi | DDR5 |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Audio | |
| Overensstemmelsesstandarder | High Definition Audio |
| Type | HD Audio (8-kanaler) |
| LAN | |
| Netværk controller | Realtek RTL8852CE |
| Netværks interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x4 | 2 x PCIe 3.0 x16 (x1 modus) | 3 x M.2 socket (2280/2580/22110/25110 M.2 Key M åbning) |
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 3.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interface | 1 x USB-C 3.2 Gen 2 | 4 x USB 2.0 | 1 x USB 3.2 Gen 2 | 2 x USB 3.2 Gen 1 | 1 x HDMI | 1 x DisplayPort | 1 x LAN (2.5Gigabit Ethernet) | 1 x audio linje-ud - mini-jack | 1 x mikrofon - mini-jack | 1 x audio linje-ind - mini-jack | 2 x antenne |
| Interne interfaces | 1 x USB-C 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 4 x USB 3.2 Gen 1 - intern stik | 1 x audio - intern stik | 1 x SPI - intern stik |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor |
| Egenskaber | |
| BIOS-egenskaber | UEFI BIOS, WfM 2.0 understøttet, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | 12+2+2 Phase Power Design, 2x Copper PCB, Premium Power Choke, VRM Thermal Armor Advanced, præmonteret I/O-skjold, M.2 Thermal Guard, GIGABYTE Smart Fan 6, chipset-kølelegeme, DIY Friendly Design, WIFI EZ-Plug, EZ Debug LED, PCIe EZ Latch Plus, M.2 E |
| Hardwareovervågning | Systemspænding, temperaturdetektion, blæserkontrol, vandkølings-flowrate, blæserfejlvarsel, blæserhastighedsdetektion |
| Diverse | |
| Bredde | 30.5 cm |
| Dybde | 24.4 cm |
| Med software | Norton Internet Security (OEM Version) |
