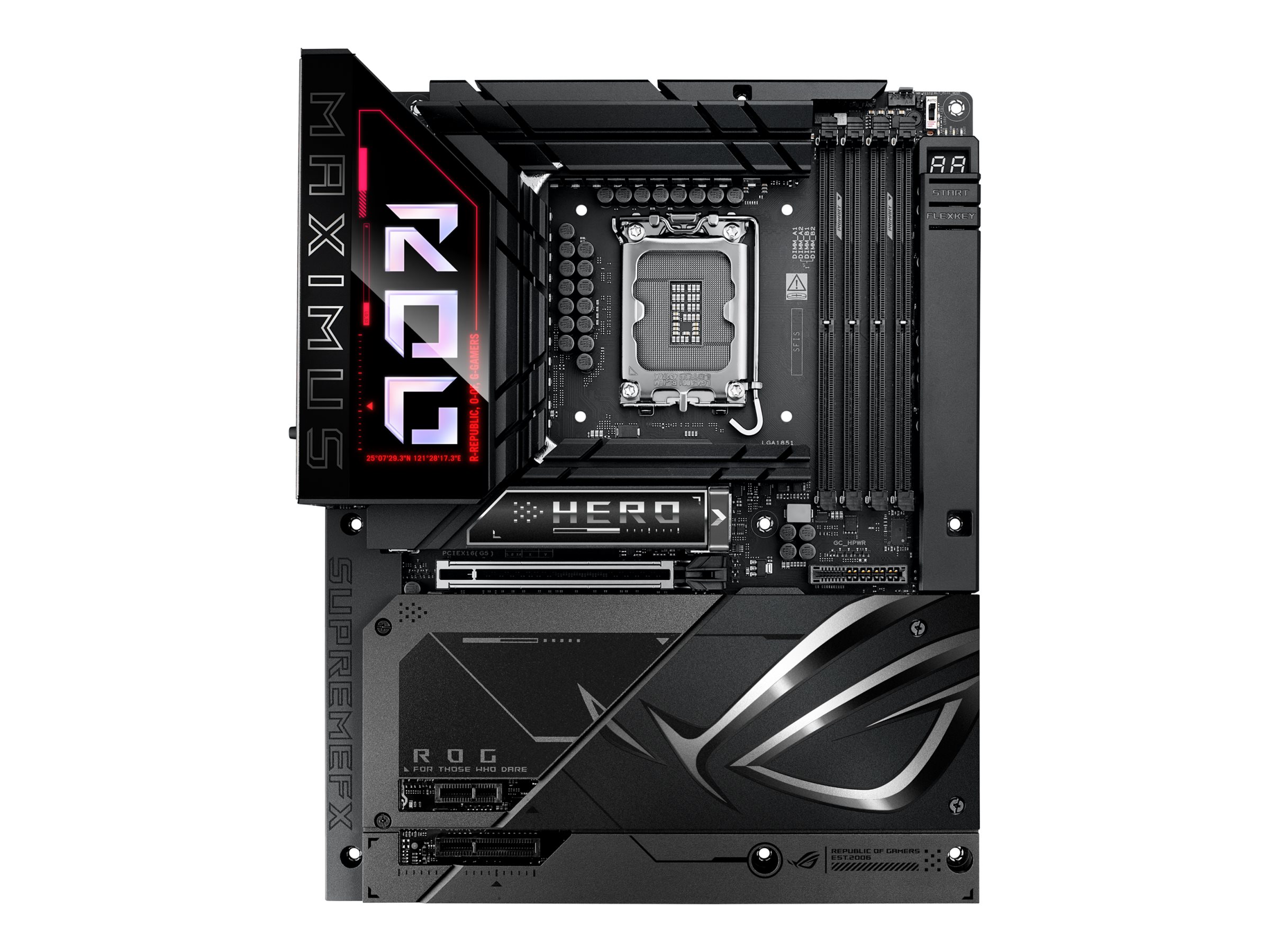

ASUS ROG MAXIMUS Z890 HERO BTF ATX LGA1851 sokkel Intel Z890

ASUS ROG MAXIMUS Z890 HERO BTF - bundkort - ATX - LGA1851 sokkel - Z890

Bundkort - ATX

Intel Z890

1 x LGA1851 sokkel

(understøtter Intel Core Ultra-processorer (Serie 2))

192 GB

4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet

6 x SATA-600, 4 x M.2

2 x USB4 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)

HD Audio (8-kanaler)

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet

Intel Z890

(understøtter Intel Core Ultra-processorer (Serie 2))

1

LGA1851 sokkel

Bundkort - ATX

4400 MHz (O.C.), 4600 MHz (O.C.)

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), NitroPath teknologi

192 GB

Ikke bufferet

DDR5

Ikke-ECC

SupremeFX ALC4082 / ESS ES9219

High Definition Audio, Dolby Atmos

HD Audio (8-kanaler)

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet

1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x4 | 1 x PCIe 4.0 x1 | 3 x M.2 socket (2242/2260/2280 M.2 Key M åbning) | 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning) | 2 x M.2 socket (2280 M.2 Key M-åbning)

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA | PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 5.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5

1 x LAN (2.5Gigabit Ethernet) | 1 x LAN (5Gigabit Ethernet) | 1 x HDMI | 2 x antenne | 1 x audio linje-ud - mini-jack | 1 x mikrofon - mini-jack | 1 x SPDIF-ud | 2 x Thunderbolt 4/DisplayPort/USB4 | 4 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Gen 2 | 4 x USB 3.2 Gen 1

1 x USB-C 3.2 Gen 2x2 - intern stik | 1 x USB-C 3.2 Gen 2 - intern stik | 4 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x audio - intern stik | 1 x Thunderbolt 4 - intern stik

24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser, 8-pins PCI Express strøm-stikforbindelse, 12V-2X6 strømkontakt

UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode

AMI

Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS Enhanced Memory Profile (AEMP) III, CUDIMM støtte, CrashFree BIOS 3, Quick Charge 4+, LANGuard, BIOS FlashBack-knap, Clear CMOS Button, FlexKey-knap, ReTry-knap, Start-knap, ASUS Extreme OC Kit, 10K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, CPU Socket-håndtagsbeskytter, M.2 kølelegeme, M.2 kølelegemeb

Aktivering af LAN (wake on LAN = WOL), vågn på PME

30.5 cm

24.4 cm

ROG CPU-Z, AIDA64 Extreme (1 års 'licens), Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, Adobe Creative Cloud (gratis prøve), ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, HWiNFO, ROG GameFirst Utility, Thunderbolt Share, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)

4 x SATA Express-kabel

DisplayPort 2.1

ARGB RGB-forlængerkabel, DDR5-blæserholder, termisk pude til M.2 SSD, ASUS Wi-Fi Q-antenna, Q-Connector, 3 x M.2 Q-Slide, ROG-mærkater, 6 x M.2 backplade gummipakke, ROG-takkekort, ROG flaskåbner, USB-drev
