Processor
|
AMD Ryzen 7-8845HS (cores: 8, Threads: 16, 3,8 - 5,1 GHz, 16 MB)
|
|
Cooling System
|
80 mm Processor fan, 60 mm Chassis fan
|
|
Integrated Graphics
|
AMD Radeon 780M (cores: 12, 2700 MHz)
|
|
Display output
|
2x HDMI 2.0b, 2x USB4 Type-C with DisplayPort 1.4 function (Up to 4K/60Hz)
|
|
UEFI
|
AMI UEFI Firmware (BIOS)
|
|
TPM
|
DTPM 2.0 with Infineon SLB9670VQ2.0
|
|
Memory support
|
2x SO-DIMM (Supports Non ECC DDR5-5600, 32 GB per DIMM, Dual Channel mode)
|
|
SSD Support
|
M.2-2280M slot B+M key (Supports PCIe Gen4 x4)
|
|
Audio
|
Realtek ALC269-VC3
|
|
LAN
|
2x Realtek RTL8125B 2.5G Ethernet
|
|
WLAN
|
M.2-2230E for WLAN expansion cards (Supports PCI-Express X1 and USB 2.0)
|
|
SD Card
|
SD cards in the size of 24 mm x 32 mm
|
|
Front Panel connectors
|
1x Power button with Power LED (blue), 4x USB 3.2 Gen 2 Type-A (max. 10 Gbps), 1x Audio Combo port (3.5 mm jack plug, 4-pole) [2]
|
|
Back Panel connectors
|
2x HDMI 2.0, 2x USB4 Type-C (max. 40 Gbps) with DP-Alt mode (DP 1.4) and PD (max. 5V / 3A), 1x USB 3.2 Gen 2 Type A (max. 10 GBit/s), 1x USB 2.0, 2x 2.5G Ethernet LAN (RJ45, Realtek RTL8125B), 1x DC-input (5,5 / 2,5 mm)
|
|
Power Adapter
|
19.0 V External 120 W power adapter (fanless)
|
|
Power Adapter dimensions
|
64.5 mm x 22.5 mm x 98 mm (WHD)
|
|
Supplied Accessories
|
Multi-language Quick Installation Guide, VESA mount with screws (supports 75x75 and 100x100 mm standards), Heat sink with two thermal pads for the M.2 SSD card, Power adapter 120 W with AC power cord, A DVD driver disk is not supplied
|
|
Operation System
|
No operating system included (compatible with Windows 11, 64-bit / Linux, 64-bit)
|
|
Dimensions
|
132 x 143 x 55 mm (WLH)
|
|
Weight
|
1.7 kg
|
|
VESA mount
|
75x75 and 100x100 mm standard
|
Vi optimerer løbende systemet og retter de småting, der måtte opstå. Tak for jeres forståelse
For at se vores fulde sortiment, priser og opnå den fulde adgang til vores webshop, skal du logge ind.
Log ind på din konto her eller registrer dig som kunde her.

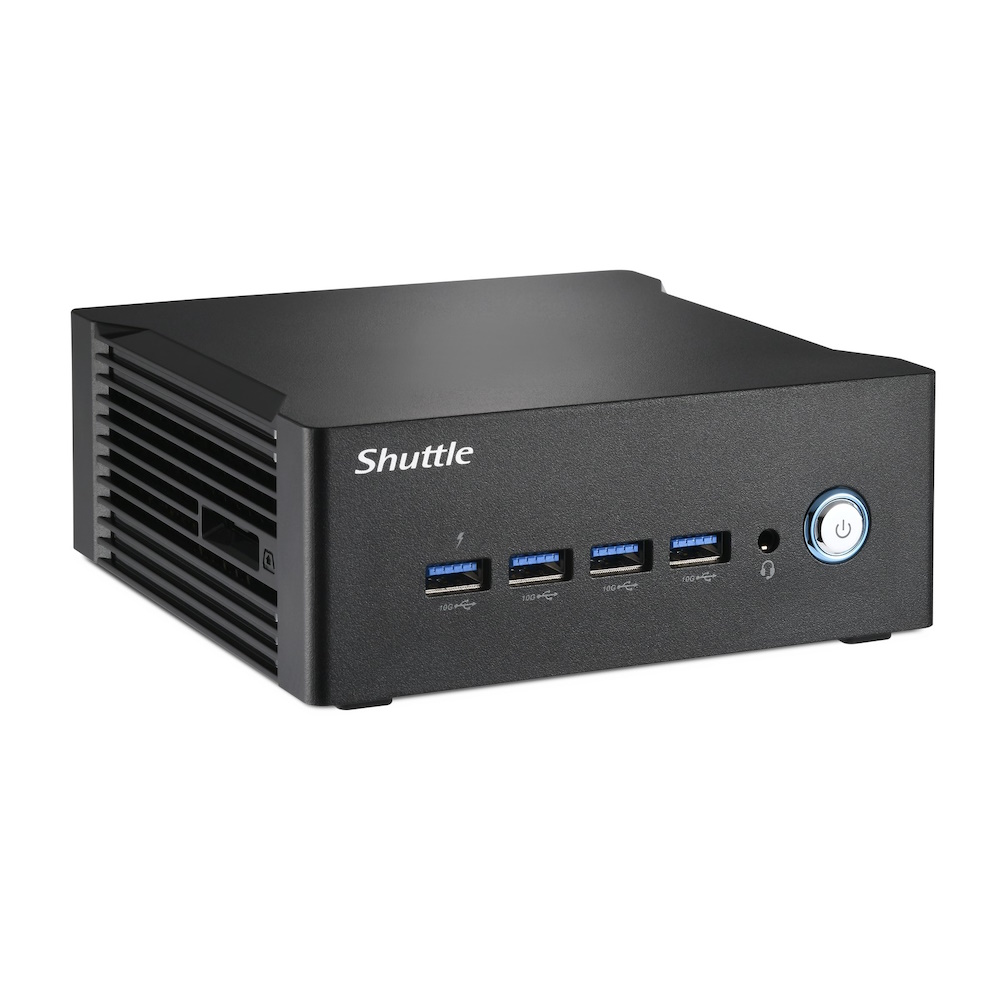

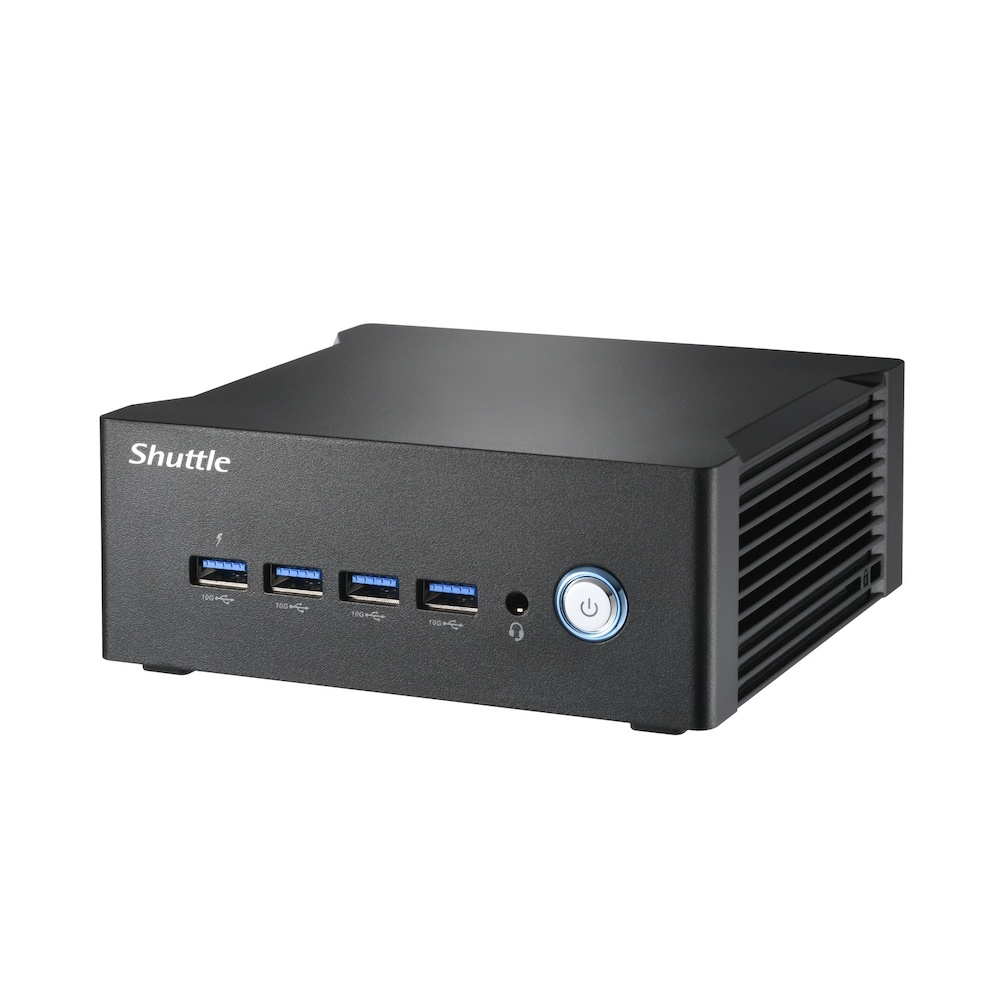

Shuttle XPC Nano NA10H7 R7-8845HS 0GB No-OS
Shuttle XPC nano NA10H7 - Barebone - mini PC 1 x Ryzen 7 8845HS / op til 5.1 GHz - RAM 0 GB - Radeon 780M - Gigabit Ethernet
Varenummer:
1002949072
Model:
NA10H7
EAN:
887993007403
Producent:
Vægt:
1.8 kg
Specifikationer
Udv. specifikationer
|
Generelt
|
|
|---|---|
|
Embedded Security
|
Trusted Platform Module (TPM 2.0) Security Chip
|
|
Produktmodel
|
Mini PC
|
|
Type
|
PC barebone
|
|
Processor / Chipset
|
|
|
Antal CPU'er
|
1
|
|
Antal kerner
|
8-core
|
|
Clock-frekvens
|
3.8 GHz
|
|
CPU
|
AMD Ryzen 7 8845HS
|
|
Maks. antal CPU'er
|
1
|
|
Max Turbo Speed
|
5.1 GHz
|
|
Cachehukommelse
|
|
|
Cache pr. processor
|
16 MB
|
|
Installeret størrelse
|
16 MB
|
|
RAM
|
|
|
Holdere
|
2 (Total)
|
|
Installeret størrelse
|
0 GB (installeret) / 64 GB (maks.)
|
|
Model
|
SO DIMM 262-PIN
|
|
Teknologi
|
DDR5 SDRAM
|
|
Harddisk
|
|
|
Type
|
Ingen HDD
|
|
Optisk lagring
|
|
|
Type
|
Intet optisk drev
|
|
Kortlæser
|
|
|
Type
|
Kortlæser
|
|
Understøttede flashhukommelseskort
|
SD hukommelseskort
|
|
Monitor
|
|
|
Monitortype
|
Ingen.
|
|
Grafik controller
|
|
|
Grafik-processor
|
AMD Radeon 780M
|
|
Lydudgang
|
|
|
Lydudgangsmodus
|
Stereo
|
|
Netværk
|
|
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, Gigabit Ethernet
|
|
Ethernet Controller
|
Realtek RTL8125B
|
|
Ekspansion / Konnektivitet
|
|
|
Holdere
|
1 (total) / 1 (fri) x M.2 Card - 2280 (Key B-M) | 1 (total) / 0 (fri) x M.2 Card - 2230
|
|
Interface
|
1 x hovedtelefoner/mikrofon | 5 x USB 3.2 Gen 2 | 2 x DisplayPort 1.4/USB4 | 2 x HDMI | 2 x LAN (2.5Gigabit Ethernet) | 1 x USB 2.0
|
|
Diverse
|
|
|
Overensstemmelsesstandarder
|
BSMI, FCC, RoHS
|
|
Sikkerhedsåbningstype
|
Kensington-sikkerhedsåbning
|
|
Tyveri/Indtrængningsbeskyttelse
|
Sikkerhedslåseåbning (kabellåse solgt separat)
|
|
Udstyr inkluderet
|
VESA monteringssæt
|
|
VESA-monteringsinterface
|
100 x 100 mm, 75 x 75 mm
|
|
Effekt
|
|
|
Enhedstype
|
Strømforsyningsadapter
|
|
Nødvendig spænding
|
AC 100-240 V (50 - 60 Hz)
|
|
Strømforsyning
|
120 watt
|
|
Operativsystem / Programmer
|
|
|
Med OS
|
Intet operativt system
|
|
Mål og vægt
|
|
|
Bredde
|
13.2 cm
|
|
Dybde
|
14.3 cm
|
|
Højde
|
5.5 cm
|
|
Vægt
|
800 g
|
|
Miljømæssige parametre
|
|
|
Fugtighedsgrad ved brug
|
10 - 90 % (ikke-kondenserende)
|
|
Maks. driftstemperatur
|
40 °C
|
|
Min. driftstemperatur
|
0 °C
|
|
Neural Processor Unit (NPU)
|
|
|
Neural Processor Unit (NPU)
|
AMD Ryzen AI
|
|
NPU-ydeevne Op Til (TOPS)
|
16 TOPS
|
|
Total processorpræstation op til (TOPS)
|
38 TOPS
|
