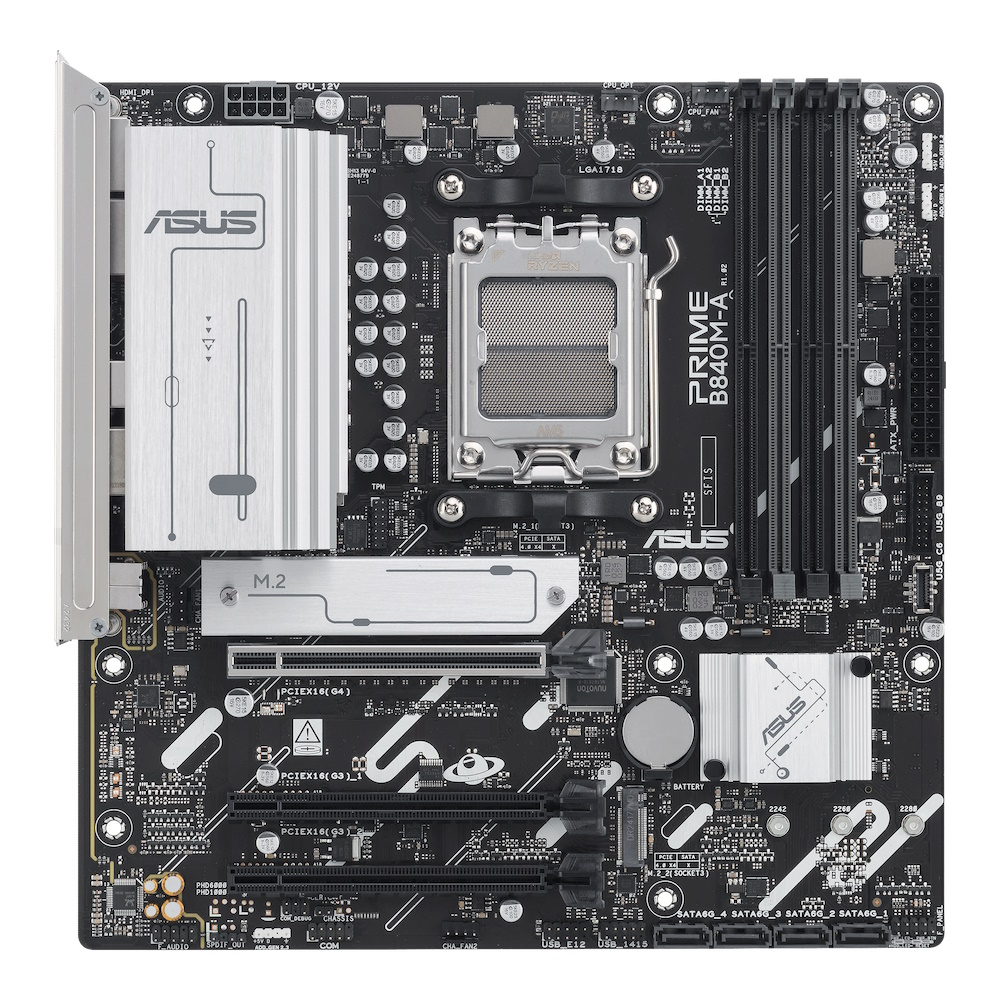

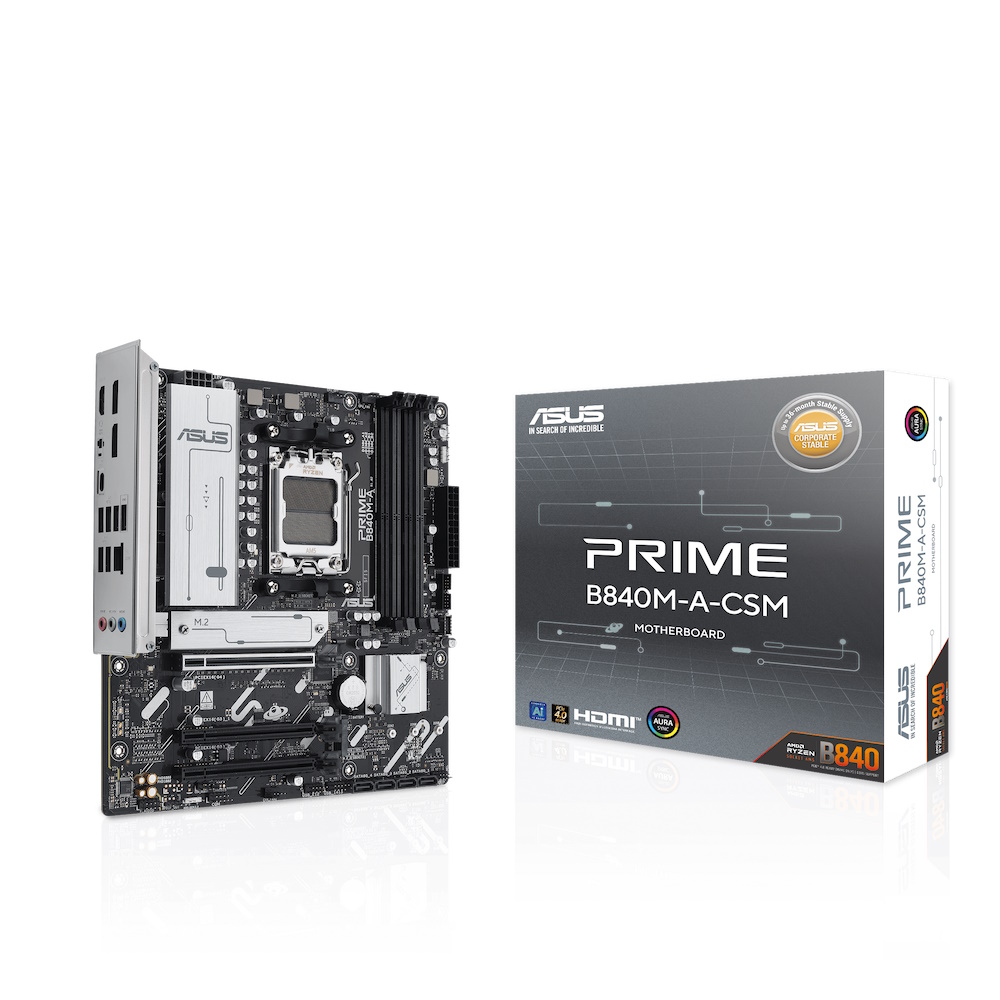

ASUS Prime B840-A-CSM mATX AM5

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

AMD B840 Chipset

4x DIMM, DDR5, 192GB max.

1x DisplayPort 1.4, 1x HDMI™ 2.1 port

1x Ryzen 9000 & 7000: PCIe 4.0 x16 slot (x16 mode) OR Ryzen 8000: PCIe 4.0 (x8/x4 mode), 2 x PCIe 3.0 x16 slots (support x1 mode)

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode), 4 x SATA 6Gb/s ports

1x Realtek 2.5Gb Ethernet

2 x USB 10Gbps ports (2 x Type-A), 1 x USB 5Gbps port (1 x USB Type-C®), 4 x USB 2.0 ports (4 x Type-A)

1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC

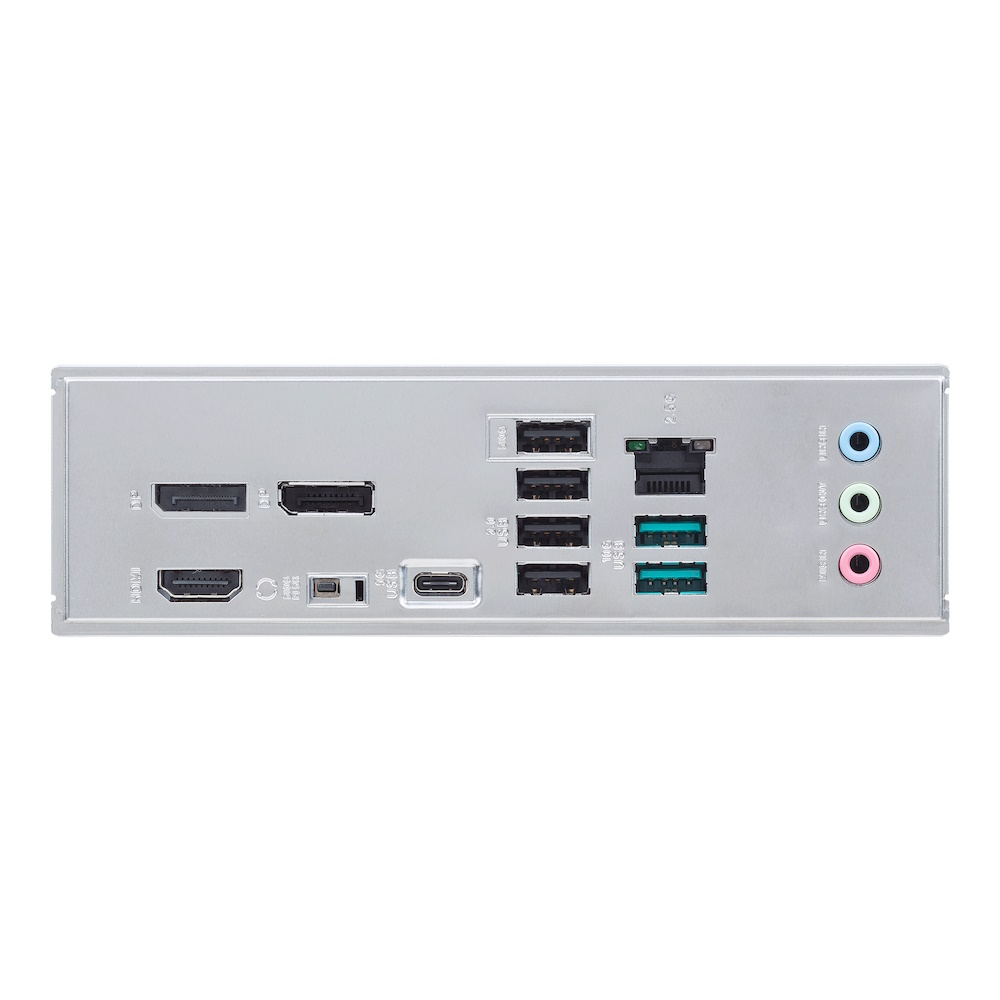

1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks,, 1 x BIOS FlashBack™ button

256 Mb Flash ROM, UEFI AMI BIOS

2 x SATA 6Gb/s cables, 1 x M.2 rubber packages, 3 x Screw packages for M.2 SSD, 1 x ACC Express Activation Key Card, 1 x Quick start guide

micro-ATX Form Factor (24.4 cm x 24.4 cm)

AMD B840

Ryzen (understøtter Ryzen 7000/8000/9000 Serien)

1

Socket AM5

Bundkort - micro ATX

3800 MHz (O.C.)

AMD EXPO-teknologi, dobbelt kanal hukommelses arkitektur

192 GB

Ikke bufferet

DDR5

Ikke-ECC, on-die ECC, ECC

High Definition Audio

HD Audio (8-kanaler)

2.5 Gigabit Ethernet

1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 4.0 x16 | 2 x PCIe 3.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning) | 2 x M.2 socket (2280 M.2 Key M-åbning)

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -stikforbindelser: 1 x M.2

1 x HDMI | 2 x DisplayPort | 2 x USB 3.2 Gen 1 | 4 x USB 2.0 | 1 x LAN (Gigabit Ethernet) | 1 x PS/2-tastatur/mus | 1 x mikrofon - mini-jack | 1 x audio linje-ind - mini-jack | 1 x audio linje-ud - mini-jack

1 x USB-C 3.2 Gen 1 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x seriel - intern stik | 1 x audio - intern stik | 1 x SPDIF ud - intern stik | 1 x højttaler - intern stik | 1 x SPI - intern stik | 1 x Thunderbolt - intern stik

24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

AMI

Preboot eXecution Environment (PXE), ASUS EZ DIY, ASUS DIGI+ VRM, CrashFree BIOS 3, ASUS OptiMem II, ASUS 5X Protection III, LANGuard, overspændingsbeskyttelse, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, VRM kølelegemedesign, BIOS FlashBack-knap, BIOS FlashBack LED, ASUS Aura Sync, Lighting Control, ASUS Control Center Express (ACC Express), 6 Layer PCB, ASUS Enhanced Memory Profile (AEMP), 8+2+1 Phase Power Design

Aktivering af LAN (wake on LAN = WOL), vågn på PME

24.4 cm

24.4 cm

WinRAR, Norton 360 for Gamers (60 dages prøvetid), ASUS CPU-Z, PC Cleaner, ASUS TurboV EVO Utility, ASUS AI Suite III, ASUS Fan Xpert 2+, ASUS AURA Creator, Armoury Crate, Adobe Creative Cloud (gratis prøve), WinRAR (40 days trial), ASUS Control Center Express

2 x Seriel ATA kabel

ASUS Corporate Stable Model (CSM)

M.2 skruepakke, IO-skjold, ACC Express Activation Key Card
