Product no 998696796
Model P40498-B21
Brand Hewlett Packard Ente
EAN 0190017508887
Weight 0.5 kg

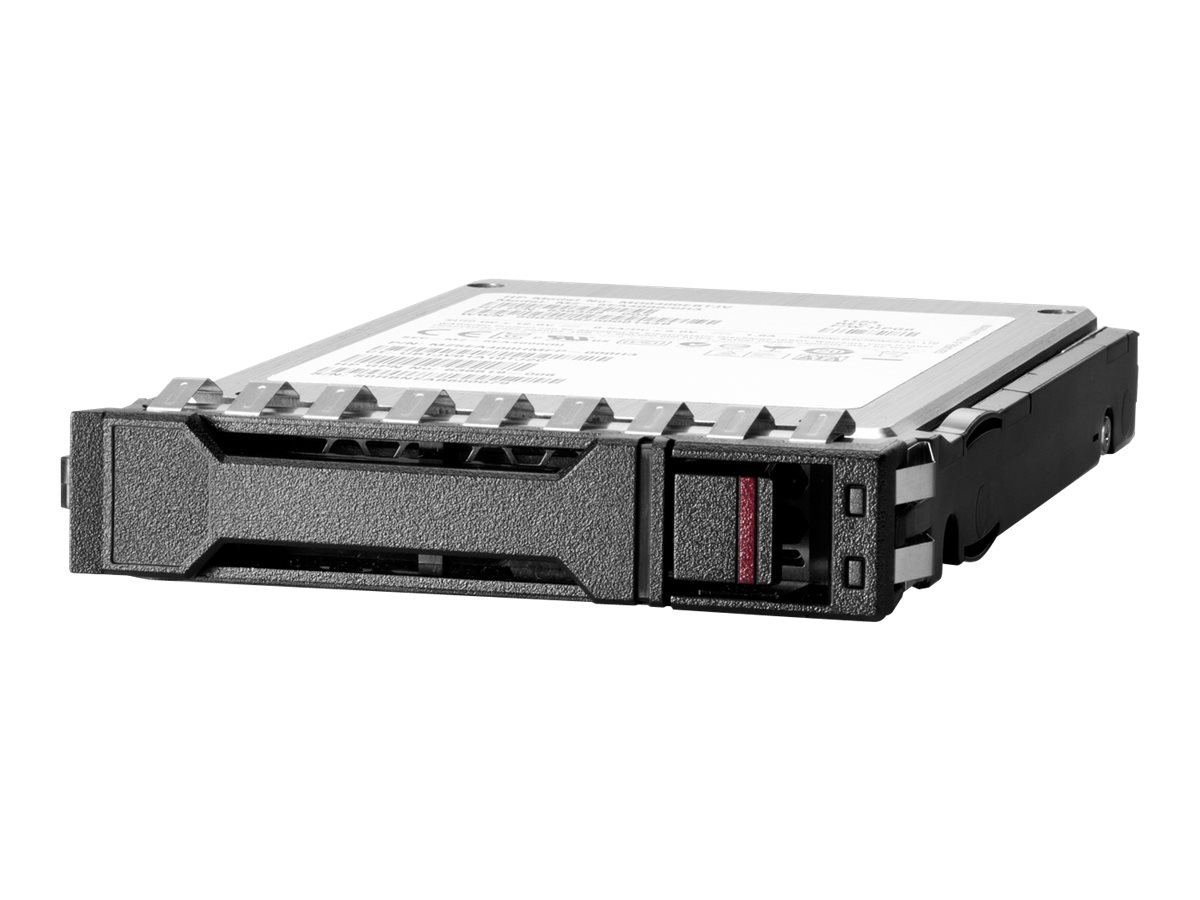

Produktbeskrivelse | HPE - SSD - Read Intensive - 960 GB - SATA 6Gb/s |
Type | Solid state-drev - hot-swap |
Kapacitet | 960 GB |
NAND Flashhukommelses-type | Tredobbelt-niveau celle (TLC) |
Model | 2.5" SFF |
Grænseflade | SATA 6Gb/s |
Dataoverførselshastighed | 600 MBps |
Drevklasse | Read Intensive |
Egenskaber | Digitally Signed Firmware |
Dimensioner (B x D x H) | 7 mm |
Vægt | 500 g |
Producentgaranti | 3 års garanti |
Bundtet med | HPE Basic Carrier |
Designet for | ProLiant DL20 Gen10 Plus, DL20 Gen10 Plus Base, DL20 Gen10 Plus Entry, DL20 Gen10 Plus High Performance, DL20 Gen10 Plus Performance, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice (2.5"), DL365 Gen10 Plus (2.5"), DL380 Gen10 Plus (2.5"), DL380 Gen10 Plus Network Choice (2.5"), ML30 Gen10 Plus (2.5"), ML30 Gen10 Plus Entry (2.5"), ML30 Gen10 Plus Performance (2.5"); SimpliVity 325 Gen10 Plus V2 Node |
General | |
---|---|
Bundled with | HPE Basic Carrier |
Capacity | 960 GB |
Device Type | Solid state drive - hot-swap |
Features | Digitally Signed Firmware |
Form Factor | 2.5" SFF |
Height | 7 mm |
Interface | SATA 6Gb/s |
NAND Flash Memory Type | Triple-level cell (TLC) |
Weight | 500 g |
Performance | |
4KB Random Read | 58500 IOPS |
4KB Random Write | 29000 IOPS |
Drive Class | Read Intensive |
Drive Transfer Rate | 600 MBps (external) |
Drive Writes Per Day (DWPD) | 0.8 |
Internal Data Rate | 515 MBps (read) / 480 MBps (write) |
SSD Endurance | 1400 TB |
Expansion & Connectivity | |
Compatible Bay | 2.5" SFF |
Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
Power | |
Power Consumption | 1.35 Watt (idle) | 3.02 Watt (random read) | 3.02 Watt (random write) | 3.05 Watt (sequential read) | 3.37 Watt (sequential write) | 3.02 Watt (random read/write) | 3.37 Watt (maximum) |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Compatibility Information | |
Designed For | HPE ProLiant DL20 Gen10 Plus (2.5"), DL20 Gen10 Plus Base (2.5"), DL20 Gen10 Plus Entry (2.5"), DL20 Gen10 Plus High Performance (2.5"), DL20 Gen10 Plus Performance (2.5"), DL325 Gen10 Plus V2 (2.5"), DL325 Gen10 Plus V2 Base (2.5"), DL325 Gen10 Plus |
TechnicalSpecifications | |
---|---|
Read IOPS | Random Read IOPS (4KiB, Q=16)=58,500 Max Random Read IOPS (4KiB)=58,500@Q32 |
Write IOPS | Random Write IOPS (4KiB, Q=16)=29,000 Max Random Write IOPS (4KiB)=29,000@Q4 |
Plug type | Hot Pluggable |
Power (Watts) | 3.37 |
Lifetime writes | 1,400 |
Endurance DWPD (Drive Writes Per Day) | 0.8 |
Product dimensions (metric) | 21.92 x 22.86 x 14.61 cm |
Weight | 0.5 kg |
