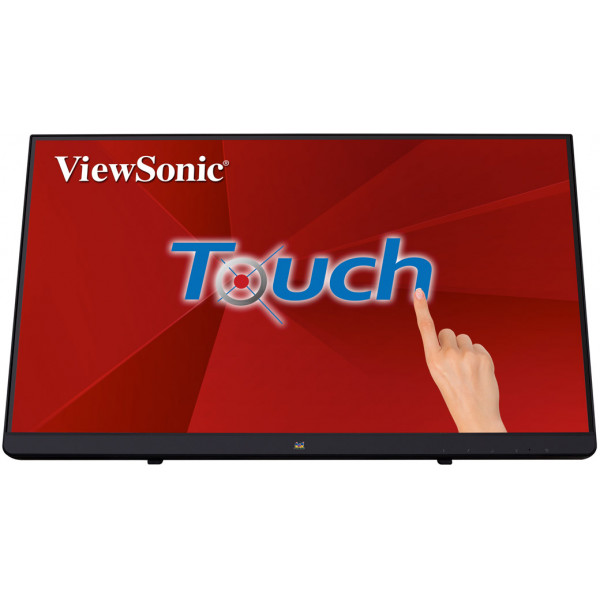

ViewSonic TD2230 22" 1920 x 1080 (Full HD) VGA (HD-15) HDMI DisplayPort
ViewSonic TD2230 - LED-skærm - 22" (21.5" til at se) - touchscreen - 1920 x 1080 Full HD (1080p) - ADS-IPS - 250 cd/m² - 1000:1 - 5 ms - HDMI, VGA, DisplayPort - højtalere
-
Product no 993857220
Model TD2230
Brand ViewSonic
EAN 766907842418
Weight 4.76 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Skærm diagonal | 54,6 cm (21.5") |
| Skærmopløsning | 1920 x 1080 pixel |
| Skærmteknologi | LCD |
| Berøringsskærm | Ja |
| HD-type | Fuld HD |
| Paneltype | ADS |
| Responstid | 5 ms |
| Skærm form | Flad |
| Kontrastforhold (typisk) | 1000:1 |
| Maksimal opdateringshastighed | 76 Hz |
| NVIDIA G-SYNC | Ingen |
| AMD FreeSync | Ingen |
| Indbyggede højttaler(e) | Ja |
| Indbygget kamera | Ingen |
| Produktfarve | Sort |
| Indbygget USB-hub | Ja |
| HDMI | Ja |
| VESA montering | Ja |
| Energieffektivitetsklasse (SDR) | F |
| Energiforbrug (SDR) pr. 1000 timer | 19 kWh |
| Strømforbrug (typisk) | 25 W |
| General | |
|---|---|
| Aspect Ratio | 16:9 |
| Backlight Technology | LED backlight |
| Brightness | 250 cd/m² |
| Built-in Devices | USB 3.0 hub |
| Contrast Ratio | 1000:1 / 50000000:1 (dynamic) |
| Diagonal Size | 22" |
| Dimensions (WxDxH) | 49 cm x 4.7 cm x 29.9 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class F |
| Features | Sync on Green, HDCP, SuperClear, frameless, scratch-resistant, Flicker Free technology, Transition Minimized Differential Signaling (TMDS) technology, Blue Light Filter technology, Composite Sync, ViewMode |
| Horizontal Refresh Rate | 15 - 82 kHz |
| Horizontal Viewing Angle | 178 |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Panel Type | ADS-IPS |
| Response Time | 5 ms (gray-to-gray) |
| Screen Coating | 7H Hard Coating |
| Vertical Refresh Rate | 50 - 76 Hz |
| Vertical Viewing Angle | 178 |
| Viewable Size | 21.5" |
| Weight | 3.58 kg |
| Audio | |
| Output Power / Channel | 3 Watt |
| Type | Speakers - stereo |
| Input | |
| Movement Detection Technology | Projected capacitive |
| Type | Touchscreen - touchscreen |
| Connectivity | |
| Interfaces | VGA | DisplayPort | HDMI (HDCP) | 2 x USB 3.0 downstream (Type A) | USB 3.0 upstream (Type B) | Headphones (mini-jack) | Audio line-in (mini-jack) |
| Mechanical | |
| Display Position Adjustments | Tilt |
| Tilt Angle | -20/+70 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included | 1 x HDMI cable - 1.5 m | 1 x SuperSpeed USB cable - 1.5 m | 1 x audio cable - 1.5 m |
| Compliant Standards | FCC Class B certified, UL, DDC-2B, ICES-003, CCC, DDC/CI, cULus, CEL, DisplayPort 1.2, DOE, Mexico CoC |
| Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 25 Watt |
| Power Consumption SDR (On mode) | 19 kWh/1000h |
| Software / System Requirements | |
| OS Required | Android 4.0 or later, Microsoft Windows 7 / 8 / 10, Linux 2.6.38 or later |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.4 cm |
| Shipping Height | 37.1 cm |
| Shipping Weight | 4.7 kg |
| Shipping Width | 55 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - pick-up and return - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 7.0 |
| EPEAT Compliant | EPEAT Bronze |
