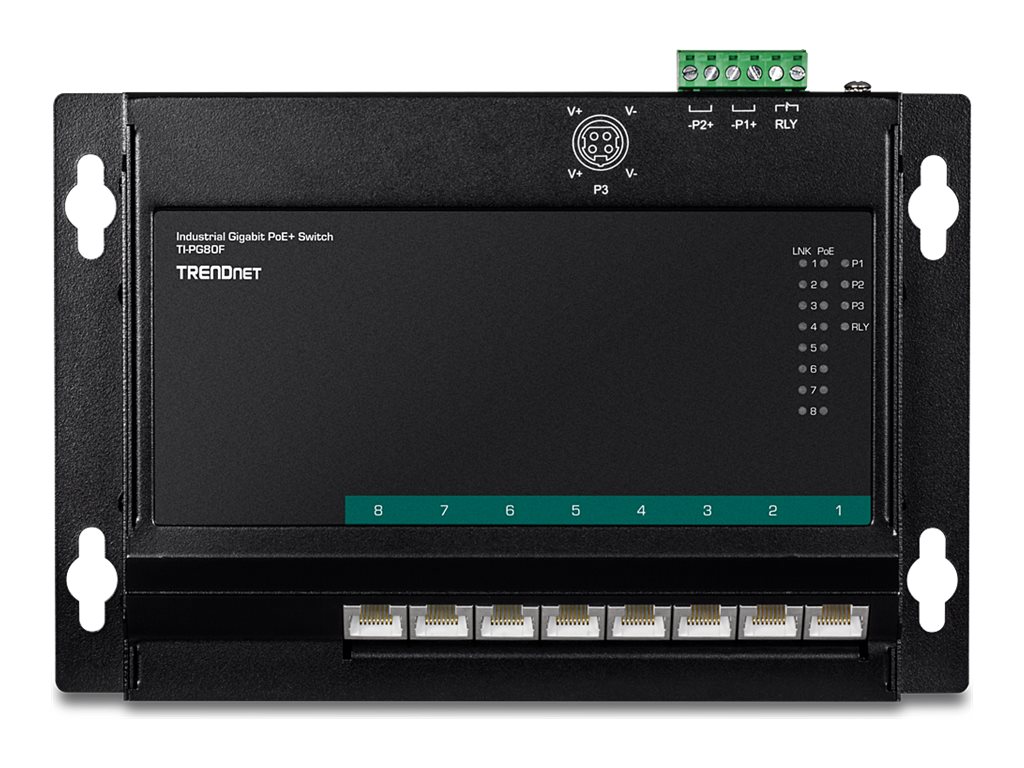

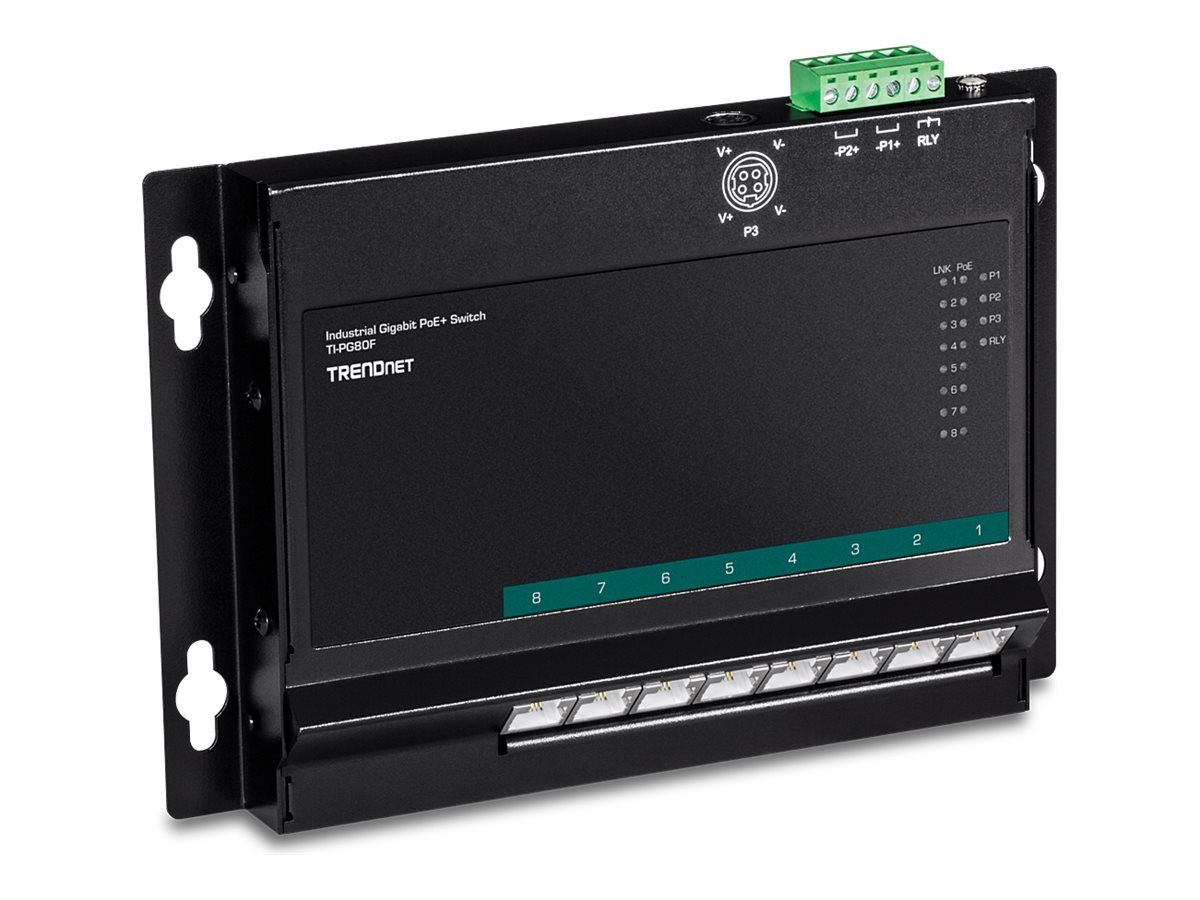

TRENDnet TI-PG80F Switch 8-porte Gigabit PoE+
TRENDnet TI-PG80F - Industrial - switch - ikke administreret - 8 x 10/100/1000 (PoE+) - DIN monterbar på skinne, væg-monterbar - PoE+ (200 W) - TAA-kompatibel
-
Product no 995414625
Model TI-PG80F
Brand
Go to brand's websiteEAN 0710931161496
Weight 0.99 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Switch-type | Ikke administreret |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G understøttelse | Ingen |
| MAC adresselabel | 4096 entries |
| Switch kapacitet | 16 Gbit/sek. |
| Stativ-montering | Ingen |
| Strøm over Ethernet (PoE) | Ja |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Device Type | Switch - 8 ports - unmanaged |

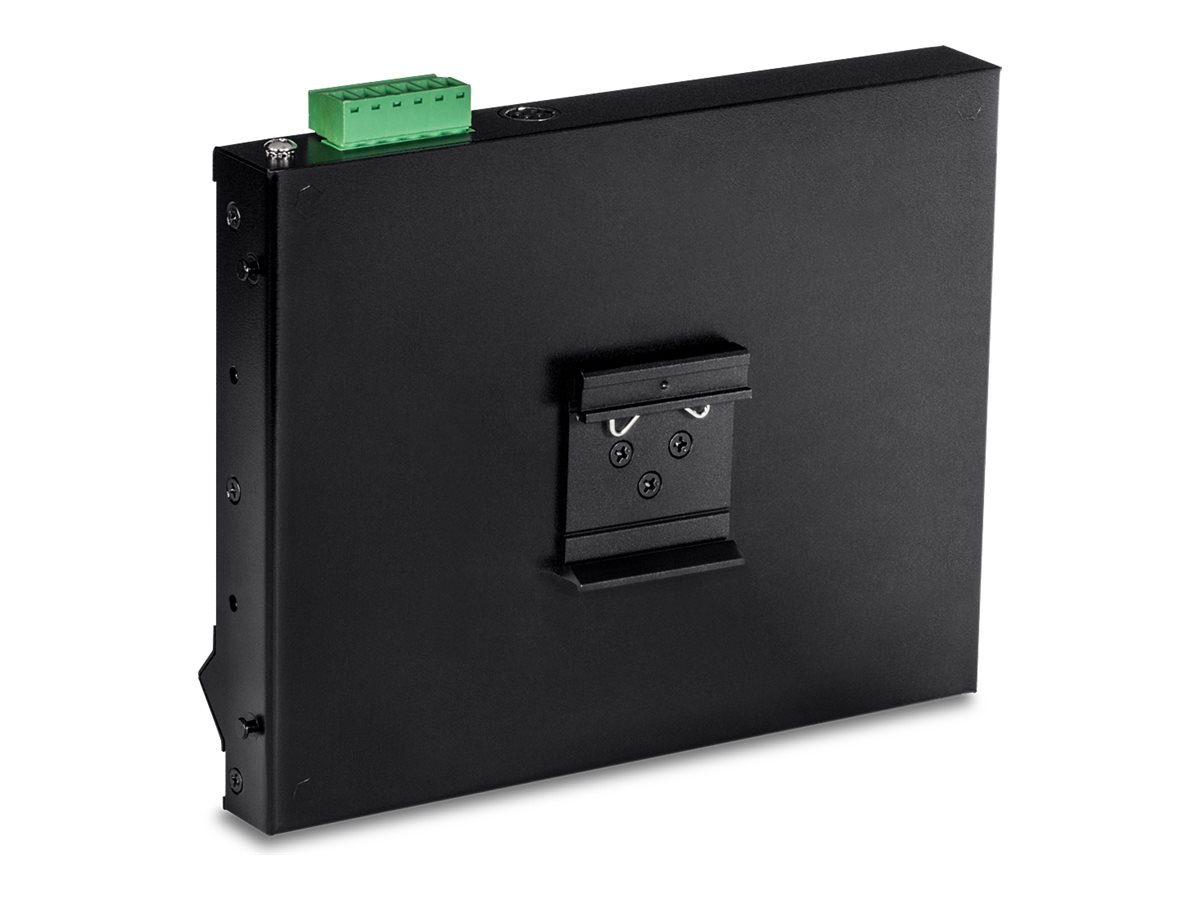

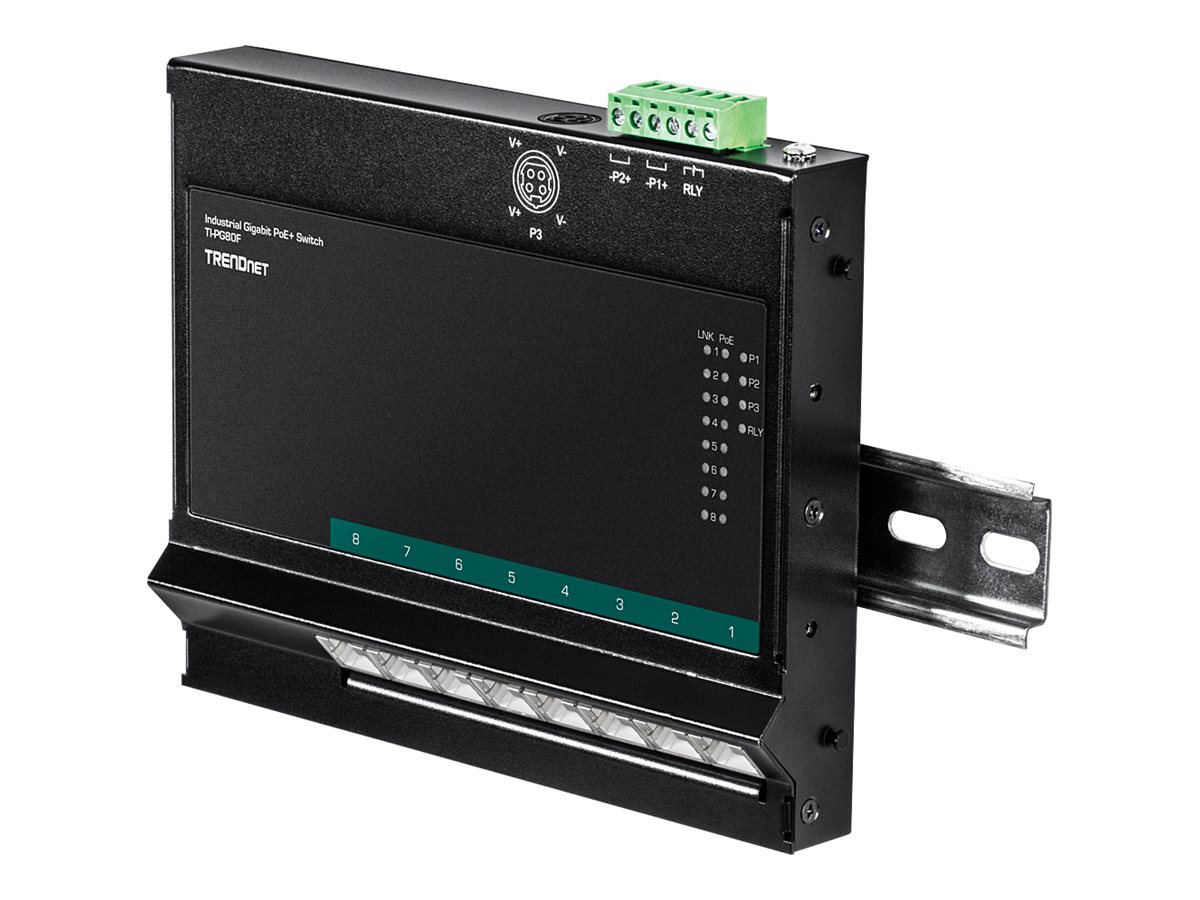

| Enclosure Type | DIN rail mountable, wall-mountable |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, surge protection, 1MB packet buffer, 8KV ESD Protector, metal housing, shock-resistant, vibration-proof |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 4K entries |
| Performance | Switching capacity: 16 Gbps | Forwarding performance (64-byte packet size): 11.9 Mpps |
| PoE Budget | 200 W |
| Ports | 8 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ |
| Power | |
| Max Supported Qty | 2 |
| Power Device | External power adapter (not included) |
| Power Redundancy | Yes |
| Miscellaneous | |
| Compliant Standards | UL, FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |

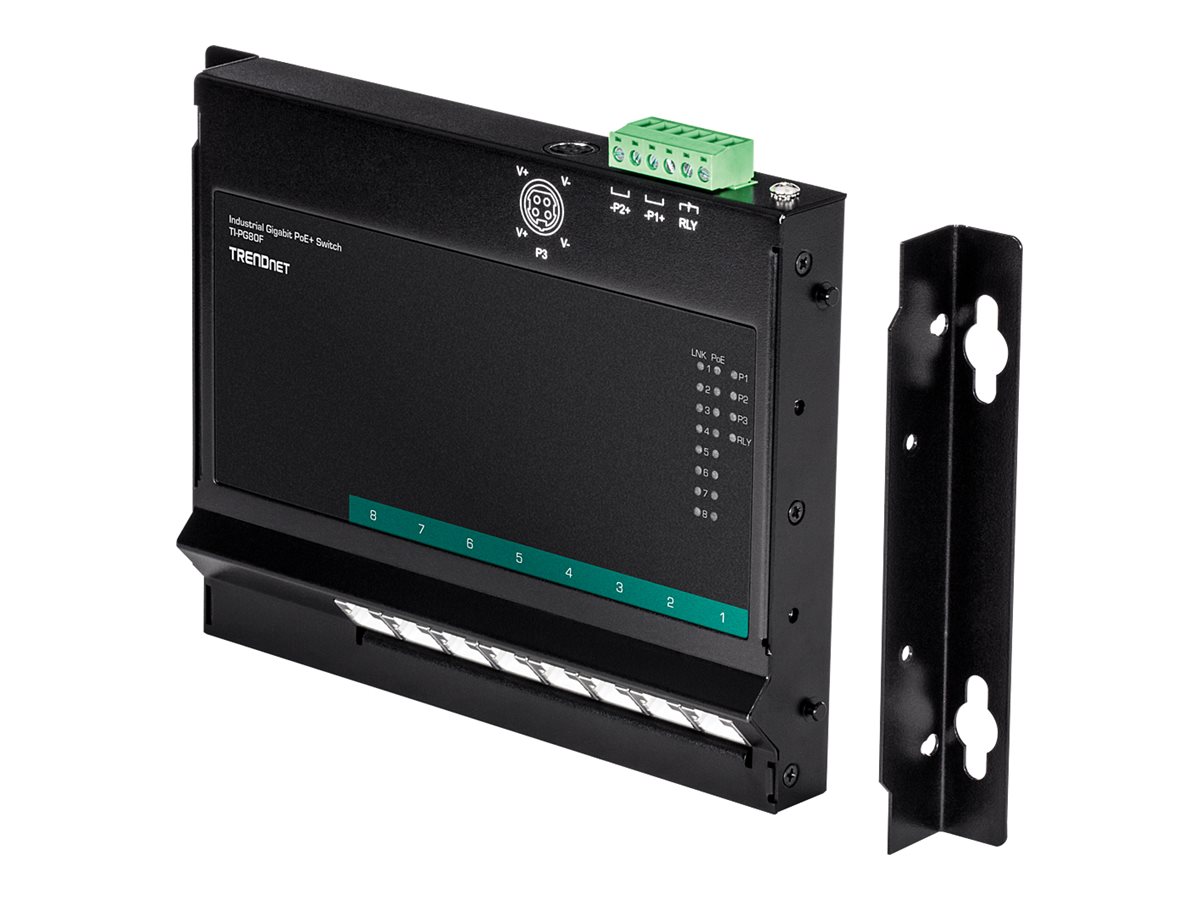

| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 500,000 hours |
| Dimensions & Weight | |
| Depth | 2.67 cm |
| Height | 14.5 cm |
| Weight | 635 g |
| Width | 15 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
