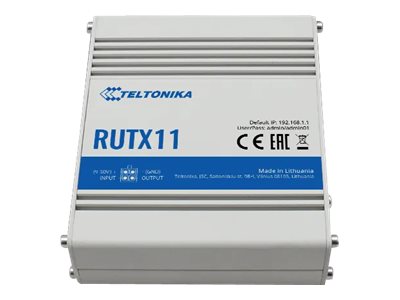

Teltonika RUTX11 Trådløs router
Teltonika RUTX11 - Trådløs router - WWAN 4-port switch - 1GbE - Wi-Fi 5 - DIN monterbar på skinne
Udstyret med dual-SIM, 4 x Gigabit Ethernet-porte, dual-band AC Wi-Fi, Bluetooth LE og USB-grænseflader. RUTX11 leveres med al RutOS-software og sikkerhedsfunktioner. Denne enhed er perfekt til avancerede industri- og virksomhedsapplikationer.
-
Product no 994882580
Model RUTX11000000
Brand Teltonika
EAN 4779027312378
Weight 0.96 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Teltonika RUTX11 - trådløs router - WWAN - Bluetooth, Wi-Fi 5 - DIN monterbar på skinne |
| Enhedstype | Trådløs router - trådløs mobilmodem - 4-port switch (integreret) |
| Pakningstype | DIN monterbar på skinne |
| Mobilprotokol | WCDMA, HSUPA, LTE, DC-HSDPA |
| Antal WAN porte | 1 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Netværks/overføselsprotokol | TCP/IP, UDP/IP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, DHCP, DNS |
| Routingprotokol | Statisk IP routing |
| Protokol til fjernadministration | SNMP, Telnet, HTTP, HTTPS, SSH, JSON-RPC, NTP |
| Egenskaber | Firewallbeskyttelse, NAT-understøtning, VPN support, aktivitet, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IPv6 understøttet, firmware kan opgraderes, 2T2R MIMO teknologi, IPv4 support, SMS-fjernstyring, MU-MIMO teknologi, Web Filtering, automated failover |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, UPnP, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Dimensioner (B x D x H) | 11.5 cm x 9.5 cm x 4.4 cm |
| Vægt | 465 g |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), X.509 certificates |
| Built-in Devices | LED panel, GPS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, UPnP, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | DIN rail mountable |
| Encryption Algorithm | TLS, SSL 3.0 |
| Features | Firewall protection, NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, firmware upgradable, 2T2R MIMO technology, IPv4 support, SMS remote control, MU-MIMO technology, Web Filtering, automated failove |
| Flash Memory | 256 MB |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, DHCP, DNS |
| Processor | 1 x ARM Cortex-A7 717 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, SSH, JSON-RPC, NTP |
| Routing Protocol | Static IP routing |
| Status Indicators | Port status, power, signal strength, WAN, SIM status, Wi-Fi, mobile network type |
| Communications | |
| Cellular Protocol | WCDMA, HSUPA, LTE, DC-HSDPA |
| Max Transfer Rate | 300 Mbps |
| Type | Wireless cellular modem |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SIM |
| Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | Antenna: 3 x SMA | Antenna: 3 x RP-SMA | USB: 1 x 4 pin USB Type A |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 6 |
| Power | |
| Power Consumption Operational | 18 Watt |
| Power Device | External power adapter |
| Miscellaneous | |
| Cables Included | 1 x network cable - 1.5 m |
| Included Accessories | GPS antenna, 2 x Wi-Fi antennas, 2 x LTE antennas, Bluetooth antenna |
| Software / System Requirements | |
| OS Provided | RutOS |
| Dimensions & Weight | |
| Depth | 9.5 cm |
| Height | 4.4 cm |
| Weight | 465 g |
| Width | 11.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
