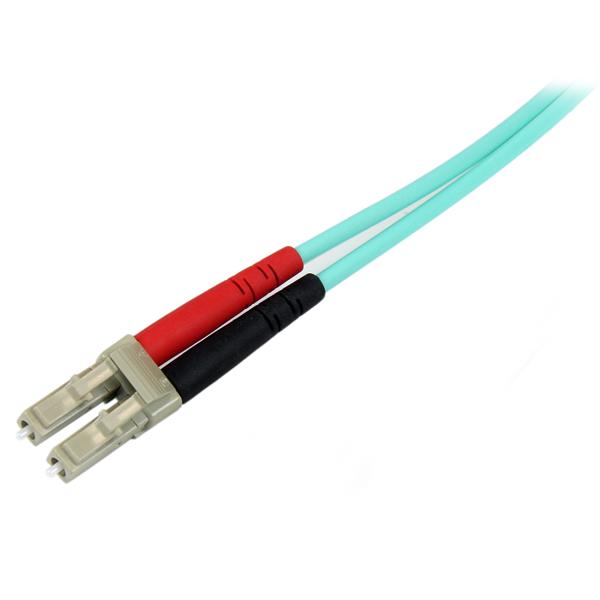

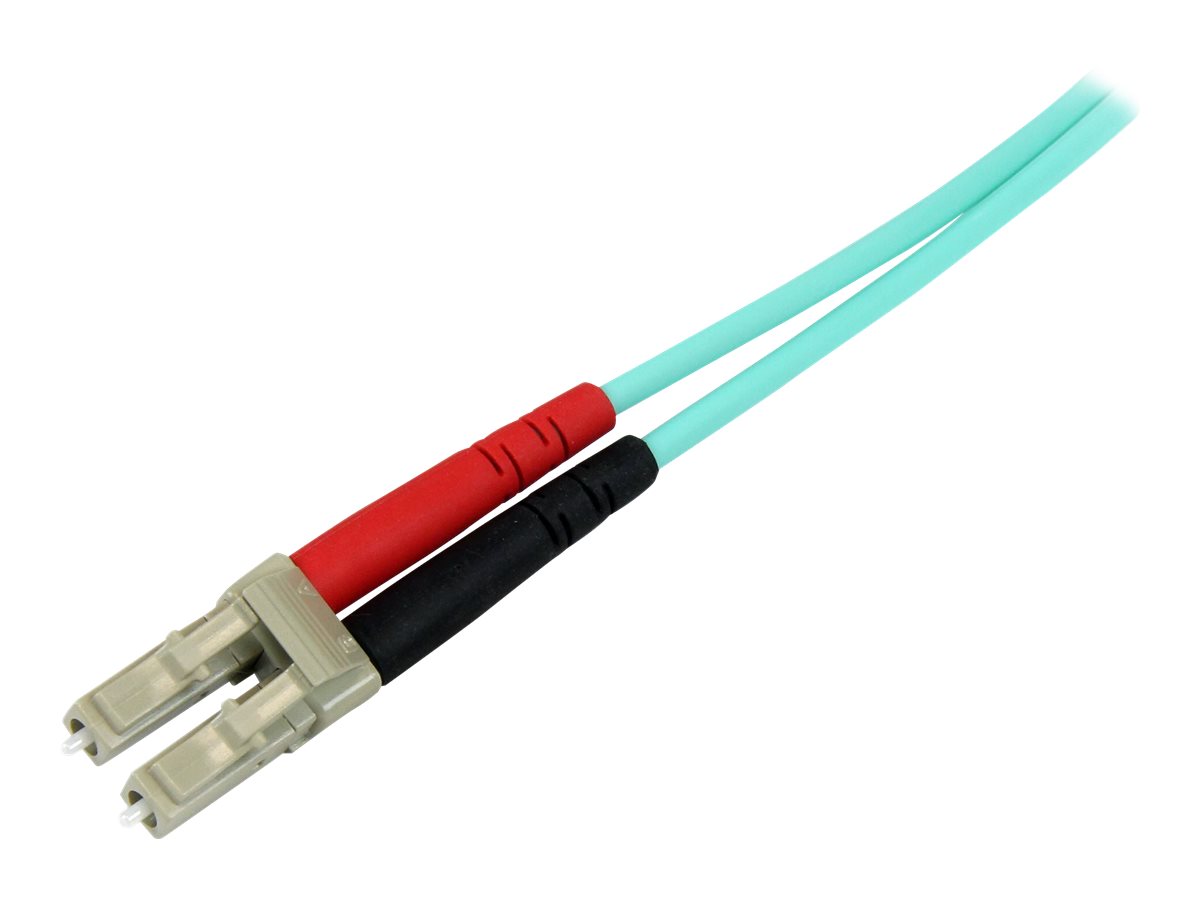

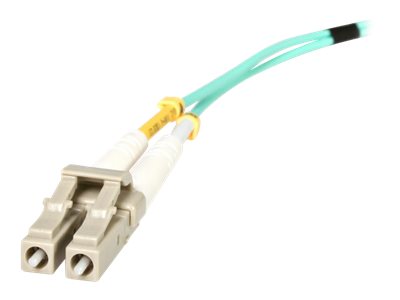

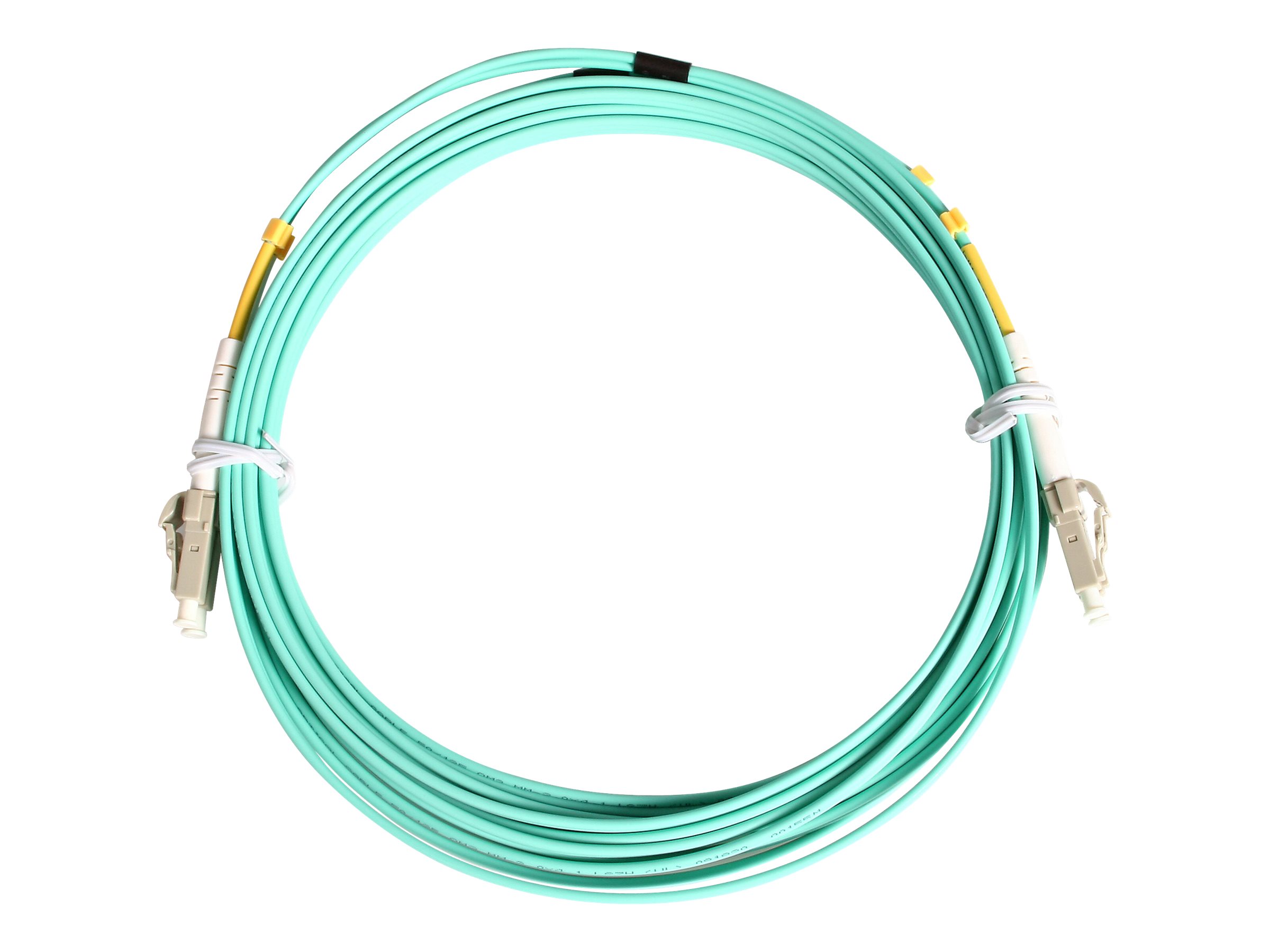

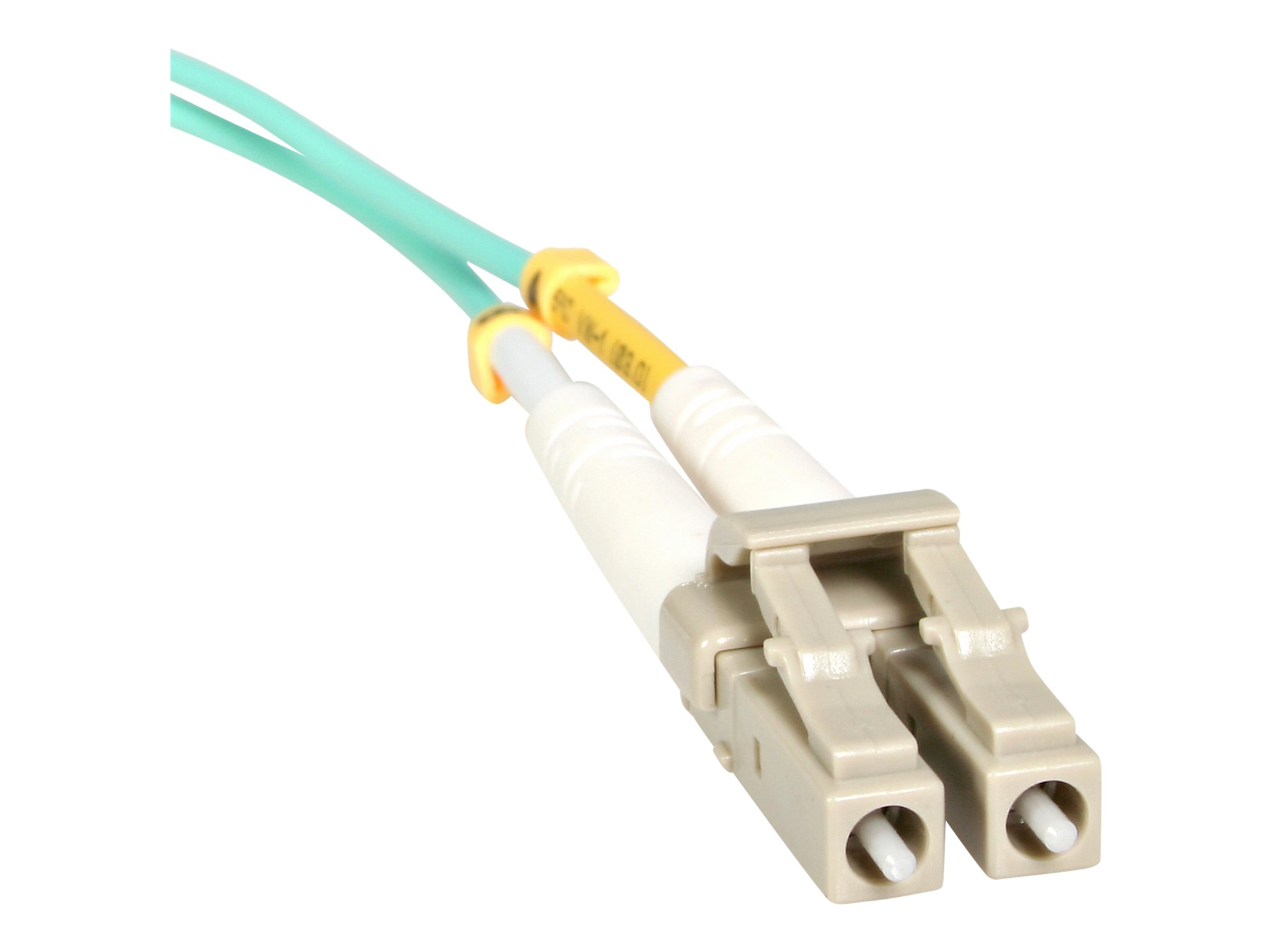

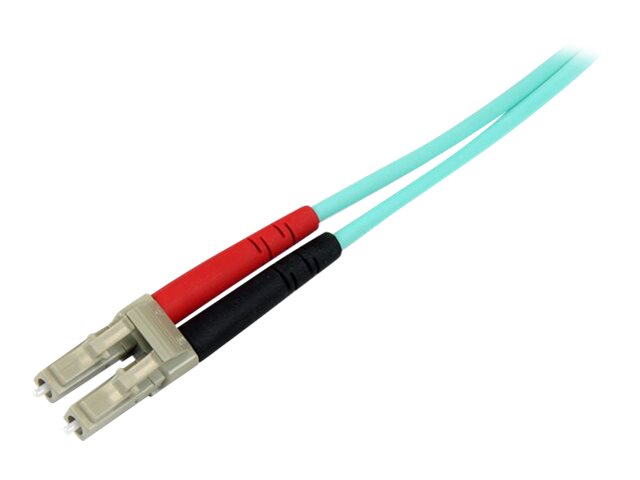

StarTech.com Patchkabel Fiberoptik 10m

StarTech.com 10m (30ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G Networks, LOMMF/VCSEL, <0.3dB Low Insertion Loss - LSZH Fiber Patch Cord - Patchkabel - LC multimodus (han) til LC multimodus (han) - 10 m - 10 m. - fiberoptik - duplex - 50 / 125 my - akvamarin - for P/N: MASFP10GBSR, SFP10GBLRMST, SFP10GBSRST, SFP10GSRSST, SFP10GSRXST, SV565FXHD4KU

  • Product no 988714645

    Model A50FBLCLC10

    Brand StarTech.com

    EAN 0065030827096

    Weight 0.14 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 10m (30ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G Networks, LOMMF/VCSEL, &lt;0.3dB Low Insertion Loss - LSZH Fiber Patch Cord - patchkabel - 10 m - 10 m. - akvamarin
Type Patchkabel
Teknologi Duplex fiberoptik
Fiberoptiktype Multimodus
Kabel længde 10 m
Længde 10 m.
Diameter af kore / belægning 50 / 125 my
Forbindelsesled 2 x LC multimodus - han
Stikforbindelse (anden ende) 2 x LC multimodus - han
Farve Akvamarin
Producentgaranti Begrænset livtidsgaranti
Designet for P/N: 455883B21ST, EXSFP10GESRS, J9150AST, J9152AST, MASFP10GBSR, SFP10GBLRMST, SFP10GBSRST, SFP10GLRMST, SFP10GSRSST, SFP10GSRST, SFP10GSRSTTA, SFP10GSRXST, SV565FXHD4KU
General
Color Aqua
Core / Cladding Diameter 50 / 125 micron
Fiber Qty 2
Jacket Material Low Smoke Zero Halogen (LSZH)
Length 10 m
Network Cable Type Patch cable
Technology Duplex fiber optic
Type of Fiber Optics Multimode
Connectivity
Connector 2 x LC multi-mode - male
Connector (Second End) 2 x LC multi-mode - male
Miscellaneous
Compliant Standards RoHS
Manufacturer Warranty
Service & Support Limited lifetime warranty
Compatibility Information
Designed For P/N: 455883B21ST, EXSFP10GESRS, J9150AST, J9152AST, MASFP10GBSR, SFP10GBLRMST, SFP10GBSRST, SFP10GLRMST, SFP10GSRSST, SFP10GSRST, SFP10GSRSTTA, SFP10GSRXST, SV565FXHD4KU

Deliver fast, reliable, data transfers, safely over high end networking equipment

  • 2x LC MM male connectors
  • Laser-optimized multimode fiber (LOMMF)
  • OM3 (50/125) 2000MHz multimode fiber
  • Compatible with 850nm VCSEL source
  • Attenuation loss meets or exceeds industry standards
  • Molded connectors
Deliver fast, reliable, data transfers, safely over high end networking equipment
slide {0} of {1}, zoom in, Deliver fast, reliable, data transfers, safely over high end networking equipment
slide {0} of {1}, zoom in, Deliver fast, reliable, data transfers, safely over high end networking equipment
Deliver fast, reliable, data transfers, safely over high end networking equipment

Suitable for installations under restrictive building codes, with LSZH rating

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Guaranteed reliability

Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

Applications

  • Use in 10 Gigabit High Speed Network Environments
  • Ideal solution for data applications requiring high speed data transmission
  • Broadband systems
  • Telecommunication/Data communication
  • Fiber Connections in Patch Panels, Hubs, Switches, Routers
