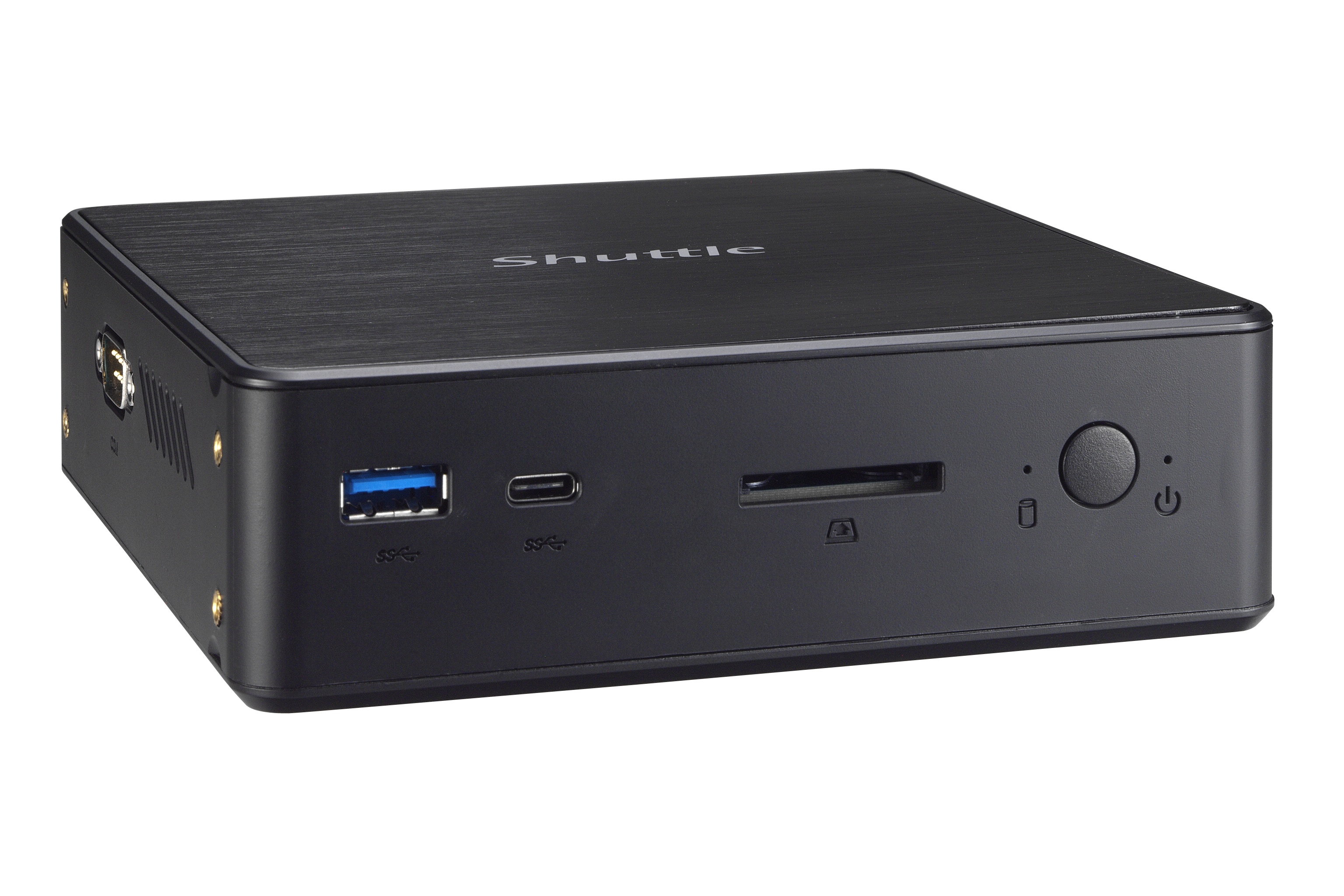

Shuttle XPC nano NC10U7 Mini PC I7-8565U 0GB No-OS
Shuttle XPC nano NC10U7 - Barebone - mini PC 1 x Core i7 8565U / op til 4.6 GHz ULV - RAM 0 GB - UHD Graphics 620 - Gigabit Ethernet - sort
-
Product no 995634935
Model NC10U7
Brand
Go to brand's websiteEAN 887993002002
Weight 1.44 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Indbygget processer | Ja |
| Hukommelses slots type | SO-DIMM |
| Antal hukommelsesstik | 2 |
| Understøttet datalagringsdrev typer | HDD & SSD |
| Understøttede lagerdisk størrelser | 2.5" |
| On-board grafikkort | Ja |
| Ethernet LAN | Ja |
| Wi-Fi | Ja |
| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 0 |
| Antal HDMI-porte | 1 |
| Antal VGA-porte (D-sub) | 0 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Produktfarve | Sort |
| Kølingstype | Aktiv |
| Produkttype | Mini PC barebone |
| Strømforsyningstype | Ekstern AC-adapter |
| General | |
|---|---|
| Color | Black |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Mini PC |
| Type | PC barebone |
| Processor / Chipset | |
| Clock Speed | 1.8 GHz |
| CPU | Intel Core i7 (8th Gen) 8565U |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.6 GHz |
| Number of Cores | Quad-Core |
| Power Efficiency | Ultra Low Voltage (ULV) |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| Cache Memory | |
| Cache Per Processor | 8 MB |
| Installed Size | L3 cache - 8 MB |
| RAM | |
| Features | Unbuffered, dual channel memory architecture |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB / 32 GB (max) |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR4 SDRAM - non-ECC |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Channel Qty | 1 |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Optical Storage | |
| Type | No optical drive |
| Card Reader | |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Type | Card reader |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 620 |
| Max Monitors Supported | 2 |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet Controller | Intel I211 |
| Features | Wake on LAN (WoL), PXE support |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8188EE |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" x 1/8H |
| Interfaces | 1 x USB 3.1 Gen 2 (1 in front) | 1 x USB-C 3.1 Gen 2 (1 in front) | 1 x HDMI | 1 x LAN (Gigabit Ethernet) | 1 x DisplayPort | 1 x headphones/microphone | 2 x USB 2.0 | 1 x serial |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key B-M) | 1 (total) / 0 (free) x M.2 Card - 2230 (Key A-E) |
| Miscellaneous | |
| Compliant Standards | VCCI, BSMI, CB, FCC, RoHS, ETL, ErP Ready, RCM, ErP 2009/125/EC, EMC 2014/30/EU, LVD 2014/35/EU, RED, RED 2014/53/EU |
| Included Accessories | Horizontal feet, VESA mounting kit, 2.5" HDD bracket, screw set |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Power | |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Drivers & Utilities |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Dimensions & Weight | |
| Depth | 14.2 cm |
| Height | 4.2 cm |
| Weight | 400 g |
| Width | 14.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 1.2 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
