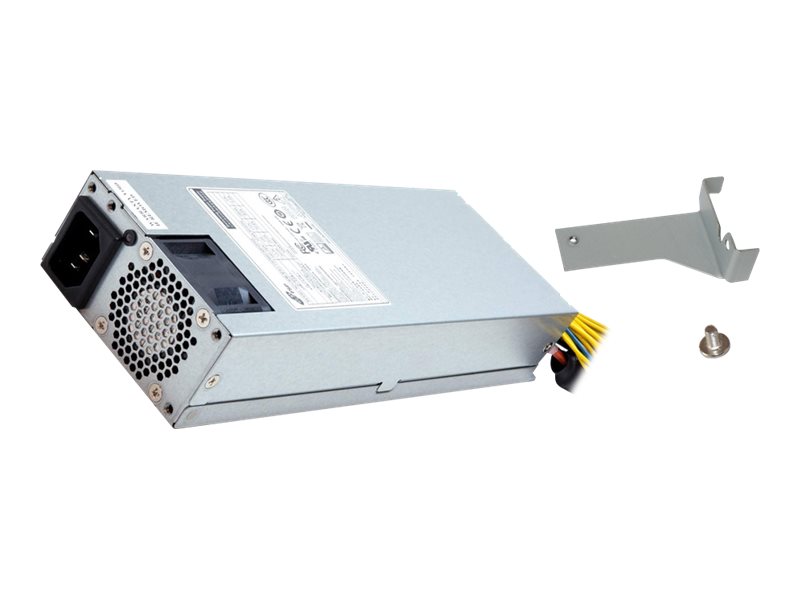

Shuttle PC850 850Watt 80 PLUS Platinum
Shuttle PC850 - Strømforsyning (intern) - 80 PLUS Platinum - AC 100-240 V - 850 Watt - aktiv PFC - for XPC cube SH370R6V2, SH370R8, SH510R4, SH570R6, SH570R8, SW580R8
-
Product no 1000741101
Model PC850
Brand
Go to brand's websiteEAN 4046047103829
Weight 1.44 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Shuttle PC850 - strømforsyning - 850 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| 80 PLUS certificering | 80 PLUS Platinum |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 850 Watt |
| Output Current | +12V - 70.8 A<br>+3.3V - 20 A<br>+5V - 20 A<br>+5VSB - 3 A<br>-12V - 0.5 A |
| Output-stikforbindelser | 1 x effekt ATX 20-pin<br>1 x effekt ATX12V 4-pin stik<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>4 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm |
| Kølesystem | 40mm blæser |
| Udstyr inkluderet | Vinkelholder med skrue |
| Dimensioner (B x D x H) | 8.15 cm x 22 cm x 4.05 cm |
| Miljømæssige standarder | ENERGY STAR |
| Designet for | XPC cube SH370R6V2, SH370R6V2 Plus, SH370R8, SH510R4, SH570R6, SH570R6 Plus, SH570R8, SW580R8 |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 92% at 50% Load, 90% at 20% Load, 89% at 100% Load |
| Frequency Required | 50/60 Hz |
| Input Voltage | AC 100-240 V |
| Output Current | +12V - 70.8 A | +3.3V - 20 A | +5V - 20 A | +5VSB - 3 A | -12V - 0.5 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Power Output Connectors Details | 1 x power 20 pin ATX | 1 x power 4 pin ATX12V connector | 2 x 8 pin PCI Express power with detachable 2 pin section | 4 x 15 pin Serial ATA power | 2 x 4 pin internal power |
| Miscellaneous | |
| Compliant Standards | TUV, EN 61000-3-2, CCC, FCC, ERP, CB 60950-1, CB 62368-1, UL/cUL, Energy Star 5.0 |
| Cooling System | 40 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, short-circuit protection |
| Included Accessories | Angle holder with screw |
| MTBF | 100,000 hours |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 22 cm |
| Height | 4.05 cm |
| Width | 8.15 cm |
| Compatibility Information | |
| Designed For | Shuttle XPC cube SH370R6V2, SH370R6V2 Plus, SH370R8, SH510R4, SH570R6, SH570R6 Plus, SH570R8, SW580R8 |
