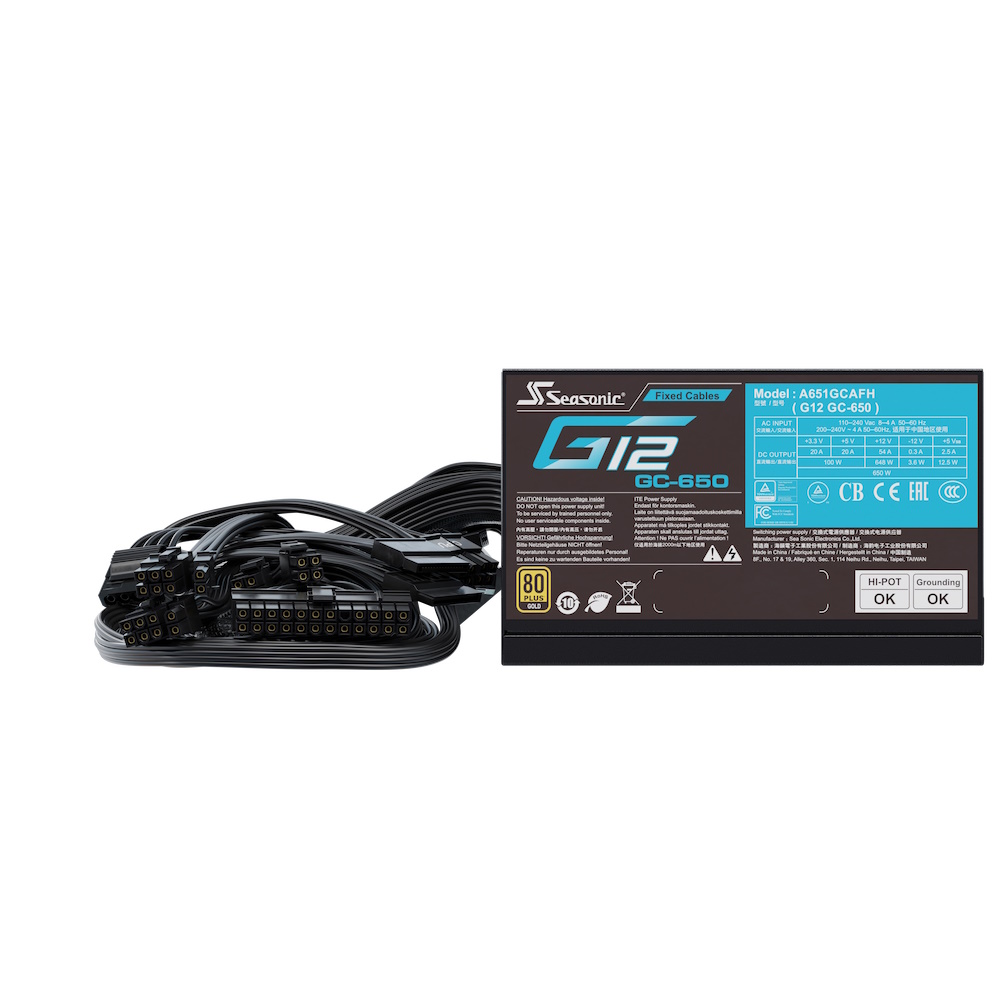

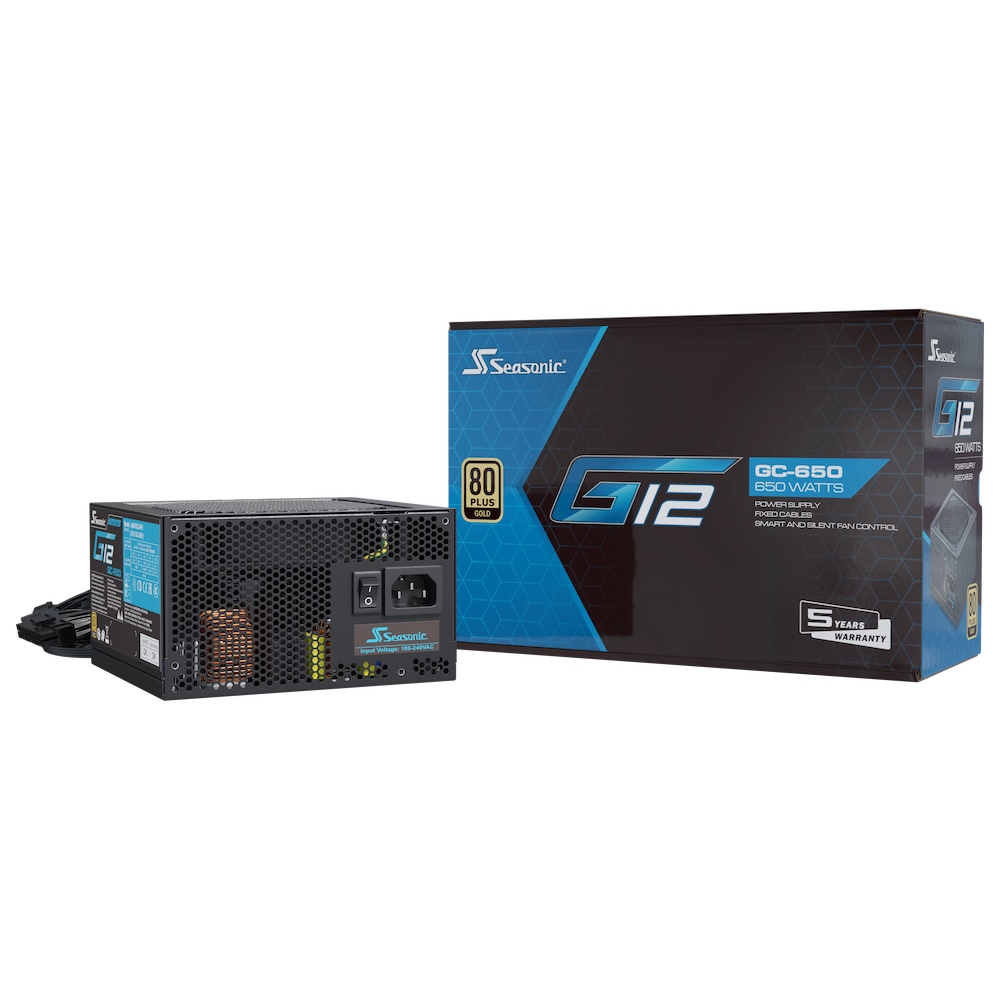

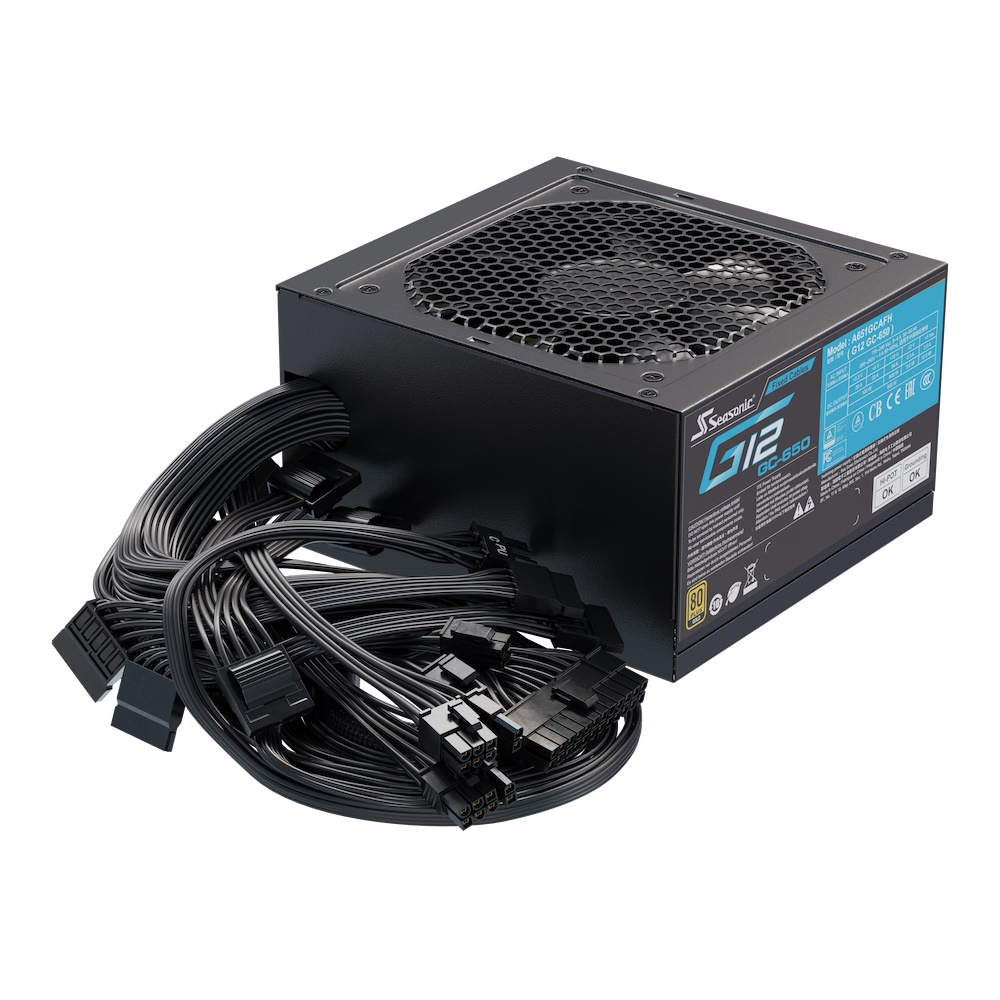

Seasonic G12 GC-650 (2024) Strømforsyning 650Watt ATX3.0
Seasonic G12 GC-650 (2024) - Strømforsyning - ATX - 80 Plus Bronze - 650W - ATX 3.0 - Ikke-modulær
-
Product no 1002429523
Model SSP-650RT2
Brand Sea Sonic Electronic
EAN 4711173878520
Weight 2.42 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| 80PLUS | Gold |
| Form Factor | ATX/EPS |
| Dimensions | 140 × 150 × 86 mm |
| Fan | 120 mm Sleeve Bearing |
| Cables | Fixed Cables - Flat Black |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range |
| Protection | OPP, OVP, OCP, SCP, OTP, UVP |
| AC Input | 100 V - 240 V @ 8 - 4 A (50/60 Hz) |
| DC Output | +3.3 V: 20 A, +5 V: 20 A, +12 V: 54 A, -12 V: 0.3 A. +5 VSB: 2.5 A |
| Total continuous power | 650 W |
| Cables | 1x MB (24/20 pins), 2x CPU (8/4 pins), 2x PCIe (8/6 pins), 2x SATA (3 connector), 1x Molex (3 connector) |
| Warranty | 5 Years |
| Strømstyring | |
|---|---|
| Effektivitet | 90% |
| Indgangsstrøm | 8 A |
| Kombineret effekt (-12V) | 3,6 W |
| Kombineret effekt (+12 V) | 648 W |
| Kombineret effekt (+3,3 V) | 100 W |
| Kombineret effekt (+5 VSB) | 12,5 W |
| Maks. udgangsstrøm (-12V) | 0,3 A |
| Maks. udgangsstrøm (+12 V) | 54 A |
| Maks. udgangsstrøm (+3,3 V) | 20 A |
| Maks. udgangsstrøm (+5 VSB) | 2,5 A |
| Strømbeskyttelsesfunktioner | Overstrøm, Overstrøm, Lavspænding, Over total voltage, Højspænding, Kortslutning |
| Total effekt | 650 W |
| Vekselstrømsindgangsfrekvens | 50/60 Hz |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Porte & Grænseflader | |
| Kabeltype | Ikke modulær |
| Præstation | |
| 80 PLUS certificering | 80 PLUS Gold |
| Formål | PC |
| Gennemsnitstid mellem fejl (MTBF) | 100000 t |
| Strømforsyningenhed (PSU) formfaktor | ATX |
| Design | |
| Antal blæsere | 1 blæser(e) |
| Kølingstype | Aktiv |
| Produktfarve | Sort |
| Tænd-/slukkontakt | Ja |
| Ventilator diameter | 12 cm |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm, CPU, PCIe, SATA |
| Godkendelser | |
| Certificering | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Compliance-certifikater | REACH, RoHS, WEEE |
| Vægt & størrelser | |
| Bredde | 150 mm |
| Dybde | 140 mm |
| Højde | 86 mm |
| Emballeringsdata | |
| Pakketype | Kasse |
