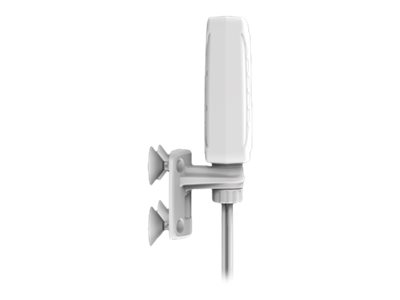

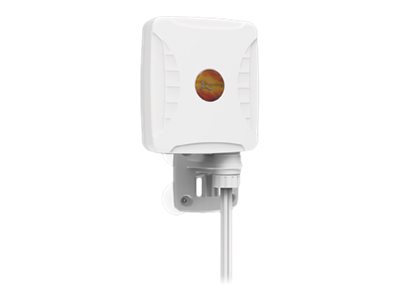

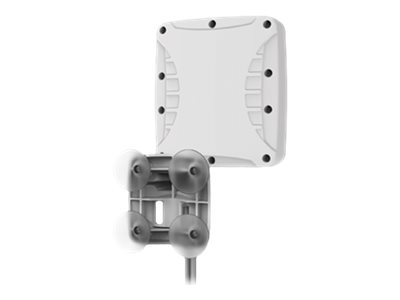

Poynting Antennas XPOL-1-5G Antenne 24.7cm Hvid
Poynting Antennas XPOL-1-5G - Antenne - mobil - 3 dBi - omni-directional - udendørs, Til montering på væg, stangmontering, indendørs, vindue - strålende hvid, pantone P 179-1 C
-
Product no 996111156
Model A-XPOL-0001-V2-21
Brand Poynting Antennas
EAN 6009710920763
Weight 0.95 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Poynting Antennas XPOL-1-5G - antenne |
| Produkttype | Antenne |
| Pakke Indhold | Væg/pælmonteringssæt |
| Dimensioner (B x D x H) | 15.7 cm x 8.8 cm x 24.7 cm |
| Vægt | 950 g |
| Farve | Strålende hvid, pantone P 179-1 C |
| Beregnet til | Mobil |
| Antenneplacering/montering | Udendørs, Til montering på væg, stangmontering, indendørs, vindue |
| Kompatibilitet | UMTS, HSPA, LTE, 3G, 4G, GSM1800, GSM900, W-CDMA, 5G, GSM1700, CDMA2000 |
| Frekvensrækkevidde | 698 - 960 MHz, 1710 - 2700 MHz, 3400 - 3800 MHz |
| Forstærkning | 3 dBi |
| Direktivitet | Omni-directional |
| Overensstemmelsesstandarder | IK10, IP65 |
| General | |
|---|---|
| Cable Length | 5 m |
| Depth | 8.8 cm |
| Enclosure Color | Brilliant white, pantone P 179-1 C |
| Height | 24.7 cm |
| Package Content | Wall/pole mount kit |
| Product Type | Antenna |
| Weight | 950 g |
| Width | 15.7 cm |
| Antenna | |
| Antenna Placing / Mounting | Outdoor, wall-mountable, pole mount, indoor, window |
| Compatibility | UMTS, HSPA, LTE, 3G, 4G, GSM1800, GSM900, W-CDMA, 5G, GSM1700, CDMA2000 |
| Directivity | Omni-directional |
| Frequency Range | 698 - 960 MHz, 1710 - 2700 MHz, 3400 - 3800 MHz |
| Gain | 3 dBi |
| Impedance | 50 Ohm |
| Intended For | Cellular |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
| Cabling & Wiring | |
| Connector Provided | 2 x SMA male |
| Miscellaneous | |
| Compliant Standards | IK10, IP65 |
| Features | Dust-resistant, rugged, vandal-resistant, weather-resistant, 2x2 MiMo function, UL flammability |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 10 cm |
| Shipping Height | 27 cm |
| Shipping Weight | 1.05 kg |
| Shipping Width | 19 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 98% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
