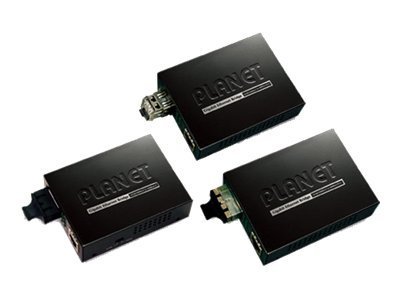

PLANET GT-805A Fibermedieomformer Ethernet Fast Ethernet Gigabit Ethernet

PLANET GT-805A - Fibermedieomformer - 1GbE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / SFP (mini-GBIC)

  • Product no 992932288

    Model GT-805A

    Brand PLANET Technology

    EAN 4711213686887

    Weight 0.5 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse PLANET GT-805A - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE
Enhedstype Fibermedieomformer - RJ-45 / SFP (mini-GBIC)
Model Ekstern
Kabeltype 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T
Dataoverførselshastighed 1 Gbps
Dataforbindelsesprotokol 10Mb LAN, 100Mb LAN, 1GbE
Dimensioner (B x D x H) 9.7 cm x 6.9 cm x 2.6 cm
General
Device Type Fiber media converter
Form Factor External
Networking
Cabling Type 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ah
Connectivity Technology Wired
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate 1 Gbps
Features Auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode
Status Indicators Power, link/activity
Expansion / Connectivity
Expansion Slots 1 SFP (mini-GBIC)
Interfaces 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
Miscellaneous
Compliant Standards FCC Class A certified
Power
Power Consumption Operational 5.6 Watt
Dimensions & Weight
Depth 6.9 cm
Height 2.6 cm
Width 9.7 cm
Environmental Parameters
Humidity Range Operating 5 - 90%
Max Operating Temperature 50 °C
Min Operating Temperature 0 °C
