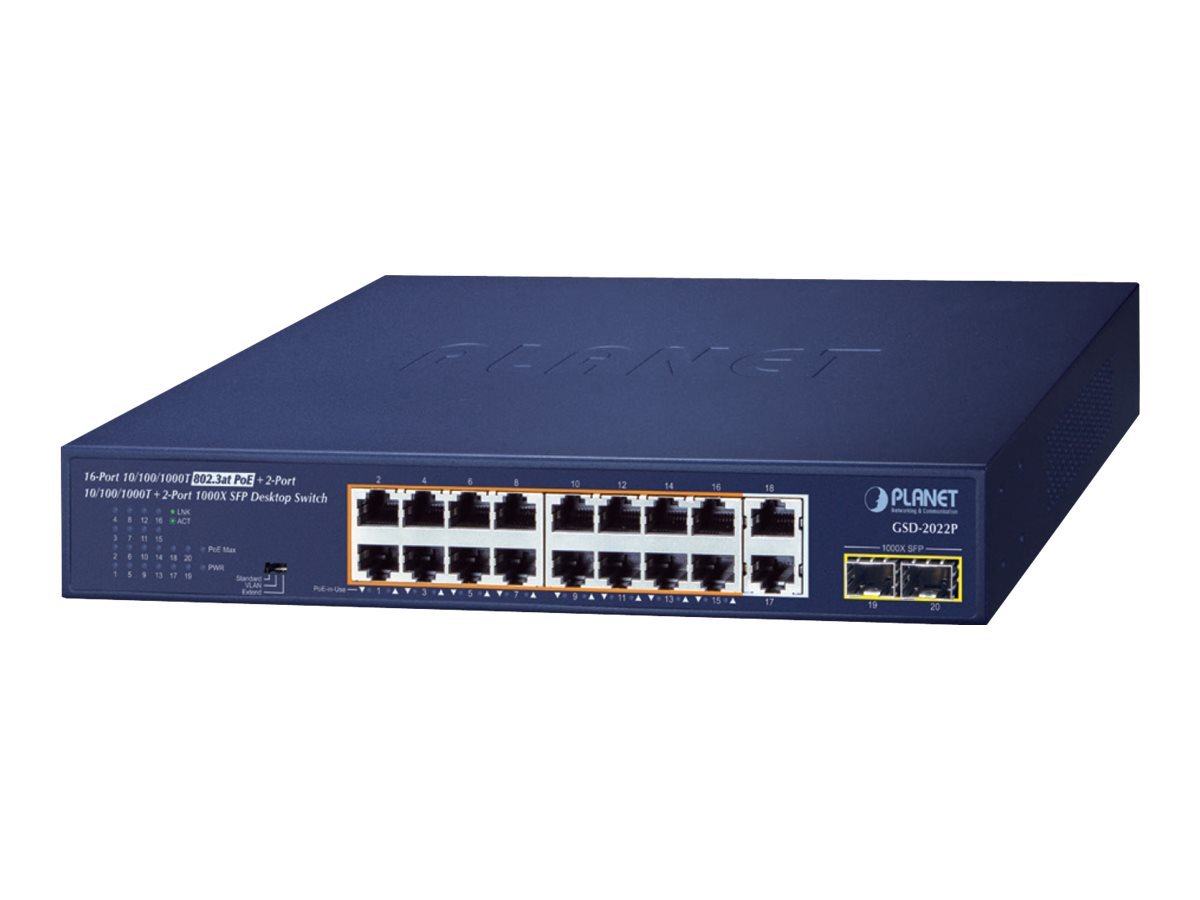

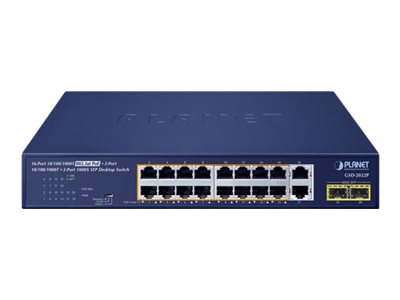

PLANET GSD-2022P Switch 20-porte Gigabit PoE+
PLANET GSD-2022P - Switch - ikke administreret - 16 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 2 x 1000Base-X SFP - desktop - PoE+ (185 W)
-
Product no 997708700
Model GSD-2022P
Brand PLANET Technology
EAN 4711605285582
Weight 2.42 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Switch-type | Ikke administreret |
| Basis omskiftning RJ-45 Ethernet porte, antal | 18 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 2 |
| Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| MAC adresselabel | 8000 entries |
| Switch kapacitet | 40 Gbit/sek. |
| Stativ-montering | Ja |
| Strøm over Ethernet (PoE) | Ja |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 20 ports - unmanaged |
| Enclosure Type | Desktop 1U |
| Features | Flow control, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, metal housing, Energy-Efficient Ethernet (EEE), 8KV ESD Protector (air-gap discharge), 6KV ESD Protector |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching fabric bandwidth: 40 Gbps | Switching throughput: 29.76 Mpps |
| PoE Budget | 185 W |
| Ports | 16 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 2 x 1000Base-X SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Status Indicators | Power, PoE, link/activity |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 30 W | 2 x 1000Base-T RJ-45 | 2 x 1000Base-X SFP |
| Power | |
| Power Consumption Operational | 201 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 A |
| Dimensions & Weight | |
| Depth | 28 cm |
| Height | 4.4 cm |
| Weight | 1.81 kg |
| Width | 18 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -10 °C |
