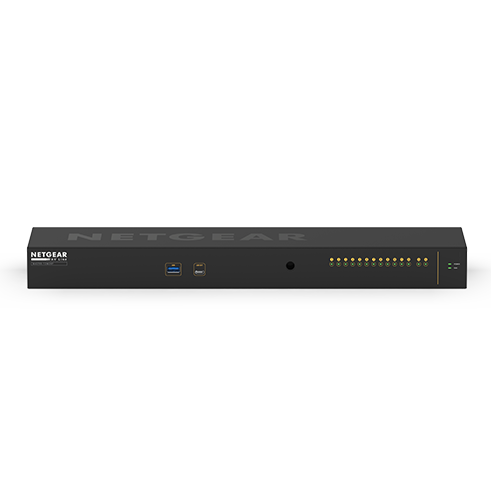

NETGEAR AV Line M4250-12M2XF Switch 14-porte 10 Gigabit
NETGEAR AV Line M4250-12M2XF - Switch - L3 - Administreret - 12 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+ - side til side-luftstrøm - monterbar på stativ
-
Product no 996482333
Model MSM4214X-100EUS
Brand NETGEAR
EAN 0606449149661
Weight 3.2 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Switch-type | Administreret |
| Basis omskiftning RJ-45 Ethernet porte, antal | 12 |
| Basis omskiftning RJ-45 Ethernet porttype | 2.5G Ethernet |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G understøttelse | Ingen |
| MAC adresselabel | 16000 entries |
| Switch kapacitet | 100 Gbit/sek. |
| Stativ-montering | Ja |
| Strøm over Ethernet (PoE) | Ingen |
| General | |
|---|---|
| Capacity | VLANs supported: 4093 | ARP entries: 4000 | Multicast entries (IPv4): 512 | Multicast entries (IPv6): 128 | Jumbo frame size: up to 12000 | IGMP multicast groups: 2000 | MSTP instances: 16 | PVST instances: 32 |
| Compliant Standards | IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav |
| Device Type | Switch - 14 ports - L3 - managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Features | VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (R |
| Flash Memory | 256 MB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 100 Gbps | Firewall throughput (64-byte packet size): 74.4 mpps | Latency (2.5 Gbps): 6.013 µs | Latency (10 Gbps): 0.807 µs |
| Ports | 12 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+ |
| Processor | X ARM A9: 1.25 GHz |
| RAM | 2 GB |
| Remote Management Protocol | RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS |
| Routing Protocol | RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2 |
| Status Indicators | Link/speed |
| Subtype | 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 12 x 10/100/1000/2.5G RJ-45 | 2 x 10GBase-X SFP+ | 1 x management (Gigabit LAN) RJ-45 | 1 x console RJ-45 | 1 x USB Type A | 1 x console (USB) Type C |
| Power | |
| Installed Qty | 1 |
| Power Consumption Operational | 37.9 Watt |
| Power Consumption Stand by | 14.1 Watt |
| Power Device | Internal power supply |
| Miscellaneous | |
| Cables Included | Console cable | USB-C to USB-A cable |
| Compliant Standards | CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2 |
| Included Accessories | Mounting brackets |
| Localization | Europe |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 4.32 cm |
| Weight | 1.745 kg |
| Width | 44 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
