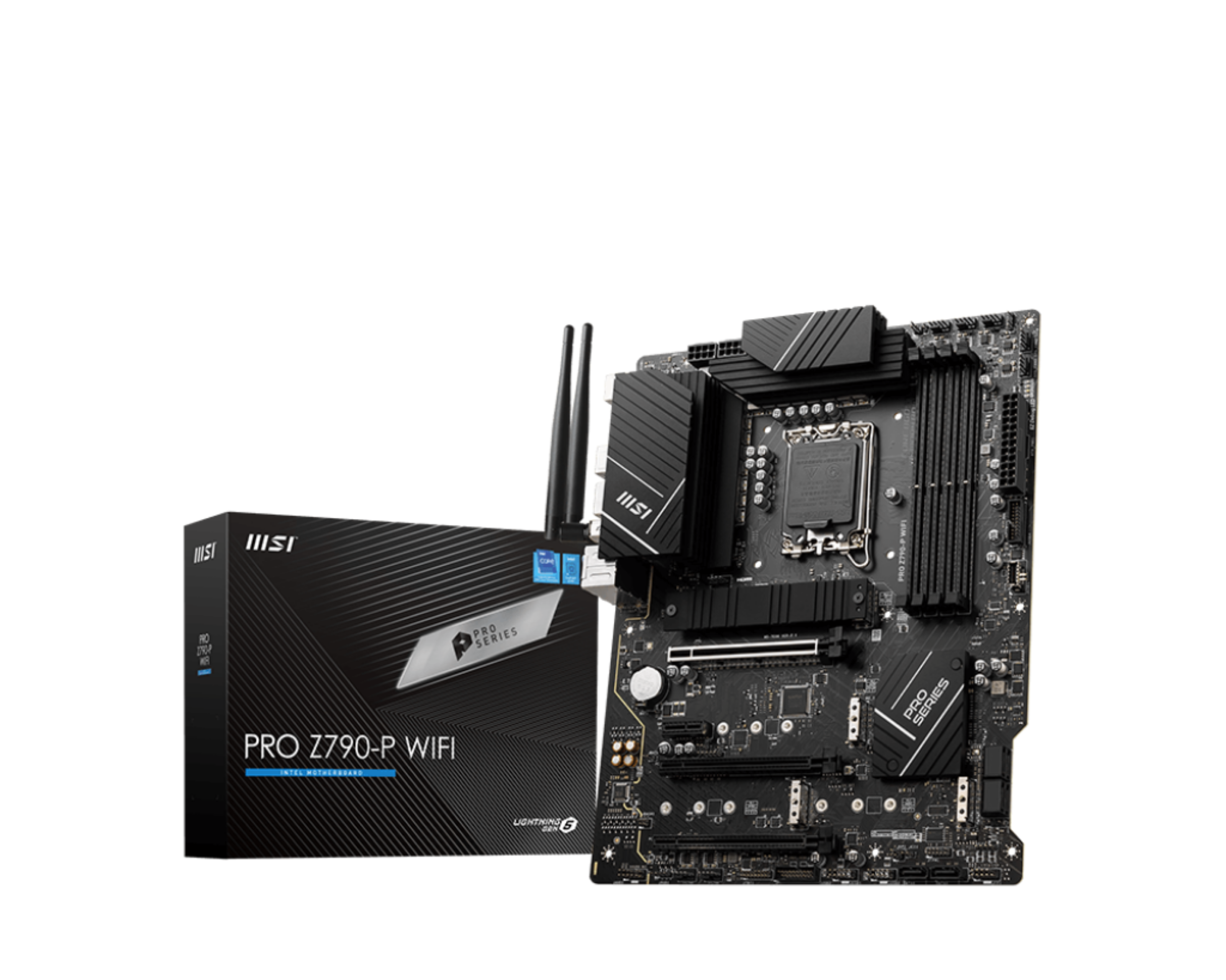

MSI PRO Z790-P WIFI ATX LGA1700 Intel Z790
MSI PRO Z790-P WIFI - Bundkort - ATX - LGA1700 sokkel - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Product no 1000832075
Model PRO Z790-P WIFI
Brand
Go to brand's websiteEAN 4711377015738
Weight 1.56 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Processorproducent | Intel |
| Processor sokkel | LGA 1700 |
| Kompatibel processor serie | Intel® Celeron®, Intel® Pentium® Gold |
| Understøttede hukommelsestyper | DDR5-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 128 GB |
| Understøttede lagerdrev brugerflader | M.2, PCI Express |
| Understøttelse af parallel behandlingsteknologi | Ikke understøttet |
| USB 2.0-stik | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 1 |
| Antal SATA III-stik | 6 |
| Antal USB 2.0-porte | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 1 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal VGA-porte (D-sub) | 0 |
| Antal HDMI-porte | 1 |
| Antal DVI-D-porte | 0 |
| Wi-Fi | Ja |
| Komponent til | PC |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel Z790 |
| Lyd-output kanaler | 7.1 kanaler |
| BIOS-type | UEFI AMI |
| General | |
|---|---|
| Chipset Type | Intel Z790 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - ATX |
| Supported RAM | |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 | 2 x PCIe 3.0 x1 |
| Interfaces | 1 x HDMI | 1 x DisplayPort | 2 x USB 3.2 Gen 1 | 4 x USB 2.0 | 1 x LAN (2.5Gigabit Ethernet) | 1 x USB-C Gen2x2 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-out (center/subwoofer) - mini-jack | 1 x audio line-out (re |
| Internal Interfaces | 4 x USB 2.0 - header | 4 x USB 3.2 Gen 1 - header | 1 x USB-C Gen2 - header | 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Features | |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | MSI Audio Boost, Debug LED, 6 Layer PCB, MSI Steel Armor, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, 14+1+1 Phase Power Design, Windows 11 compatible, Surface Mount Technology (SMT) |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.384 cm |
| Included Accessories | I/O back plate, Wi-Fi antenna, 3 x M.2 clips |
| Software Included | Drivers & utilities |
| Width | 30.48 cm |
