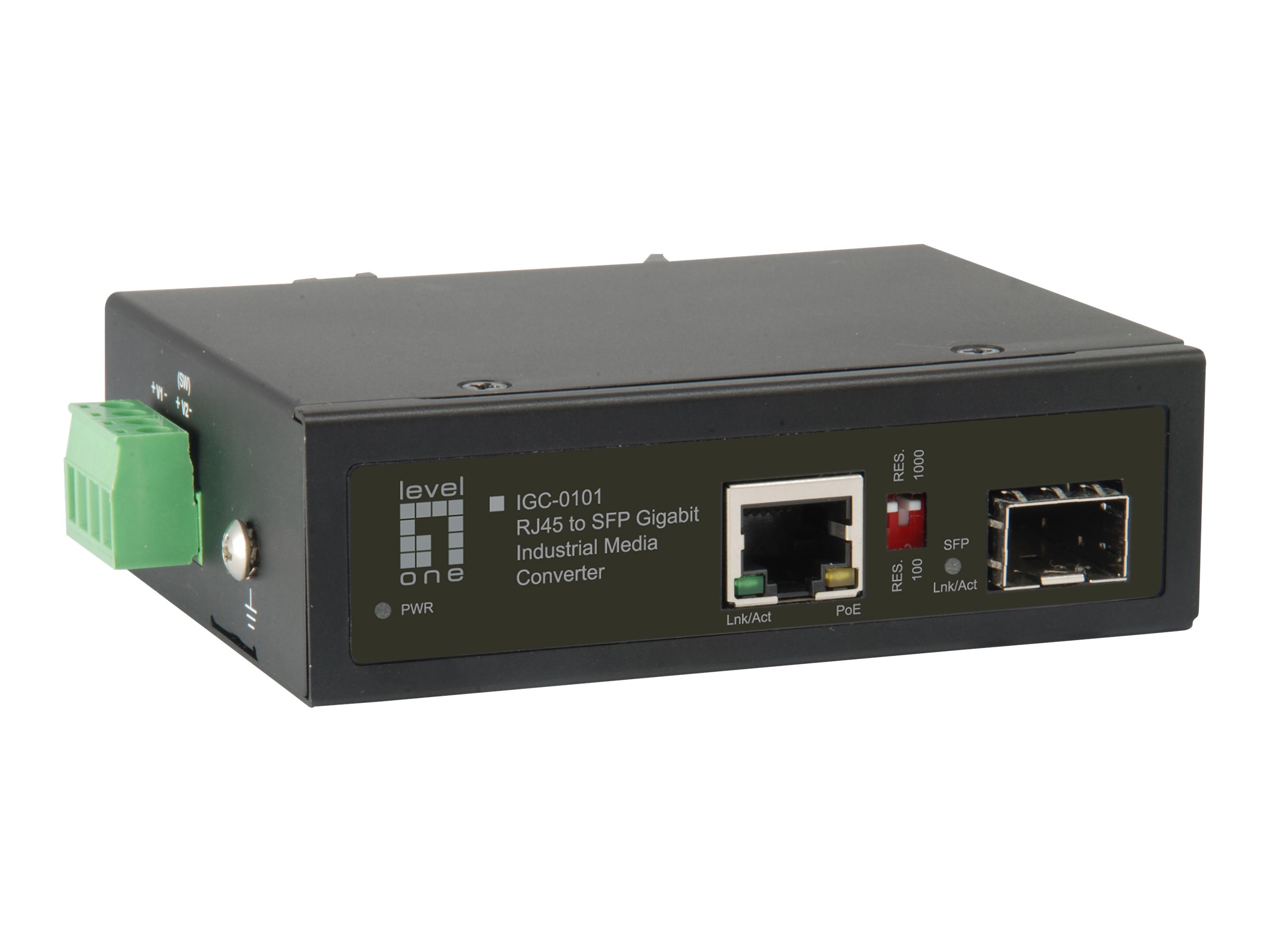

LevelOne IGC-0101 Medieomsætter Ethernet Fast Ethernet Gigabit Ethernet

LevelOne IGC-0101 - Medieomsætter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC)

  • Product no 993490030

    Model IGC-0101

    Brand LevelOne

    EAN 4015867203910

    Weight 0.13 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse LevelOne IGC-0101 - medieomsætter - 10Mb LAN, 100Mb LAN, 1GbE
Enhedstype Medieomsætter - RJ-45 / SFP (mini-GBIC)
Model Væg/DIN-skinnemonterbar
Kabeltype 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X
Dataforbindelsesprotokol 10Mb LAN, 100Mb LAN, 1GbE
Power Over Ethernet (PoE) PoE+
Dimensioner (B x D x H) 10.35 cm x 3.2 cm x 8.15 cm
Vægt 135 g
General
Device Type Media converter
Form Factor Wall / DIN rail mountable
Networking
Cabling Type 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Connectivity Technology Wired
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
Features Flow control, 9 KB Jumbo Frame
Status Indicators Power, PoE, link/activity, SFP
Expansion / Connectivity
Interfaces 1 x Ethernet 1000Base-T (PoE+) - RJ-45 female - 30 W | 1 x Ethernet 1000Base-X - SFP female
Miscellaneous
Compliant Standards VCCI, FCC Part 15 B Class A, EN 55022 Class A, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6, IEC/EN 60950-1
Included Accessories DIN-rail mounting kit
MTBF 500,000 hours
Power
Installed Qty 1
Power Consumption Operational 2 Watt
Power Device External power adapter
Power Over Ethernet (PoE) PoE+
Dimensions & Weight
Depth 3.2 cm
Height 8.15 cm
Weight 135 g
Width 10.35 cm
Environmental Parameters
Humidity Range Operating 5 - 95% (non-condensing)
Max Operating Temperature 75 °C
Min Operating Temperature -40 °C
