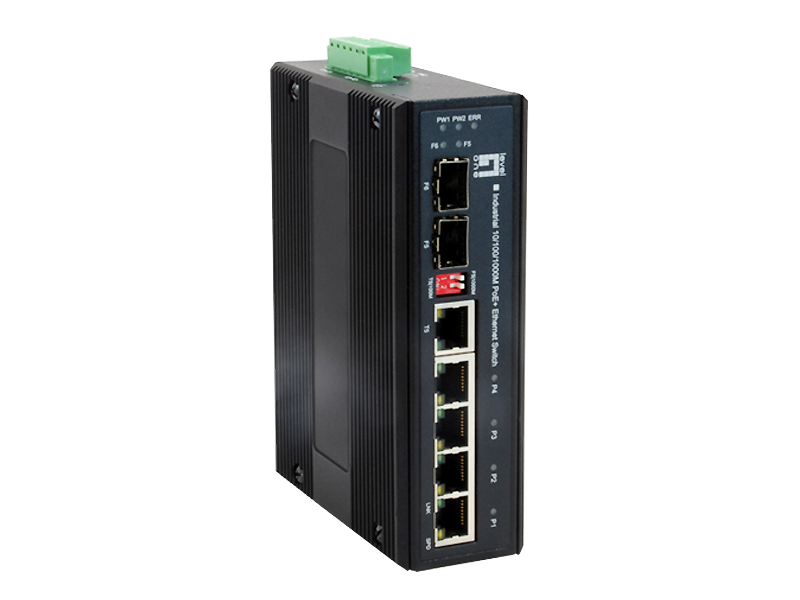

LevelOne IES-0620 Switch Gigabit PoE+

LevelOne IES-0620 - Switch - ikke administreret - 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP + 1 x combo Gigabit SFP - DIN monterbar på skinne - PoE+ (126 W) - DC strøm

  • Product no 988880349

    Model IES-0620

    Brand LevelOne

    EAN 4015867188514

    Weight 0.72 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Basis omskiftning RJ-45 Ethernet porte, antal 4
Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
MAC adresselabel 1024 entries
Switch kapacitet 12 Gbit/sek.
Strøm over Ethernet (PoE) Ja
General
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Device Type Switch - unmanaged
Enclosure Type DIN rail mountable
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, 1MB packet buffer, PoE overcurrent protection, PoE circuit sorting protection
Jumbo Frame Support 10KB
MAC Address Table Size 1K entries
Performance Forwarding performance: 1488000 pps | Backplane speed: 12 Gbps
PoE Budget 126 W
Ports 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP + 1 x combo Gigabit SFP
Power Over Ethernet (PoE) PoE+
Status Indicators Port transmission speed, power, link/activity
Subtype Gigabit Ethernet
Expansion / Connectivity
Interfaces 4 x 1000Base-T RJ-45 PoE+ - 30 W | 2 x 1000Base-X SFP | 1 x 1000Base-T RJ-45
Power
Power Consumption Operational 6 Watt
Power Redundancy Yes
Voltage Required DC 12 - 55 V
Miscellaneous
Compliant Standards EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 B Class A, IP30
Dimensions & Weight
Depth 10.5 cm
Height 3.8 cm
Weight 720 g
Width 4 cm
Environmental Parameters
Humidity Range Operating 5 - 95% (non-condensing)
Humidity Range Storage 5 - 95% (non-condensing)
Max Operating Temperature 40 °C
Max Storage Temperature 75 °C
Min Operating Temperature 0 °C
Min Storage Temperature -40 °C
