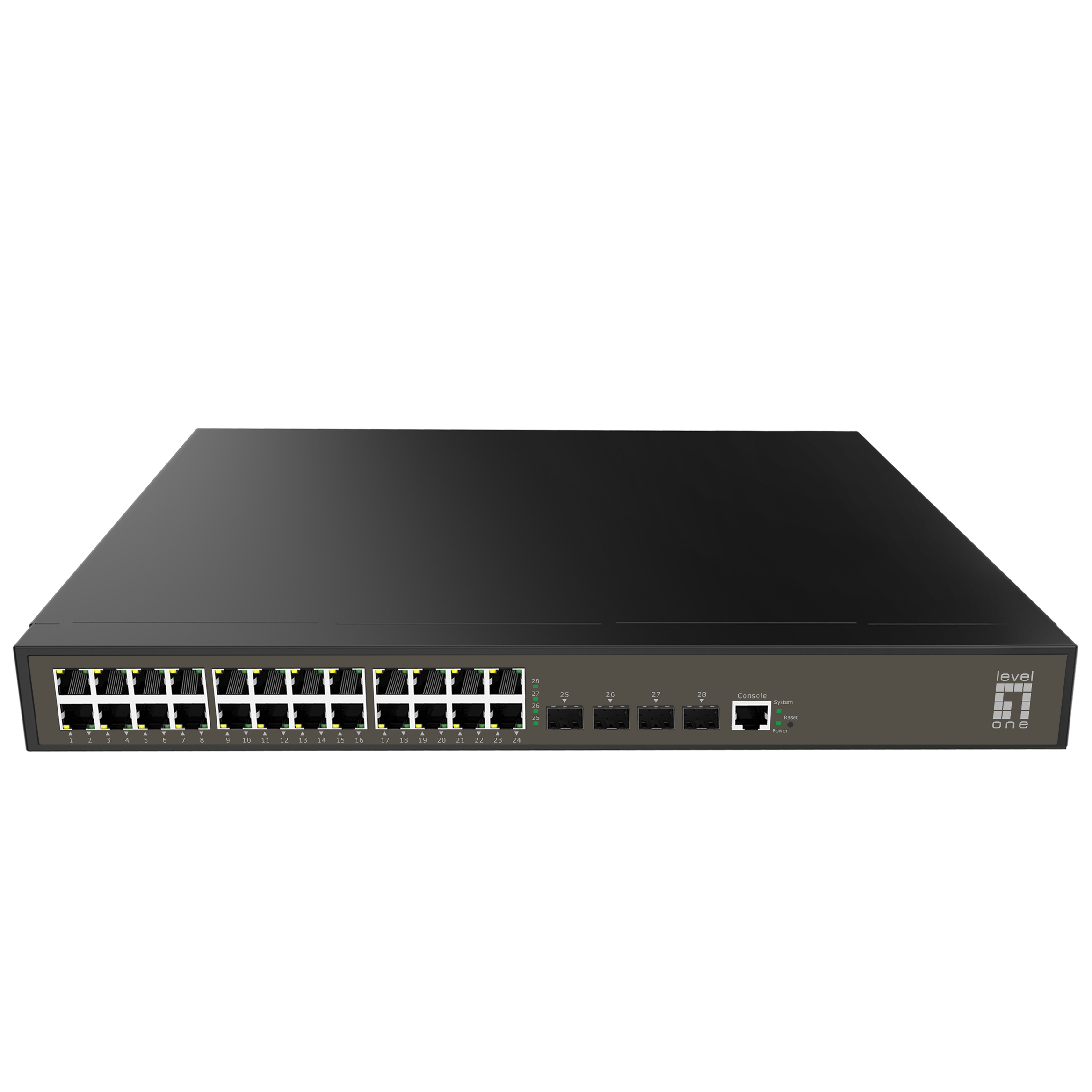

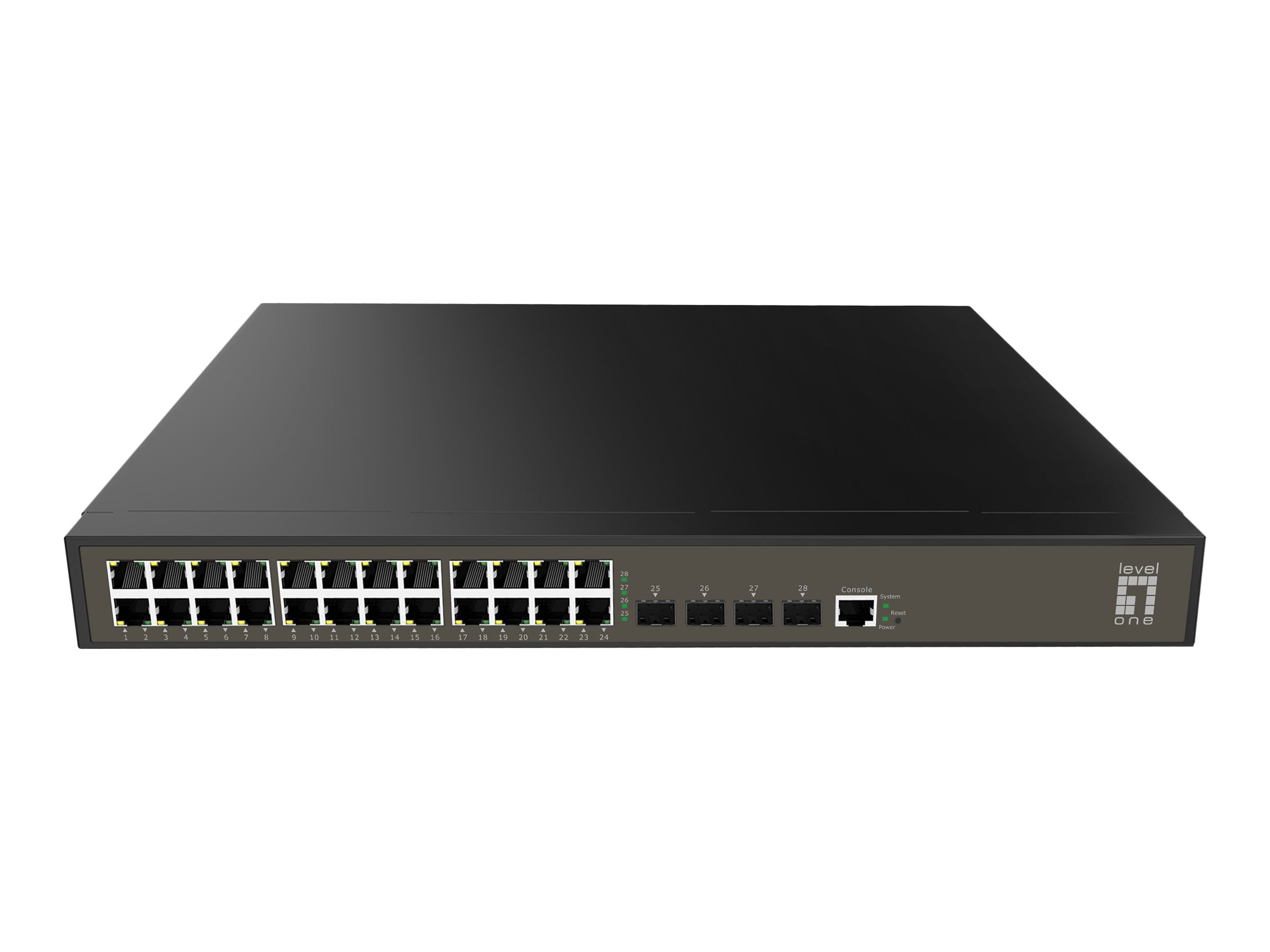

LevelOne GEL-2871 Switch 28-porte Gigabit
LevelOne GEL-2871 - Switch - Administreret - 24 x 10/100/1000 + 4 x combo Gigabit SFP - desktop, monterbar på stativ
-
Product no 1000733260
Model GEL-2871
Brand LevelOne
EAN 4015867228579
Weight 3.7 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Switch-type | Administreret |
| Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G understøttelse | Ingen |
| MAC adresselabel | 16000 entries |
| Switch kapacitet | 1000 Gbit/sek. |
| Stativ-montering | Ja |
| Stabelbar | Ingen |
| Strømkilde | Vekselstrøm |
| Strømforsyning inkluderet | Ja |
| Strøm over Ethernet (PoE) | Ingen |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS |
| Capacity | Packet buffer size: 12 Mbit |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az |
| Device Type | Switch - 28 ports - managed |
| Enclosure Type | Desktop, rack-mountable |
| Features | Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple |
| Flash Memory | 512 MB |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 16K entries |
| Performance | Backplane bandwidth: 56 Gbps |
| Ports | 24 x 10/100/1000 + 4 x combo Gigabit SFP |
| RAM | 256 MB |
| Remote Management Protocol | SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, NTP |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Status Indicators | Power, link/activity |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-T RJ-45 | 4 x SFP | 1 x console RJ-45 management |
| Power | |
| Power Consumption Operational | 36 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Miscellaneous | |
| Cables Included | 1 x console cable |
| Color | Black |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, RoHS, EN 55032, EN 55035, IEC/EN 62368-1, FCC Part 15 Subpart B |
| MTBF | 534,057 hours |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 24.5 cm |
| Height | 4.4 cm |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Humidity Range Storage | 5 - 95% |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
