HPE Aruba 4100i Switch 12-porte Gigabit Ethernet PoE Class 4 / PoE Class 6
HPE Aruba 4100i - Switch - 8 x 10/100/1000 (PoE Class 4) + 4 x 10/100/1000 (PoE Class 6) + 2 x SFP+ - DIN monterbar på skinne - PoE Class 4 / PoE Class 6
-
Product no 999358164
Model JL817A
Brand Hewlett Packard Ente
EAN 0190017486871
Weight 4.26 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba 4100i - switch - 12 porte |
| Enhedstype | Switch - 12 porte |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 (PoE Class 4) + 4 x 10/100/1000 (PoE Class 6) + 2 x SFP+ |
| Power Over Ethernet (PoE) | PoE Class 4 / PoE Class 6 |

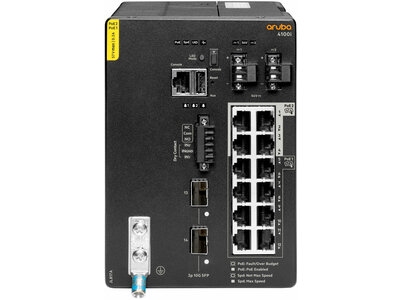

HPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE and 4p Class6 PoE 2p SFP+ DIN Mount Switch
The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and secure access with enhanced security, the CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces. Based on the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio, this IP30 ruggedized series helps deliver a more consistent and efficient operator experience. This Layer 2 series has convenient built-in high speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the CX 4100i series also simplifies ownership with no switch software licensing requirements.
Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
Layer 2 feature set with static routing and no switch software licensing required.
HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
HPE Aruba Networking Virtual Switching Framework (VSF) now available to scale up local network resources and resiliency requirements.
Ruggedized Access Switch Series
- The HPE Aruba Networking CX 4100i Switch Series provides IP30 Ethernet connectivity with high speed uplinks, 30W and 60W PoE, to securely extend the enterprise network and support IoT in harsh environments.
- Uses the HPE Aruba Networking CX Switch Operating System (AOS-CX) for a simpler, more consistent operator experience with capabilities fit for ruggedized access.
- Achieve versatile deployment with fanless 12 port DIN rail mount and 24 port 1U rack mount models with built-in 1/10 GbE uplinks and up to 360W Class 4 and Class 6 PoE.
- Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, and IPv6 support.
- Simplifies ownership with no switch software licensing or subscriptions required.
AI-ready performance and power
- The HPE Aruba Networking CX 4100i Switch Series is designed with ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption needed to support AI, Wi-Fi 7, and IoT requirements.
- Deploy IoT devices and wireless access points in harsh environments with models that support up to 360W IEEE 802.3at Class 4 and IEEE 802.3.bt Class 6 Power over Ethernet.
- Built-in wire speed 1/10 GbE uplinks remove bottlenecks at the access layer where devices connect.
- Operational in extended temperatures from -40°C to 70°C using HPE Aruba Networking's industrial transceivers.
Simplified Configuration and Management
- The CX 4100i series provides flexibility to manage and simplify configurations with HPE Aruba Networking Switch Multi-Edit Software, easy to use built-in web GUI, or industry standard CLI.
- HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
- Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
- Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance stacking.
Smarter Segmentation
- The CX 4100i series supports dynamic segmentation that automatically applies and enforces user, device, and application-aware policies on wired and wireless infrastructures.
- Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
- It reduces time-consuming and error-prone task of adds, moves and changes.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 4 x 100M/1G Base-T Class 6 PoE ports, supporting up to 60W per port 8 x 100M/1G Base-T Class 4 PoE ports, supporting up to 30W per port 2 x 1G/10G SFP ports 1 x USB-C console port 1 x RJ45 console 1 x USB Type-A host port 1 x Alarm socket |
| Memory and processor | 4 GB DDR3 32 GB eMMC Dual Core ARM Cortex A9 @ 1016 Mhz |
| Latency | 1 Gbps: 2.390 μSec , 10 Gbps: 2.038 μSec Average Latency (LIFO-64-bytes packets) |
| Throughput | Up to 95 Mpps depending on the model |
| Switching capacity | Up to 128 Gbps depending on the model |
| PoE capability | Refer to Installation and Getting Started Guide for the PoE budget setup. |
| Stacking capabilities | No stacking capability |
| Management features | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software. |
| Power supply | Field replaceable Industrial DIN Rail Power Supplies Supported PSUs: JL819A, JL820A and JL821A Supported 2 PSU with redundancy, non-sharing See external PSU specification table for available PoE power |
| Input voltage | AC voltage: 100V-240V (JL819A and JL820A) DC voltage: 12V-48V nominal, UL Certified to: 11V-55V (JL821A) |
| Power consumption | With JL819A PSU: Idle: 22W 100% Traffic Rate: 26W 100% Traffic Rate (w/ heater): 55W With JL820A PSU: Idle: 24W 100% Traffic Rate: 28W 100% Traffic Rate (w/ heater): 57W With JL821A PSU: Idle: 22W 100% Traffic Rate: 27W 100% Traffic Rate (w/ heater): 56W Note: Heater will only turn on at extreme low temperature condition. |
| Heat dissipation | With JL819A PSU: 89 BTU/hr at 230V - Room temperature (25°C) With JL820A PSU: 95 BTU/hr at 230V - Room temperature (25°C) With JL821A PSU: 94 BTU/hr at 48V - Room temperature (25°C) |
| Product dimensions (metric) | H:160 mm x W:113 mm x D:162.9 mm (D:173.5 mm w/DIN Rail Bracket) |
| Weight | 3.71 kg |
