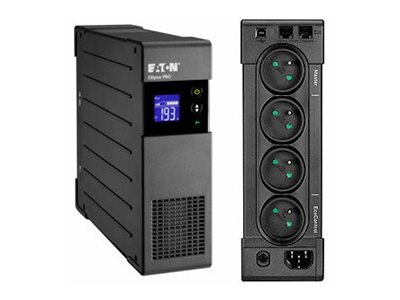

Eaton Ellipse PRO 850 UPS 510Watt 850VA

Eaton Ellipse PRO 850 - UPS - AC 230 V - 510 Watt - 850 VA - 9 At - USB - output-stikforbindelser: 4 - 2U - 19"

  • Product no 990963132

    Model ELP850FR

    Brand Eaton Corporation

    EAN 0743172437402

    Weight 7.3 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA
Enhedstype UPS - ekstern
Rackstørrelse 19" - 2U
Vægt 7.3 kg
Indgangspænding AC 230 V
Udgangspænding AC 220/230/240 V + 15% / - 20%
Strømkapacitet 510 Watt / 850 VA
Input-stik 1 x strøm IEC 60320 C14
Output-stikforbindelser 3 x strøm CEE 7/5 (UPS og overspænding)<br>1 x strøm CEE 7/5 (overspænding)
Batteri Blysyre - 9 At
Driftstid (op til) 9 min ved halv belastning
Netværk USB
Dimensioner (B x D x H) 8.2 cm x 28.5 cm x 26 cm
Producentgaranti 3 års garanti
General
Device Type UPS - external
Height (Rack Units) 2U
Rack Size 19"
Power Device
Circuit Protection Circuit breaker
Dataline Surge Protection Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Frequency Provided 50/60 Hz
Frequency Required 50/60 Hz
Input Connectors 1 x power IEC 60320 C14
Input Voltage AC 230 V
Input Voltage Range AC 165 - 285 V
Input Voltage Range (Adjustable) AC 150 - 285 V
Output Voltage AC 220/230/240 V + 15% / - 20% - 50/60 Hz
Power Capacity 510 Watt / 850 VA
Power Output Connectors Details 3 x power CEE 7/5 (UPS and surge) | 1 x power CEE 7/5 (surge)
Surge Suppression Yes
UPS Technology Line interactive
Battery
Capacity 9 Ah
Run Time (Up To) 9 min at half load | 5 min at 70% load
Technology Lead acid
Networking
Remote Management Interface USB
Expansion / Connectivity
Interfaces 1 x management (USB) - 4 pin USB Type B
Miscellaneous
Cables Included USB cable - external
Compliant Standards CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2
Features Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets
Rack Mounting Kit Optional
Software / System Requirements
Software Included Eaton UPS Companion
Manufacturer Warranty
Service & Support Limited warranty - 3 years | Limited warranty - batteries - 3 years
Environmental Parameters
Humidity Range Operating 0 - 85%
Max Operating Temperature 35 °C
Min Operating Temperature 0 °C
Dimensions & Weight
Depth 28.5 cm
Height 26 cm
Weight 7.3 kg
Width 8.2 cm
