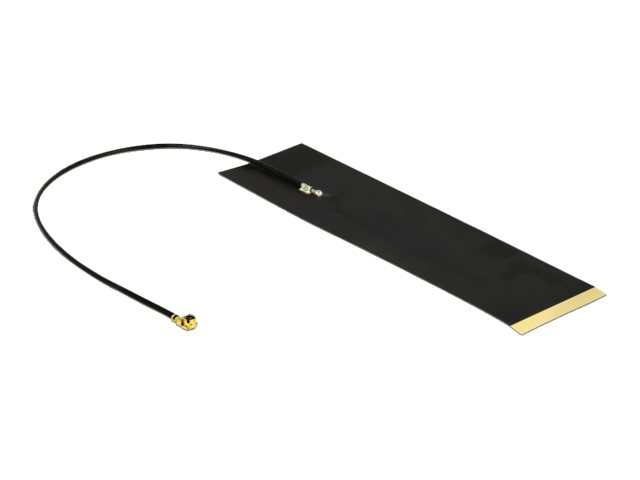

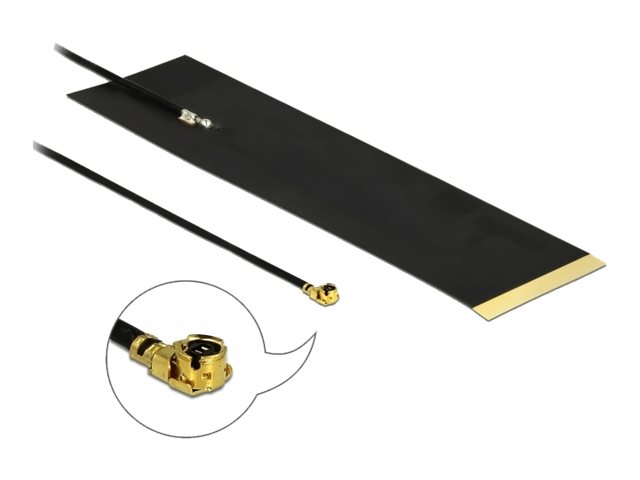

DeLOCK LTE Antenna MHF I plug 1.9 - 3.9 dBi 1.13 15 cm FPC internal self adhesive Antenne Sort
Delock LTE Antenna MHF I plug 1.9 - 3.9 dBi 1.13 15 cm FPC internal self adhesive - Antenne - Smart Home - 1.9 - 3.9 dBi - klæbende montering - sort
-
Product no 994732699
Model 12612
Brand DeLOCK
EAN 4043619126125
Weight 0.1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Delock LTE Antenna MHF I plug 1.9 - 3.9 dBi 1.13 15 cm FPC internal self adhesive - antenne |
| Produkttype | Antenne |
| Dimensioner (B x D x H) | 2.5 cm x 9 cm |
| Farve | Sort |
| Beregnet til | Mobil, Wi-Fi, Bluetooth, Smart Home, telefon |
| Antenneplacering/montering | Klæbende montering |
| Kompatibilitet | DECT, UMTS, GSM, LTE, ISM, Bluetooth, WLAN 2.4 GHz, ZigBee, LoRa, NB-IoT |
| Frekvensrækkevidde | 1.71 - 2.17 GHz, 824 - 960 MHz, 2.3 - 2.7 GHz, 698 - 791 MHz |
| Forstærkning | 1.9 - 3.9 dBi |
| General | |
|---|---|
| Cable Length | 15 cm |
| Depth | 9 cm |
| Enclosure Color | Black |
| Product Type | Antenna |
| Width | 2.5 cm |
| Antenna | |
| Antenna Placing / Mounting | Adhesive mount |
| Compatibility | DECT, UMTS, GSM, LTE, ISM, Bluetooth, WLAN 2.4 GHz, ZigBee, LoRa, NB-IoT |
| Frequency Range | 1.71 - 2.17 GHz, 824 - 960 MHz, 2.3 - 2.7 GHz, 698 - 791 MHz |
| Gain | 1.9 - 3.9 dBi |
| Impedance | 50 Ohm |
| Intended For | Cellular, Wi-Fi, Bluetooth, Smart Home, phone |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 - 4.5:1 |
| Miscellaneous | |
| Features | For indoor use |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
