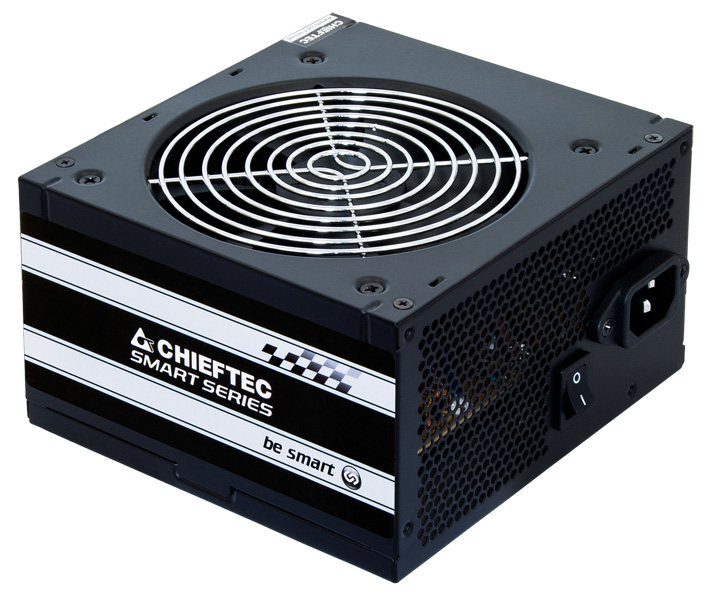

Chieftec Smart Series GPS-600A8 600Watt 80 PLUS
Chieftec Smart Series GPS-600A8 - Strømforsyning (intern) - ATX12V 2.3/ EPS12V - 80 PLUS - AC 230 V - 600 watt - aktiv PFC - sort
I dag har systemintegratorer ikke kun brug for et holdbart og kvalitetsbevidst chassis til deres pc-samlebånd, men også en yderst pålidelig strømforsyningskilde. Chieftecs strømforsyningsenheder i Smart-serien opfylder disse og flere krav.
-
Product no 987669537
Model GPS-600A8
Brand Chieftec Industrial
EAN 4710713239555
Weight 1.71 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Total effekt | 600 W |
| Vekselstrømsindgangsspænding | 230 V |
| Motherboard, strømstik | 20+4 pin ATX |
| Perifere (Molex) strømstik (4-pin) | 2 |
| Formål | PC |
| Strømforsyningenhed (PSU) formfaktor | ATX |
| 80 PLUS certificering | Nej |
| General | |
|---|---|
| Color | Black |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.3/ EPS12V |
| Power Device | |
| 80 PLUS Certification | 80 PLUS |
| Efficiency | 80% |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 230 V |
| Output Current | +3.3V - 20 A | +5V - 20 A | +12V - 46 A | -12V - 0.3 A | +5VSB - 2.5 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 4 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connector | 2 x 8 pin PCI Express power with detachable 2 |
| Miscellaneous | |
| Compliant Standards | CB, FCC, RoHS, EuP Ready |
| Cooling System | 120 mm fan |
| Features | Sleeved cables, overheat protection, overcurrent protection, overvoltage protection, overload protection, undervoltage protection, short-circuit protection |
| MTBF | 100,000 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 8.7 cm |
| Width | 15 cm |
