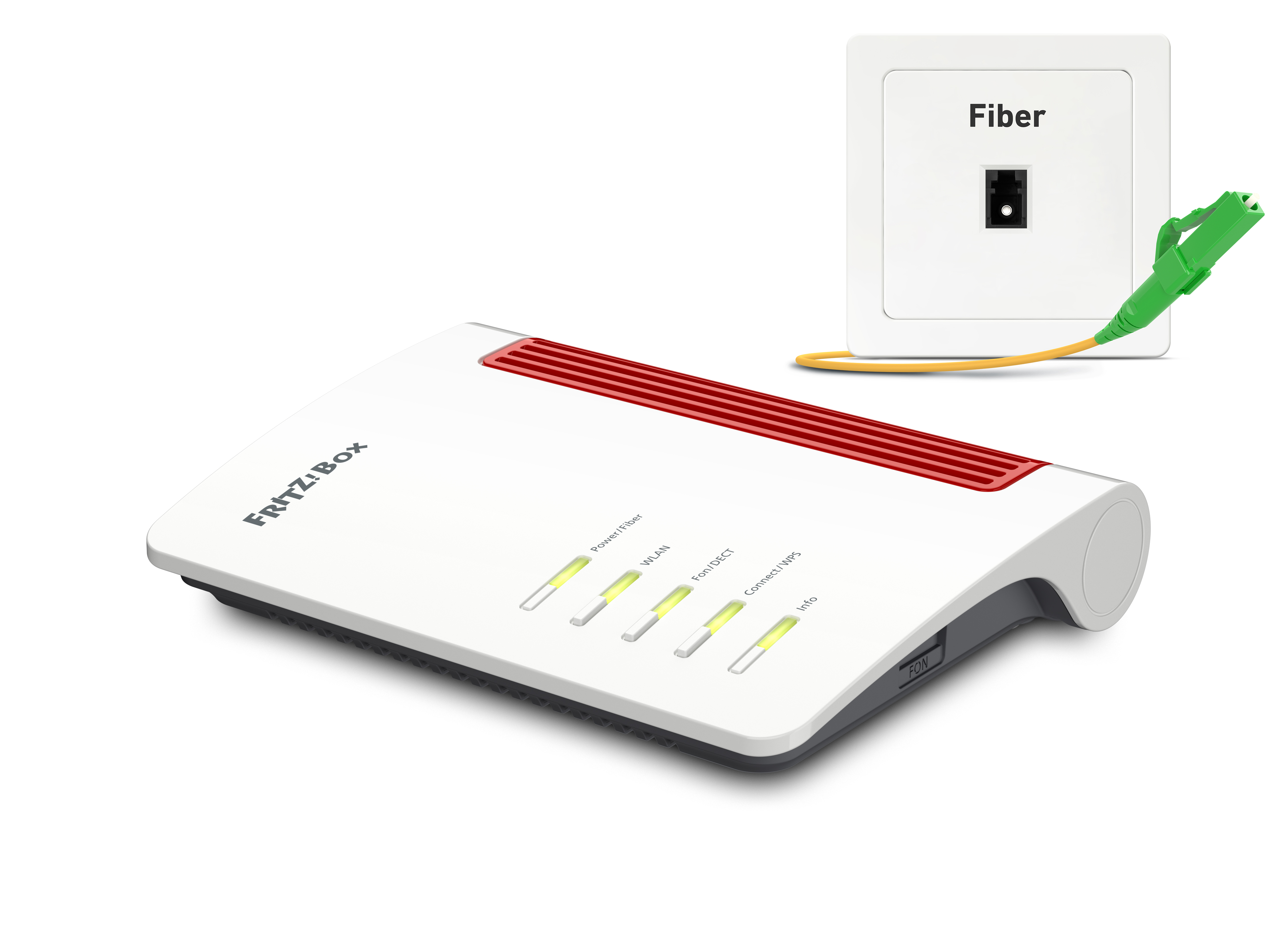

AVM FRITZ!Box 5530 Fiber Trådløs router
AVM FRITZ!Box 5530 Fiber - Trådløs router - GPON-terminal/stemmekort 3-port switch - 1GbE, 2.5GbE, GPON, XGS-PON, AON - Wi-Fi 6 - Dual Band - VoIP telefon adapter (DECT)
-
Product no 999016549
Model 20002960
Brand AVM Computersysteme
EAN 4023125029608
Weight 0.75 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | AVM FRITZ!Box 5530 Fiber - trådløs router - GPON-terminal/stemmekort - Wi-Fi 6 - desktop |
| Enhedstype | Trådløs router - GPON-terminal/stemmeinterfacekort - 3-port switch (integreret) |
| Pakningstype | Desktop |
| Antal WAN porte | 1 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, GPON, XGS-PON, AON, IEEE 802.11ax (Wi-Fi 6) |
| Frekvensbånd | 2,4 GHz/5 GHz |
| Dataoverførselshastighed | 3 Gbps |
| Præstation | Maksimum datahastighed (2,4 GHz): 600 Mbps<br>Maksimum datahastighed (5 GHz): 2400 Mbps |
| VoIP-funktionalitet | VoIP telefon adapter (DECT) |
| VoIP-protokoller | SIP |
| Grænseflader til telefoni | 1 telefon (FXS), DECT |
| Egenskaber | Firewallbeskyttelse, NAT-understøtning, VPN support, WOL, IPv6 understøttet, forældrekontrol, Mesh networking, ACS, indbygget DECT telefon base station, WPS, DHCP server, SPIF, dobbelt-stream (2x2), gæsteadgang, DynDNS |
| Overensstemmelsesstandarder | IEEE 802.3ah, ITU-T G.652, IEEE 802.3bz, ITU-T G.984.2, ITU-T G.984.5, ITU-T G.9807 |
| Dimensioner (B x D x H) | 20.8 cm x 15 cm x 3.7 cm |
| Lokalisering | Tyskland |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3ah, ITU-T G.652, IEEE 802.3bz, ITU-T G.984.2, ITU-T G.984.5, ITU-T G.9807, ITU-T G.652 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, GPON, 802.11ax, XGS-PON, AON |
| Data Transfer Rate | 3 Gbps |
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | Desktop |
| Encryption Algorithm | WPA2, WPA3 |
| Features | Firewall protection, NAT support, VPN support, wake on LAN (WOL), IPv6 support, parental control, Mesh networking, Auto Channel Select (ACS), built-in DECT phone base station, Wi-Fi Protected Setup (WPS), DHCP server, Stateful Packet Inspection Firew |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 600 Mbps | Maximum data rate (5 GHz): 2400 Mbps |
| Communications | |
| Type | GPON terminal / voice interface card |
| IP Telephony | |
| IP Telephony Features | Call transfer, 3-way conferencing, Do-not-disturb (DND) support, call diversion |
| Telephony Interfaces | 1 phone (FXS), DECT |
| VoIP Functionality | VoIP phone adapter (DECT) |
| VoIP Protocols | SIP |
| Expansion / Connectivity | |
| Interfaces | LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | LAN: 1 x 2.5GBase-T - RJ-45 | WAN: 1 x AON/GPON/XGS-PON - SFP (mini-GBIC) | Phone line: 1 x RJ-11 |
| Antenna | |
| Antenna | Internal |
| Power | |
| Power Device | External power adapter |
| Miscellaneous | |
| Cables Included | 1 x fiber optic cable - 4 m | 1 x network cable - 1.5 m |
| Included Accessories | FRITZ!SFP AON, FRITZ!SFP GPON |
| Localization | Germany |
| Software / System Requirements | |
| OS Provided | FRITZ!OS |
| Dimensions & Weight | |
| Depth | 15 cm |
| Height | 3.7 cm |
| Width | 20.8 cm |
