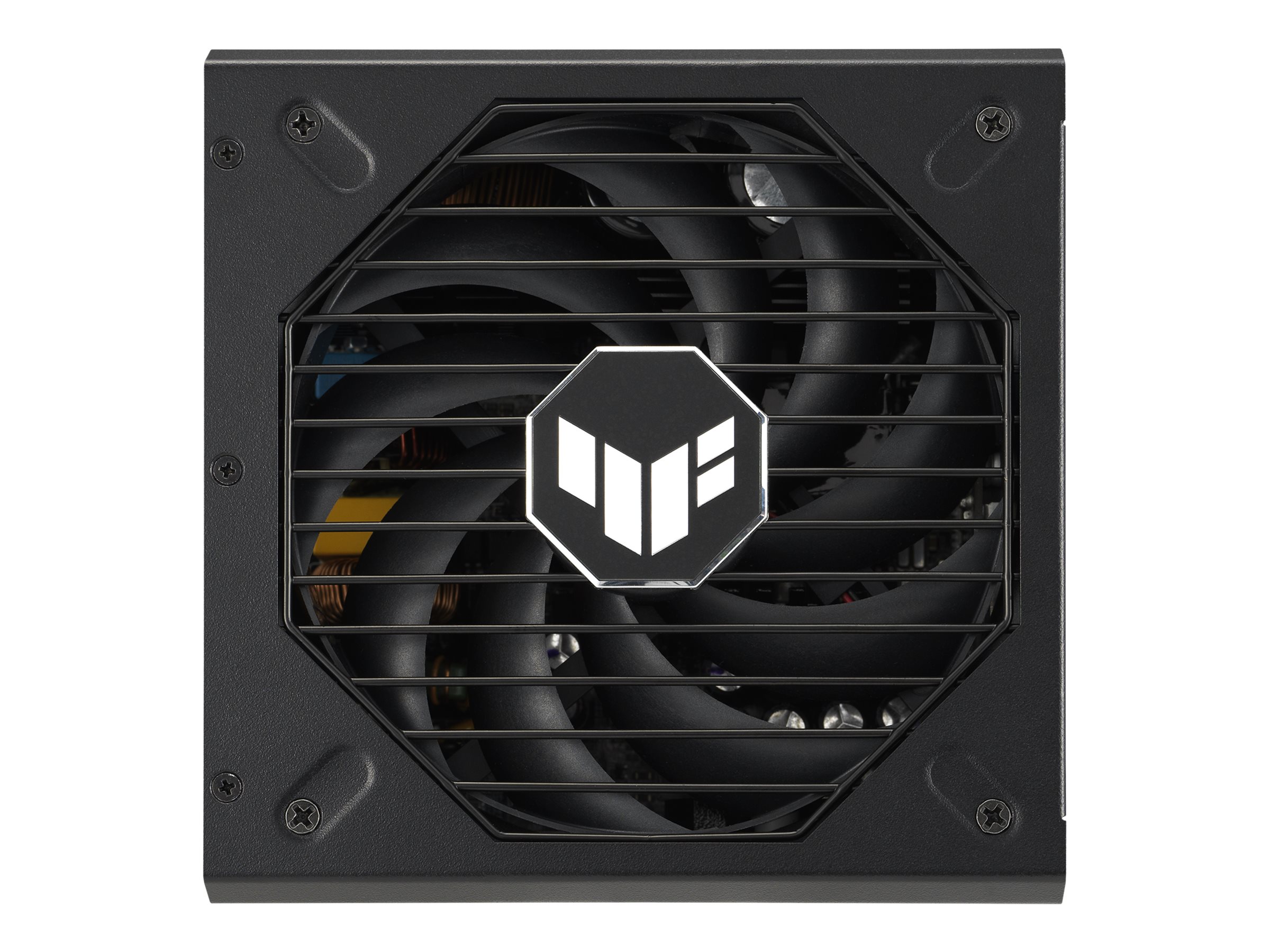

ASUS TUF Gaming 850Watt 80 PLUS Gold
ASUS TUF Gaming - Strømforsyning (intern) - ATX12V - 80 PLUS Gold - AC 100-240 V - 850 Watt
-
Product no 1000802673
Model 90YE00S2-B0NA00
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081786573
Weight 3.12 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASUS TUF Gaming - strømforsyning - 850 Watt |
| Enhedstype | Strømforsyning - intern |
| Specifikationsoverensstemmelse | ATX12V |
| 80 PLUS certificering | 80 PLUS Gold |
| Vægt | 2.38 kg |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 850 Watt |
| Output Current | +3.3V - 25 A<br>+5V - 25 A<br>+12V - 70.8 A<br>-12V - 0.8 A<br>+5VSB - 3 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>1 x 16-pin PCI Express-strøm<br>4 x 4-PIN intern strøm<br>5 x 15 pin Serial ATA strøm |
| Modulær Kabel Administration | Ja |
| Udstyr inkluderet | Kabelbånd |
| Dimensioner (B x D x H) | 15 cm x 15 cm x 8.6 cm |
| Producentgaranti | 10-års garanti |
| General | |
|---|---|
| Device Type | Power supply - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Current | +3.3V - 25 A | +5V - 25 A | +12V - 70.8 A | -12V - 0.8 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 3 x 8 pin PCI Express power with detachable 2 pin section | 1 x 16 pin PCI Express power | 4 x 4 pin internal power | 5 x 15 pin Serial |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Features | Overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, Axial-tech fan design |
| Included Accessories | Cable ties |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Dimensions & Weight | |
| Depth | 15 cm |
| Height | 8.6 cm |
| Weight | 2.38 kg |
| Width | 15 cm |
