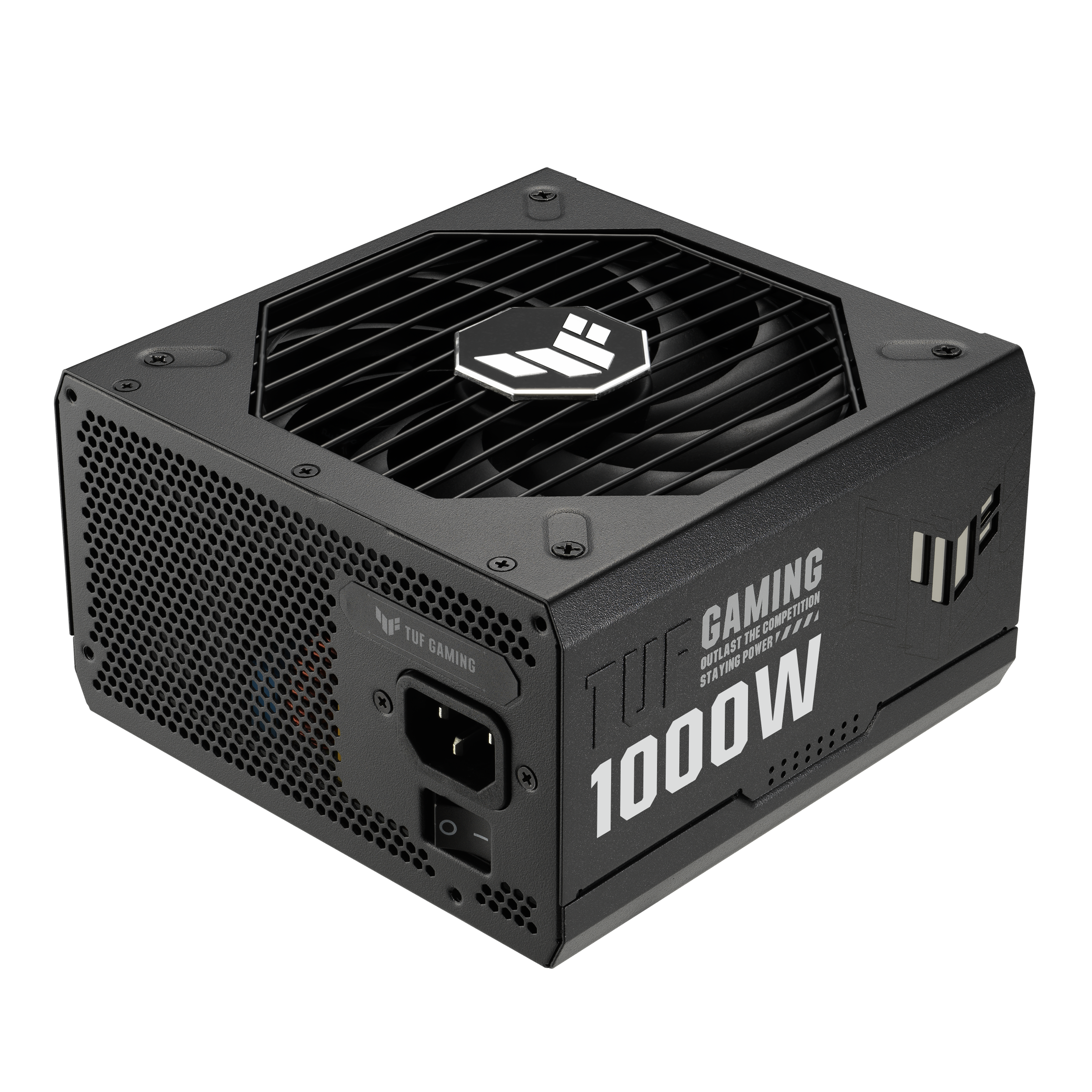

ASUS TUF Gaming 1000Watt 80 PLUS Gold

ASUS TUF Gaming - Strømforsyning (intern) - ATX12V - 80 PLUS Gold - AC 100-240 V - 1000 Watt

  • Product no 1000802672

    Model 90YE00S1-B0NA00

    Brand ASUSTeK COMPUTER
    Go to brand's website

    EAN 4711081786412

    Weight 3.24 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Total effekt 1000 W
Vekselstrømsindgangsspænding 100 - 240 V
Motherboard, strømstik 20+4 pin ATX
Perifere (Molex) strømstik (4-pin) 4
Formål PC
Strømforsyningenhed (PSU) formfaktor ATX
80 PLUS certificering 80 PLUS Gold
General
Device Type Power supply - internal
PSU Form Factor ATX
Specification Compliance ATX12V
Power Device
80 PLUS Certification 80 PLUS Gold
Input Voltage AC 100-240 V
Modular Cable Management Yes
Output Current +3.3V - 25 A | +5V - 25 A | +12V - 83.3 A | -12V - 0.8 A | +5VSB - 3 A
Output Voltage +3.3, +5, ±12 V
Power Capacity 1000 Watt
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 4 x 8 pin PCI Express power with detachable 2 pin section | 1 x 16 pin PCI Express power | 4 x 4 pin internal power | 5 x 15 pin Serial
Miscellaneous
Compliant Standards RoHS
Features Overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, Axial-tech fan design
Included Accessories Cable ties
Manufacturer Warranty
Service & Support Limited warranty - 10 years
Dimensions & Weight
Depth 15 cm
Height 8.6 cm
Weight 2.48 kg
Width 15 cm
