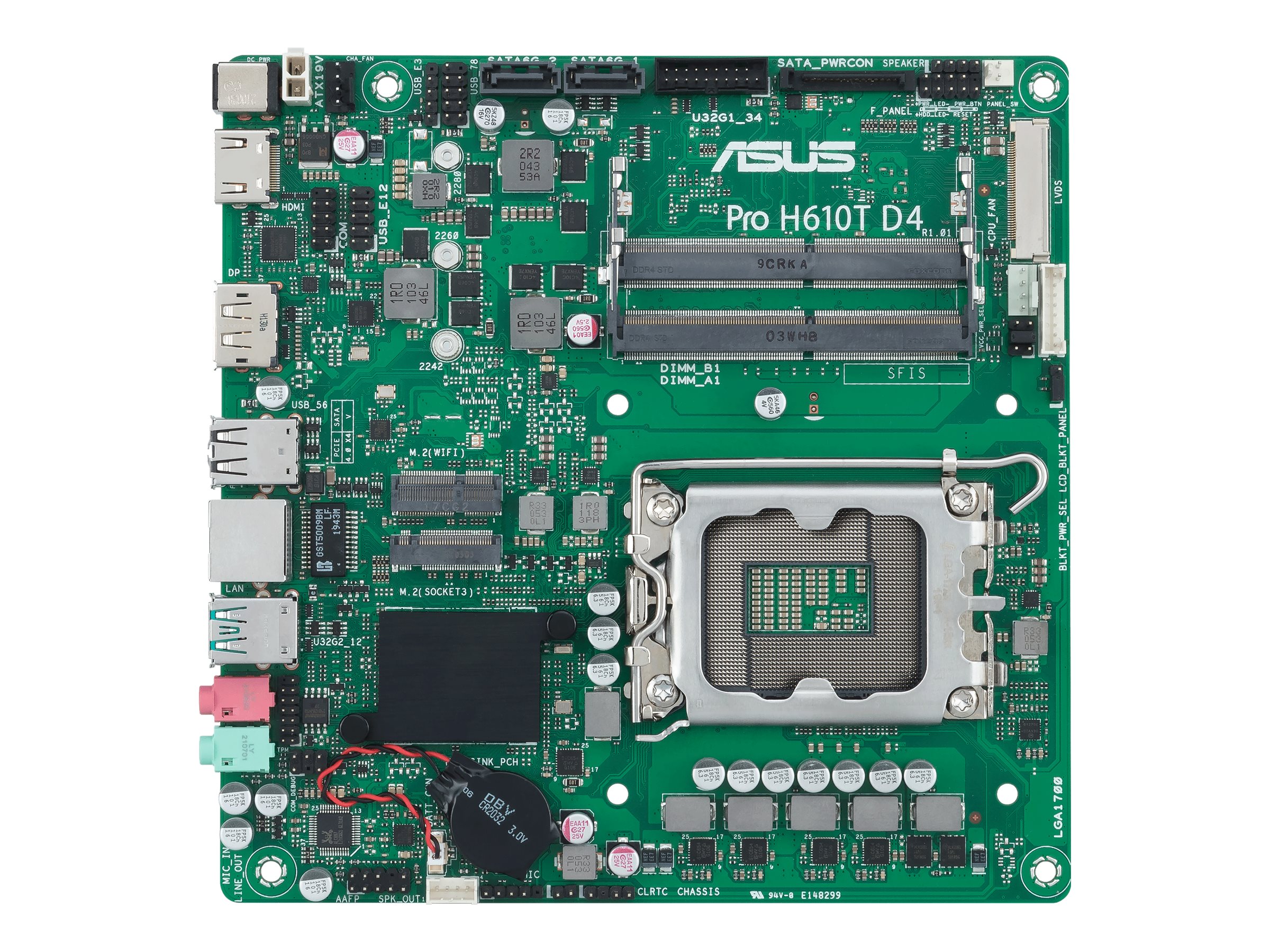

ASUS Pro H610T D4-CSM Thin mini ITX LGA1700 Intel H610
ASUS Pro H610T D4-CSM - Bundkort - Thin mini ITX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Product no 1000345406
Model 90MB1AM0-M0EAYC
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081679851
Weight 0.67 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASUS Pro H610T D4-CSM - bundkort - Thin mini ITX - LGA1700 sokkel - H610 |
| Produkttype | Bundkort - Thin mini ITX |
| Chipsættype | Intel H610 |
| Processor-socket | 1 x LGA1700 sokkel |
| Kompatible processorer | (understøtter 12. Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 SO DIMM-åbninger - DDR4, ikke-ECC, ikke bufferet |
| Lagringsporte | 2 x SATA-600, 1 x M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 2 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 5 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| General | |
|---|---|
| Chipset Type | Intel H610 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - Thin mini ITX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 2 x SO-DIMM 260-pin | 1 x M.2 socket (Key E) |
| Interfaces | 1 x HDMI | 1 x DisplayPort | 2 x USB 3.2 Gen 2 | 2 x USB 2.0 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 5 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header | 2 x speaker - header | 1 x LVDS - header |
| Power Connectors | 2-pin power connector, DC-in power connector |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, Q-LED, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), LANGuard, Intel Turbo Boost Max Technology 3.0, ASUS Control Center Express (ACC Express) |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable | 1 x Serial ATA power cable |
| Compliant Standards | FCC, RoHS, NIST SP800-147 |
| Depth | 17 cm |
| Included Accessories | ACC Express Activation Key Card, 2 x IO shields |
| Software Included | Drivers & utilities |
| Width | 17 cm |
