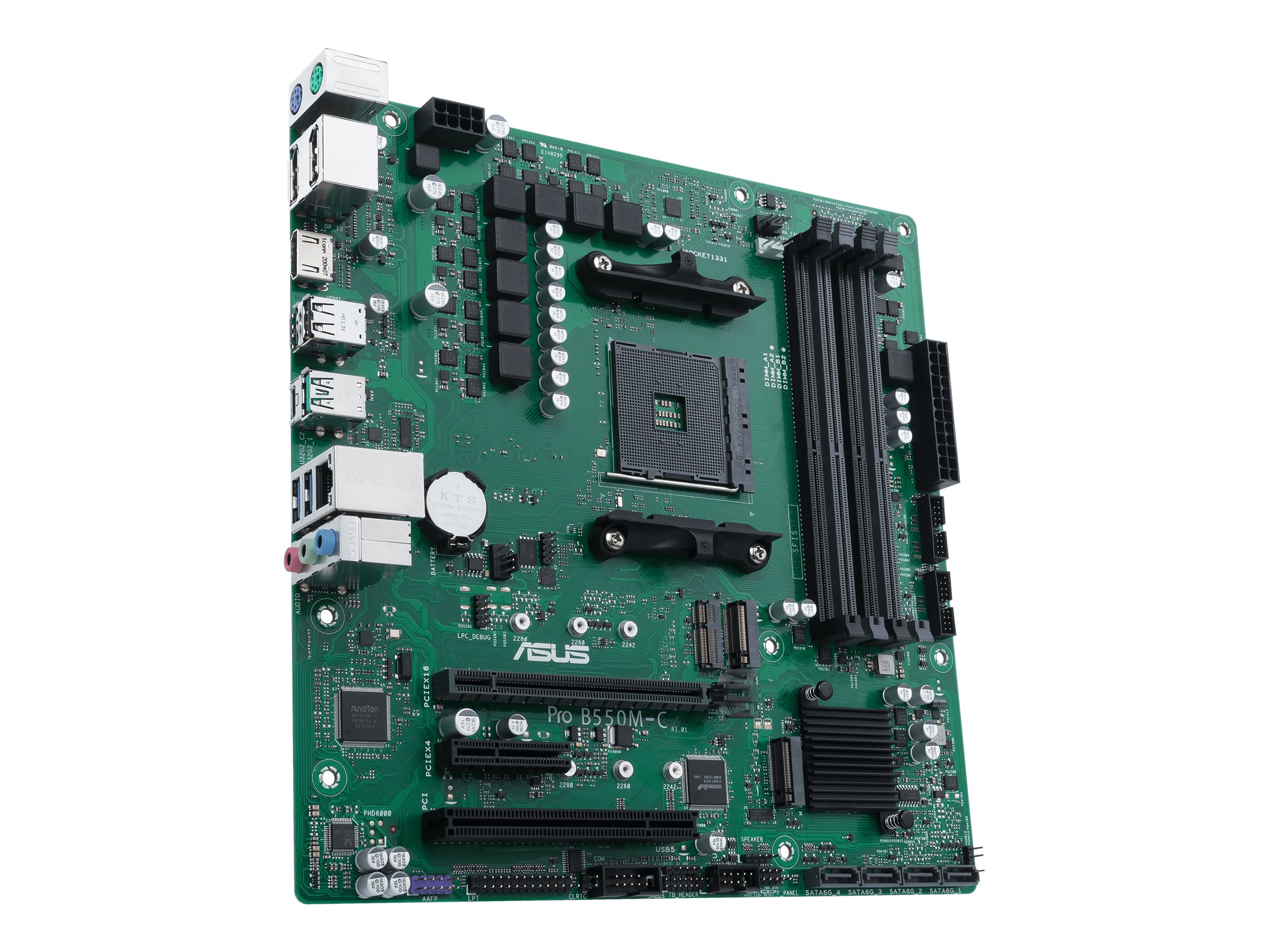

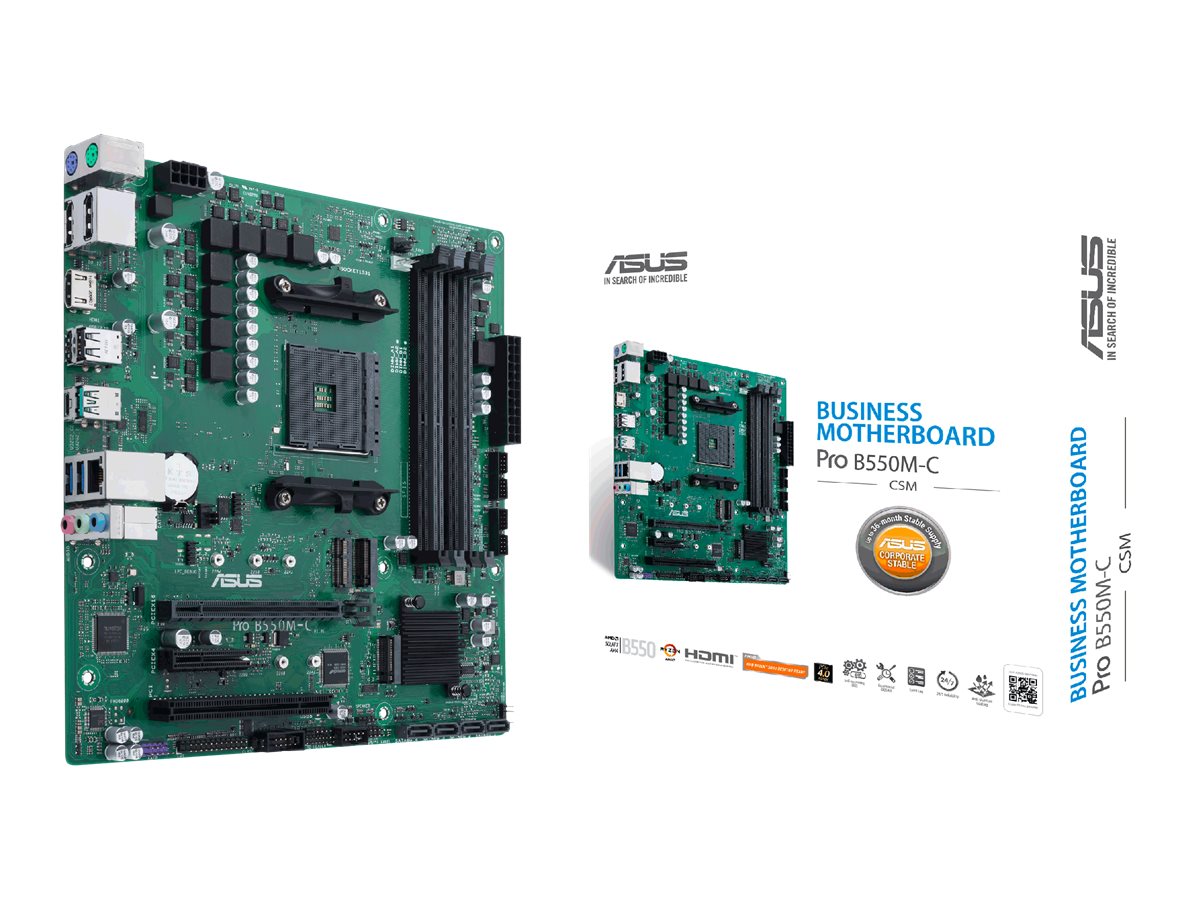

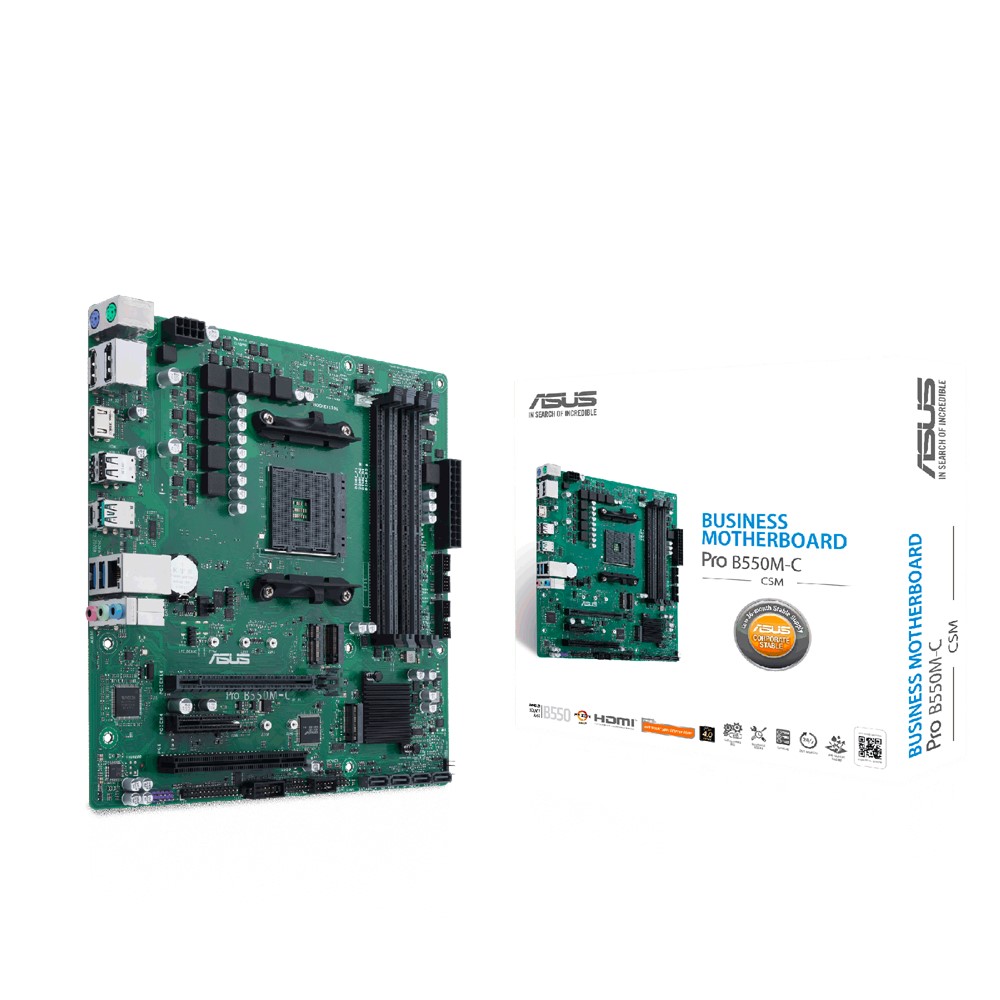

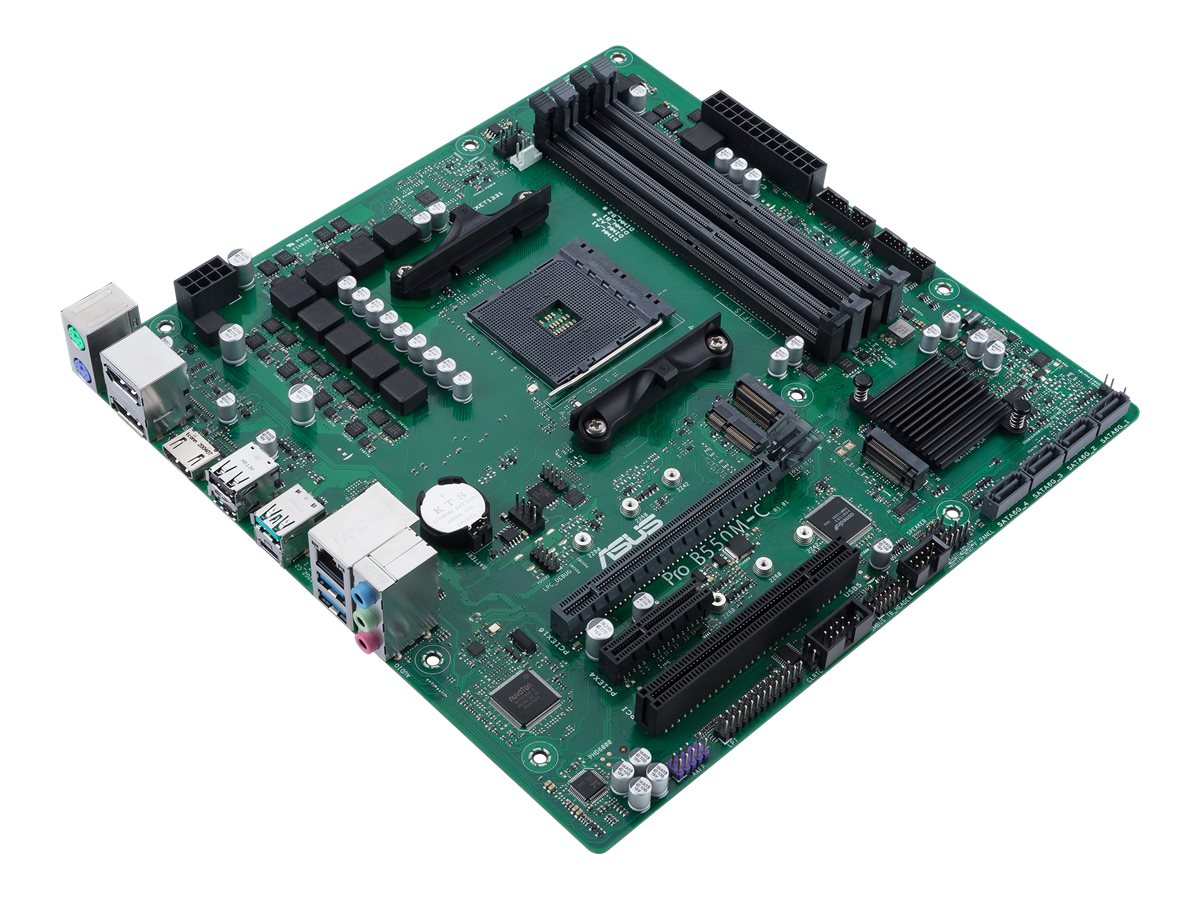

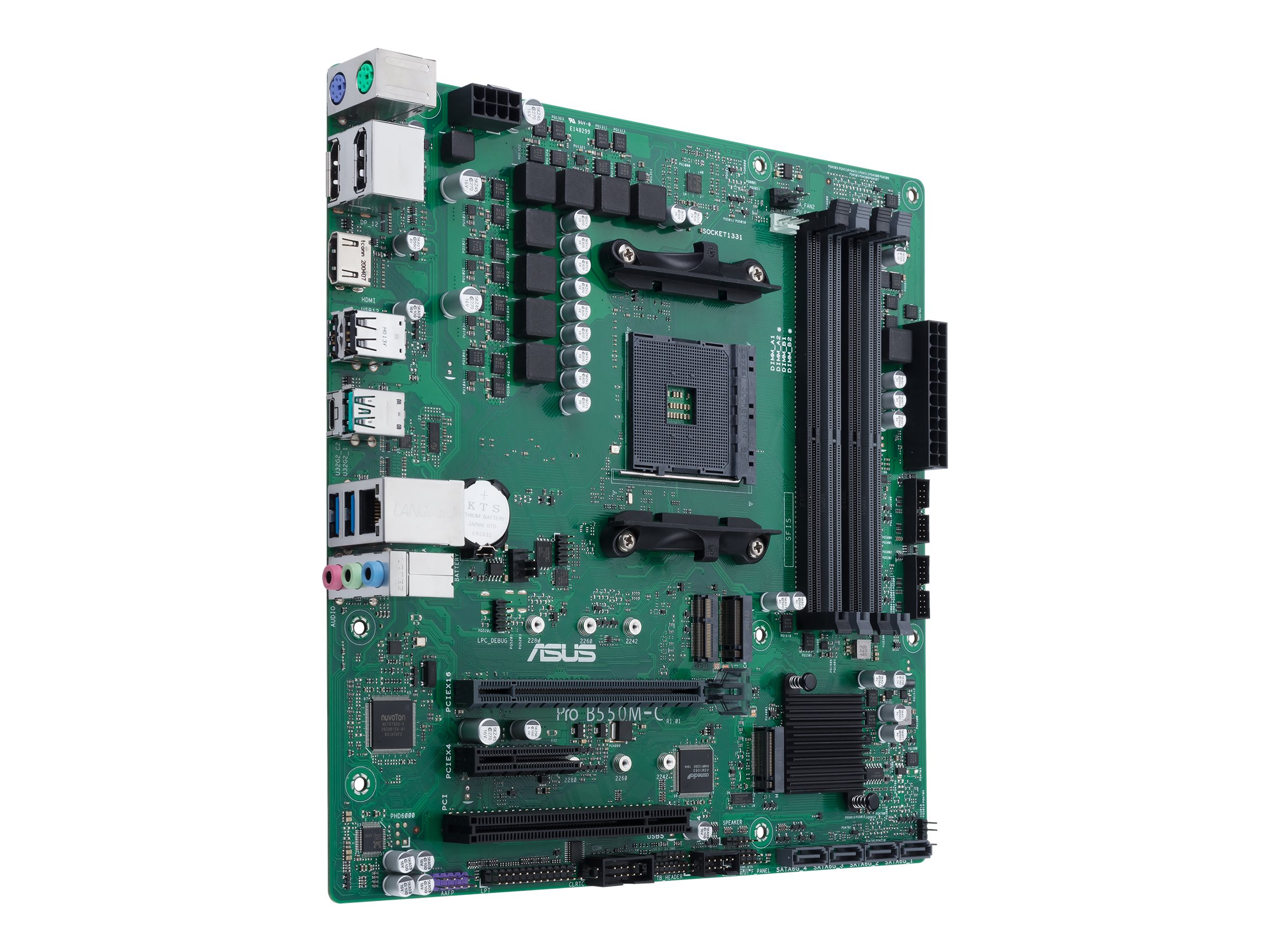

ASUS Pro B550M-C/CSM Micro-ATX AM4 AMD B550
ASUS Pro B550M-C/CSM - Bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Product no 998088200
Model 90MB15Q0-M0EAYC
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4718017992336
Weight 0.93 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Processorproducent | AMD |
| Processor sokkel | Stik AM4 |
| Kompatibel processor serie | AMD Athlon, AMD Ryzen 3000 Series |
| Understøttede hukommelsestyper | DDR4-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 128 GB |
| Understøttede lagerdrev brugerflader | SATA III |
| Understøttelse af parallel behandlingsteknologi | Ikke understøttet |
| USB 2.0-stik | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 0 |
| Antal SATA III-stik | 4 |
| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 1 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal VGA-porte (D-sub) | 0 |
| Antal HDMI-porte | 1 |
| Antal DVI-D-porte | 0 |
| Komponent til | PC |
| Motherboard form faktor | micro ATX |
| Bundkort chipset familie | AMD |
| Bundkort chipsæt | AMD B550 |
| Lyd-output kanaler | 7.1 kanaler |
| BIOS-type | UEFI AMI |
| General | |
|---|---|
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
| Audio | |
| Audio Codec | Realtek ALC887/ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs); PCIe 3.0 x16 mode (Ryzen 4000 G-Series CPUs)) | 1 x PCIe 3.0 x4 | 1 x PCI |

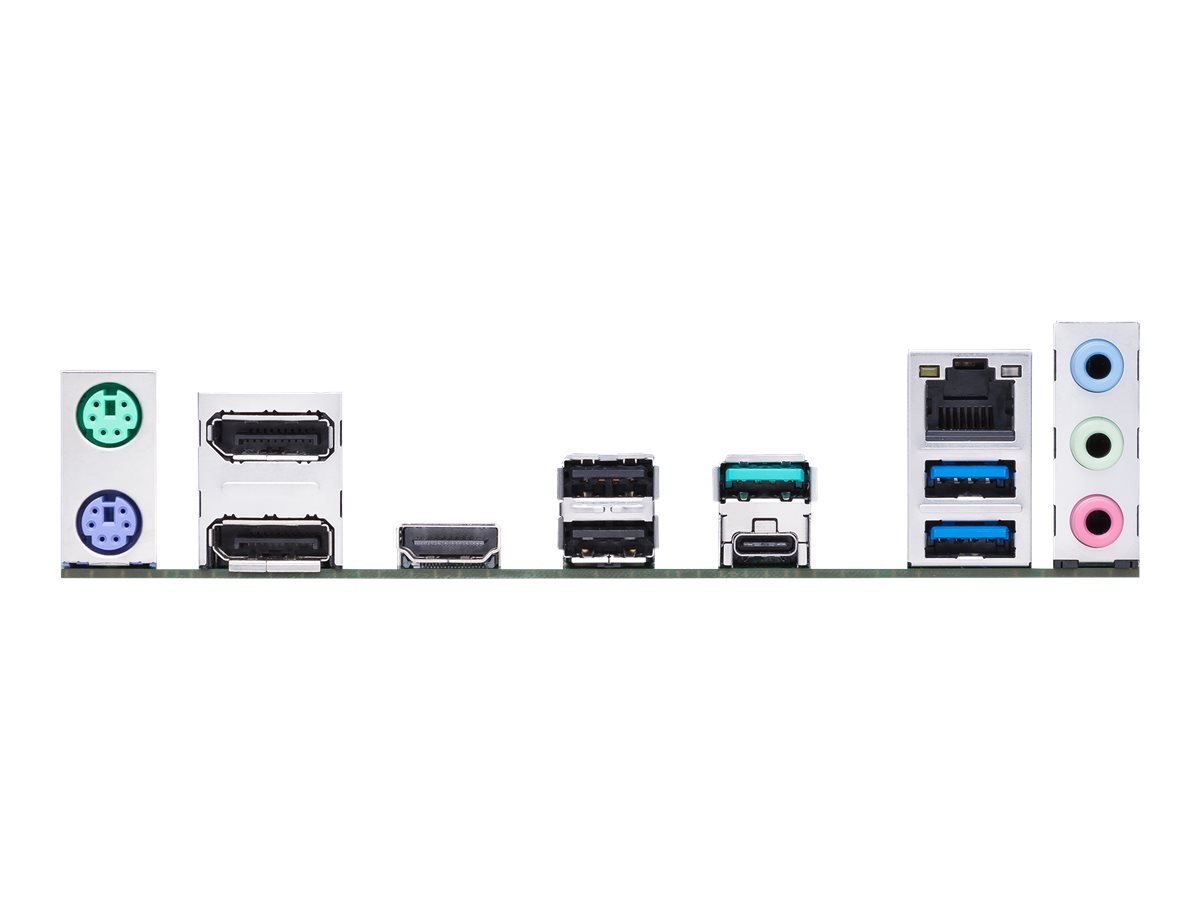

| Interfaces | 2 x DisplayPort | 1 x HDMI | 1 x LAN (Gigabit Ethernet) | 2 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x PS/2 keyboard | 1 x PS/2 mouse | 1 x USB-C Gen2 | 2 x |
| Internal Interfaces | 3 x USB 2.0 - header | 4 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x speaker - header | 1 x Thunderbolt - header | 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, audio jack detect technology, Preboot eXecution Environment (PXE), overcurrent protection, Moistureproof PCB, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM 2.0 IC |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | FCC, RoHS |
| Depth | 24.4 cm |

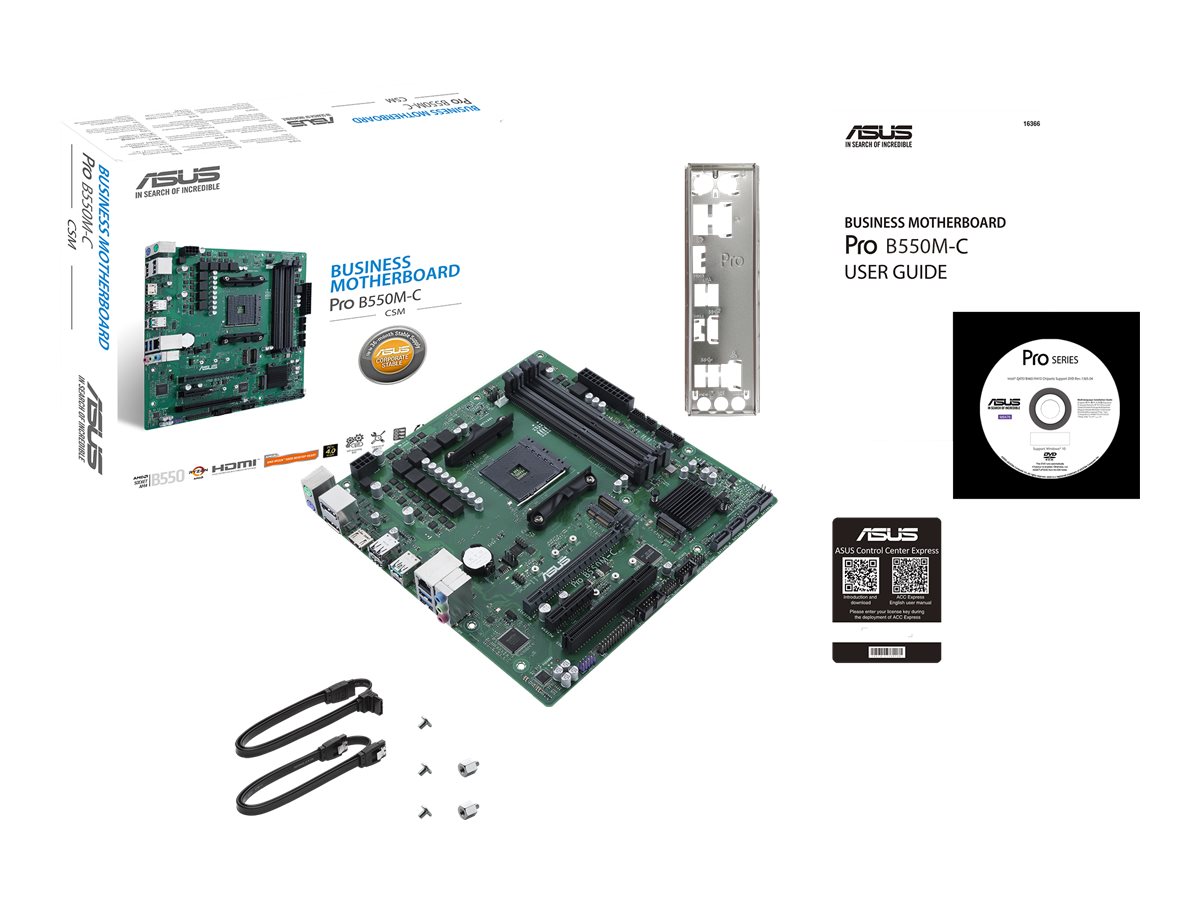

| Included Accessories | I/O back cover, 3 x M.2 screws, 2 x M.2 Hex screws |
| Software Included | Drivers & utilities |
| Width | 24.4 cm |
