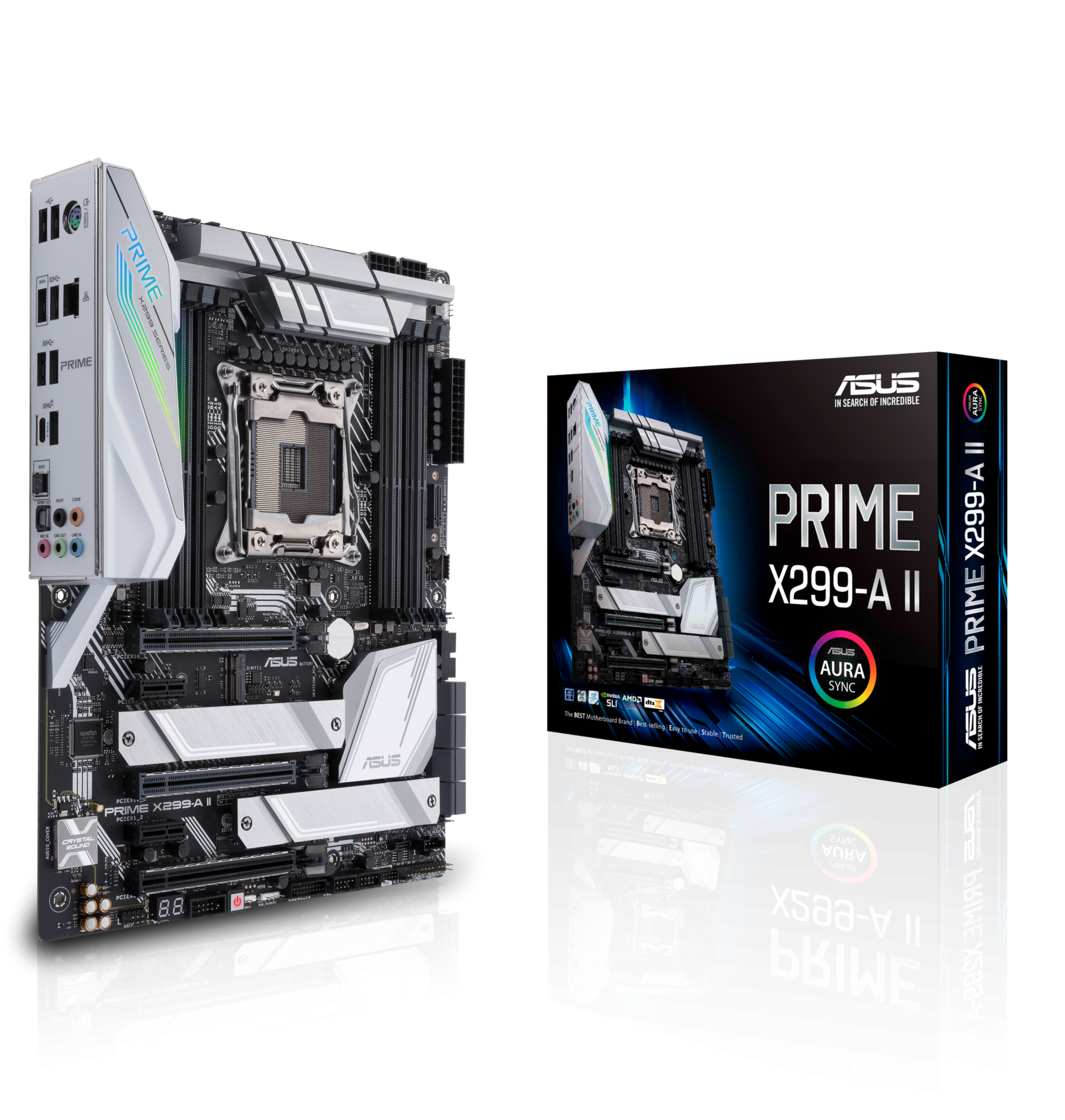

ASUS PRIME X299-A II ATX LGA2066 Intel X299
ASUS PRIME X299-A II - Bundkort - ATX - LGA2066 Socket - X299 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - HD Audio (8-kanaler)
-
Product no 995279503
Model 90MB11F0-M0EAY0
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4718017488594
Weight 2.1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Processorproducent | Intel |
| Processor sokkel | LGA 2066 (Socket R4) |
| Kompatibel processor serie | Intel® Core™ X-series |
| Understøttede hukommelsestyper | DDR4-SDRAM |
| Antal hukommelsesstik | 8 |
| Maksimal intern hukommelse | 256 GB |
| Understøttede lagerdrev brugerflader | M.2, SATA III |
| Understøttelse af parallel behandlingsteknologi | 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI |
| USB 2.0-stik | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 0 |
| Antal SATA III-stik | 8 |
| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 0 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal VGA-porte (D-sub) | 0 |
| Antal HDMI-porte | 0 |
| Antal DVI-D-porte | 0 |
| Wi-Fi | Ingen |
| Komponent til | PC |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel® X299 |
| Lyd-output kanaler | 7.1 kanaler |
| BIOS-type | UEFI AMI |
| General | |
|---|---|
| Chipset Type | Intel X299 |
| Compatible Processors | Core X |
| Max Processors Qty | 1 |
| Processor Socket | LGA2066 Socket |
| Product Type | Motherboard - ATX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.) |
| Features | Intel Extreme Memory Profiles (XMP) |
| Max Size | 256 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
| Audio | |
| Audio Codec | Realtek ALCS1220A |
| Compliant Standards | High Definition Audio, DTS:X Ultra |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 8 x DIMM 288-pin | 3 x PCIe 3.0 x16 (44-lane CPU (x16, x16/x16, x16/x16/x8 modes), 28-lane CPU (x16, x16/x8 modes)) | 2 x PCIe 3.0 x1 | 1 x M.2 socket (Key E) |
| Interfaces | 1 x LAN (Gigabit Ethernet) | 1 x PS/2 keyboard / mouse | 4 x USB 3.2 Gen 1 | 2 x USB 2.0 | 1 x USB 3.2 Gen 2 | 1 x USB-C Gen2 | 1 x microphone - mini-jack | 1 x audio line-out (center/subwoofer) - mini-jack | 1 x audio line-out (rear) - mini-jack | 1 |
| Internal Interfaces | 4 x USB 2.0 - header | 4 x USB 3.2 Gen 1 - header | 1 x USB 3.2 Gen 2 - header | 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 | PCIe 3.0 -connectors: 2 x M.2 |
| Features | |
| BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, USB BIOS Flashback, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, ACPI 6.1 support, SMBIOS 3.1 support |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), NVIDIA 3-way SLI Technology Support, NVIDIA Quad SLI Technology Support, NVIDIA 2-w |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Miscellaneous | |
| Cables Included | 4 x Serial ATA cable |
| Compliant Standards | Plug and Play |
| Depth | 24.4 cm |
| Included Accessories | RGB (RGBW) LED strip extension cable, vertical M.2 bracket set, RGB Addressable LED extension cable |
| Software Included | Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), ASUS Turbo Core App |
| Width | 30.5 cm |
