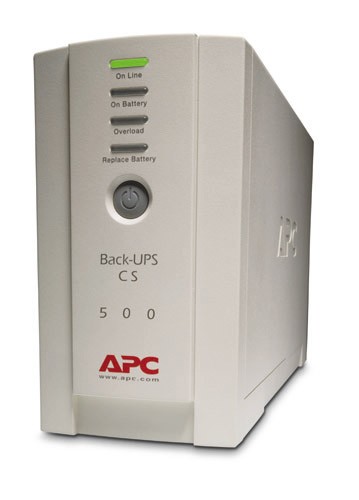

APC Back-UPS CS 500 UPS 300Watt 500VA
APC Back-UPS CS 500 - UPS - AC 230 V - 300 Watt - 500 VA - RS-232, USB - output-stikforbindelser: 4 - beige
Dette produkt er en del af Back-UPS-serien. BK550EI har i alt 6 udgange, hvoraf 3 er UPS-batteribackup og 3 er udelukkende overspændingsstik. Batteritid ved 100 W er 24 minutter og 20 sekunder Den giver datalinjebeskyttelse med en analog RJ45-telefonlinje til telefon, fax, modem eller DSL. Dens mål er 16,5 x 9,1 x 28,4 cm og 6,32 kg. BK550EI sikrer, at kontorsystemer og deres værdifulde data er beskyttet mod farlige strømstød, spændingsspidser og strømafbrydelser.
-
Product no 28093
Model BK500EI
Brand APC
EAN 0731304016359
Weight 6 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Back-UPS CS 500 - UPS - 300 Watt - 500 VA |
| Enhedstype | UPS - ekstern |
| Vægt | 6 kg |
| Indlæsehastighed | Individuel pc |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 230 V ± 8% |
| Strømkapacitet | 300 Watt / 500 VA |
| Input-stik | 1 x strøm IEC 60320 C14 |
| Output-stikforbindelser | 1 x power IEC 60320 C13 (overspænding)<br>3 x power IEC 60320 C13 (UPS og overspænding) |
| Batteri | Blysyre |
| Batteri formfaktor | Intern |
| Antal batterier | 1 |
| Driftstid (op til) | 2.4 min ved fuld belastning |
| Netværk | RS-232, USB |
| Farve | Beige |
| Systemkrav | Apple MacOS 9, Apple MacOS 9.0.4 eller nyere, Microsoft Windows 98/ME/2000/XP |
| Dimensioner (B x D x H) | 9.1 cm x 28.4 cm x 16.5 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Battery Enclosure Type | Internal |
| Color | Beige |
| Device Type | UPS - external |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Dataline Surge Protection | Phone line - RJ-11 |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 230 V |
| Input Voltage Margin | ± 5% |
| Input Voltage Range | AC 196 - 280 V |
| Input Voltage Range (Adjustable) | AC 160 - 300 V |
| Load Rating | Individual PC |
| Output Voltage | AC 230 V ± 8% |
| Output Waveform | Stepped approximation to a sinewave |
| Power Capacity | 300 Watt / 500 VA |
| Power Output Connectors Details | 1 x power IEC 60320 C13 (surge) | 3 x power IEC 60320 C13 (UPS and surge) |
| Surge Energy Rating | 300 Joules |
| Surge Suppression | Yes |
| UPS Technology | Off-line |
| Battery | |
| Quantity | 1 |
| Recharge Time | 8 hours |
| Run Time (Up To) | 2.4 min at full load |
| Technology | Lead acid |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232/USB) - RJ-45 |
| Miscellaneous | |
| Cables Included | USB cable - external |
| Compliant Standards | C-Tick, GOST, UL 1449, VDE, EN 50091-2, EN 50091-1 |
| Equipment Protection Value | 100000 Euros |
| Features | LED display, audible alarm |
| Software / System Requirements | |
| OS Required | Apple MacOS 9, Apple MacOS 9.0.4 or later, Microsoft Windows 98/ME/2000/XP |
| Software Included | APC PowerChute Personal Edition |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Humidity Range Storage | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -15 °C |
| Sound Emission | 40 dBA |
| Dimensions & Weight | |
| Depth | 28.4 cm |
| Height | 16.5 cm |
| Weight | 6 kg |
| Width | 9.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 36.8 cm |
| Shipping Height | 17.8 cm |
| Shipping Weight | 7.1 kg |
| Shipping Width | 24.1 cm |
Output Power Capacity
300 Watts / 500 VA
Max Configurable Power
300 Watts / 500 VA
Nominal Output Voltage
230V
Output Connections
| (1) IEC 320 C13 (Surge Protection) |  |
| (3) IEC 320 C13 (Battery Backup) | |
| (2) IEC Jumpers (Surge Protection) |
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
| IEC-320-C14 inlet |
Cord Length
1.83 meters
Input voltage range for main operations
196 - 280V
Input voltage adjustable range for mains operation
160 - 300V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
6 hour(s)
Replacement Battery
RBC2
RBC Quantity
1
Typical Backup Time
at Half Load
at Half Load
13.9 minutes (150 Watts)
Typical Backup Time
at Full Load
at Full Load
3.8 minutes (300 Watts)
