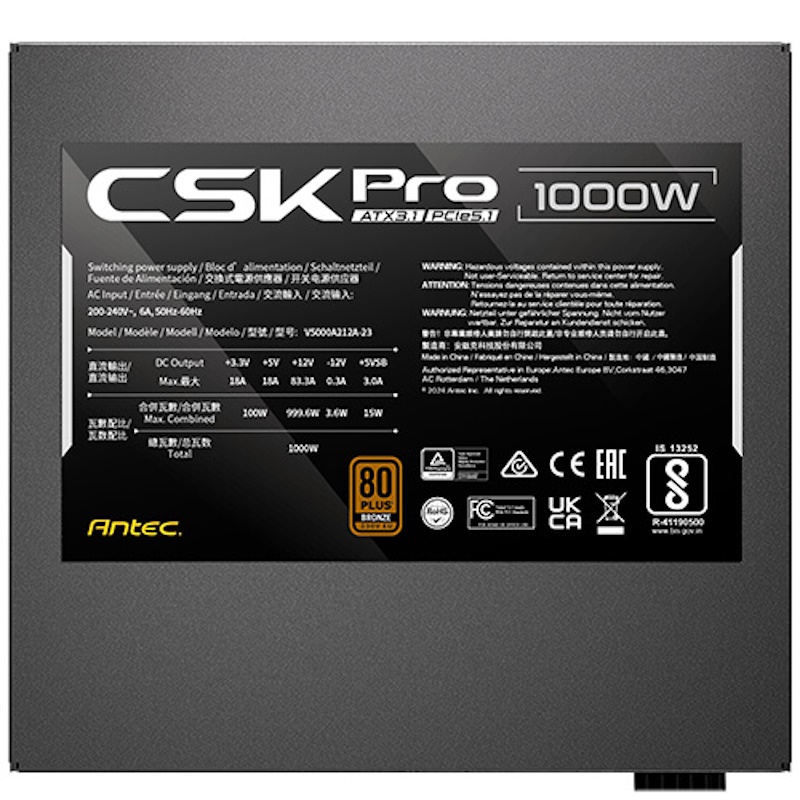

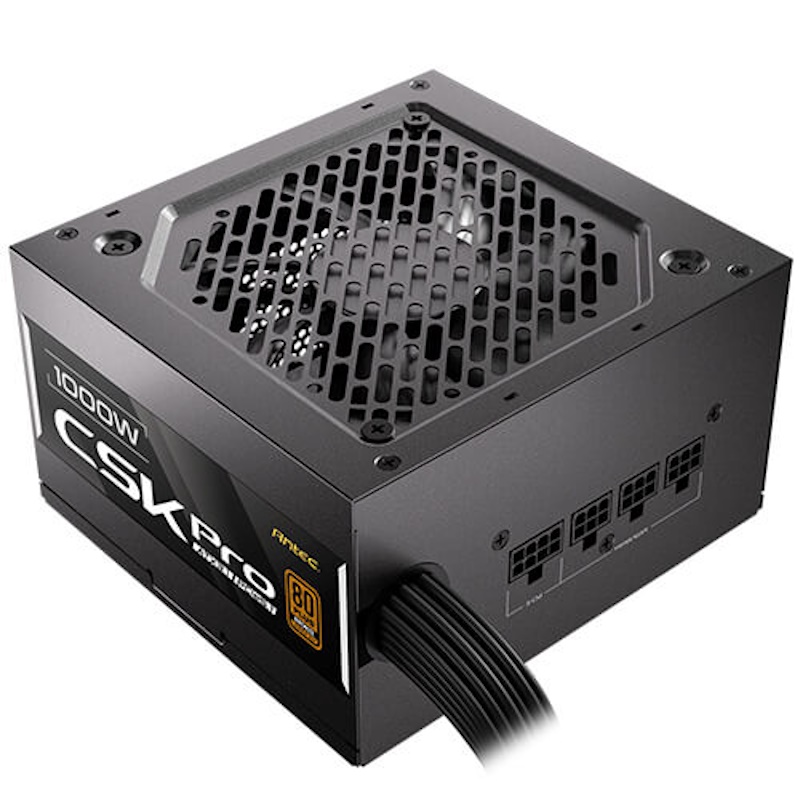

Antec CSK1000 Pro ATX3.1 Strømforsyning 1000Watt
Antec CSK1000 Pro ATX3.1 - Strømforsyning (intern) - Semi-Modular - ATX12V 3.1/ PCIe 5.1 - 80 PLUS Bronze - AC 200-240 V - 1000 Watt - sort
-
Product no 1003386399
Model 0-761345-20073-8
Brand Antec
EAN 0761345200738
Weight 2.48 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Type | ATX 12V 3.1 |

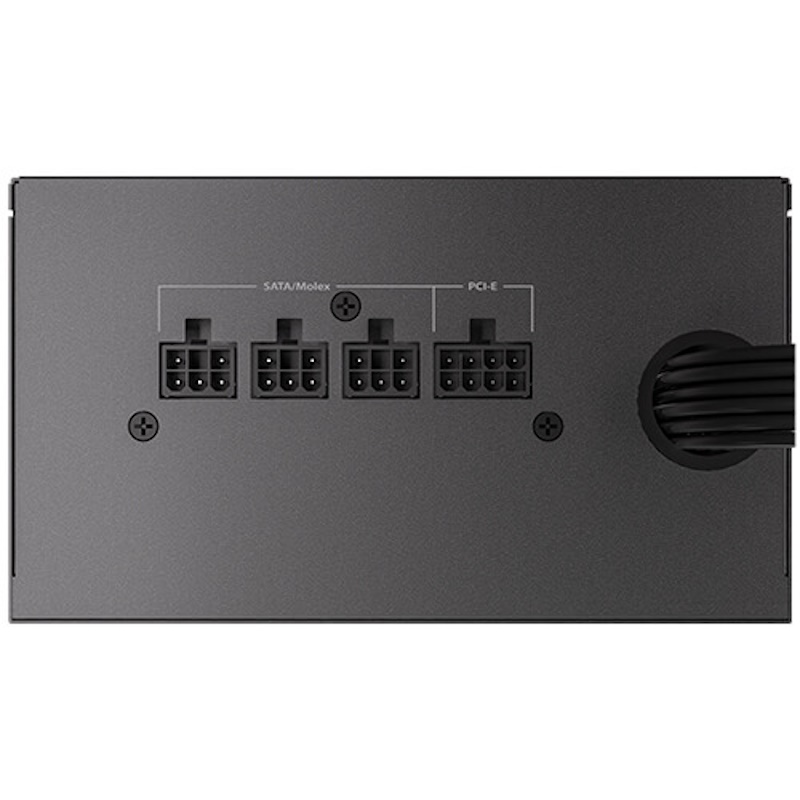

| Modular | Semi-Modular |
| Input Voltage | 200V-240V, 50Hz |
| Input Current | 6A Max |
| PFC | Active PFC |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Power Good Signal | 100-150ms |
| Output Capacity | 1000W |
| Operation Temperature | 0~40°C |
| Regulatory | TUV / CB / RCM / CE / BIS / UKCA / KC |
| Fan | 120mm Silent Fan |
| Certifications | 80 Plus Bronze 230V EU |

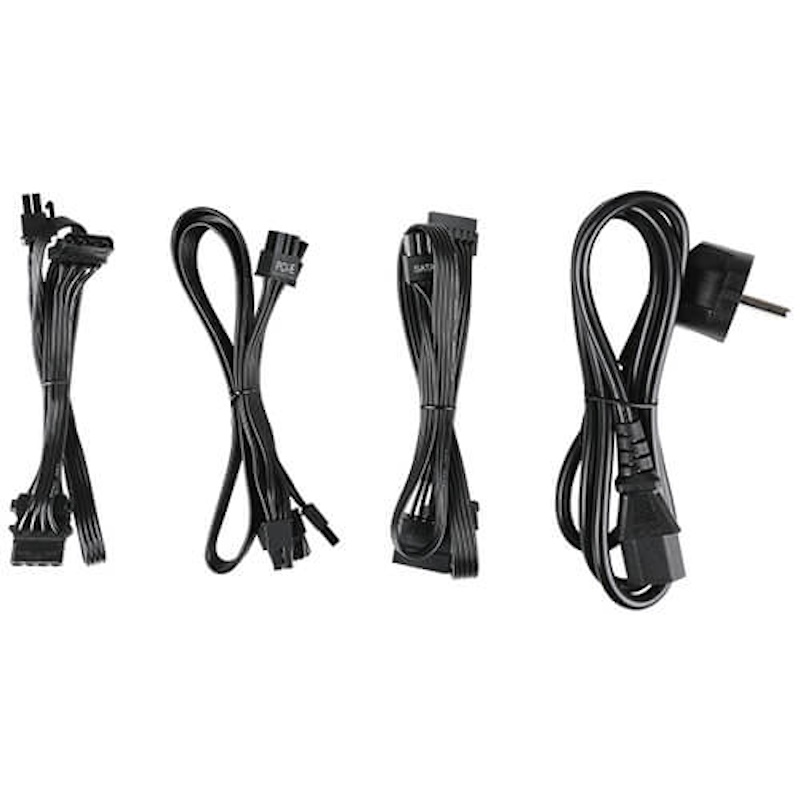

| Connector | 1 x 24 (20+4) pin MB, 1 x 16 (12+4) pin PCIE 5.1 12V-2x6 (600W), 2 x 8 (4+4) pin CPU, 4 x 8 (6+2) pin PCI-E, 6 x SATA, 3 x Molex |
| Weight | 2.02 Kg |
| Dimension (L x W x H) | 140 x 150 x 86 |
| Warranty | 5 years |
| Strømstyring | |
|---|---|
| Indgangsstrøm | 6 A |
| Strømbeskyttelsesfunktioner | No load operation, Overstrøm, Højspænding, Surge & inrush protection (SIP), Lavspænding |
| Total effekt | 1000 W |
| Vekselstrømsindgangsfrekvens | 50 Hz |
| Vekselstrømsindgangsspænding | 200 - 240 V |
| Porte & Grænseflader | |
| Antal SATA strømstik | 6 |
| Motherboard, strømstik | 20+4 pin ATX |
| Perifere (Molex) strømstik (4-pin) | 3 |
| Præstation | |
| 80 PLUS certificering | 80 PLUS Bronze |
| ATX-version | 3.1 |
| Formål | PC/server |
| Strømforsyningenhed (PSU) formfaktor | ATX |
| Design | |
| Ventilator diameter | 12 cm |
| Vægt & størrelser | |
| Bredde | 150 mm |
| Dybde | 140 mm |
| Højde | 86 mm |
