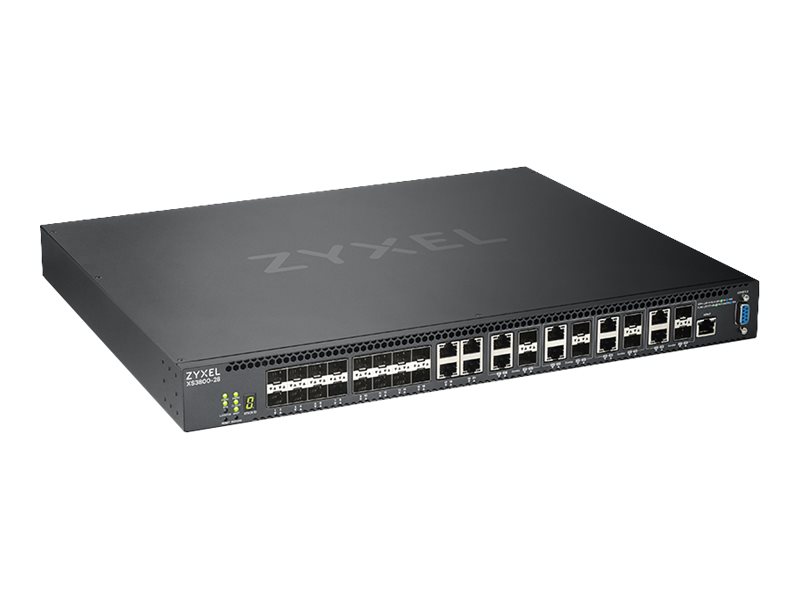

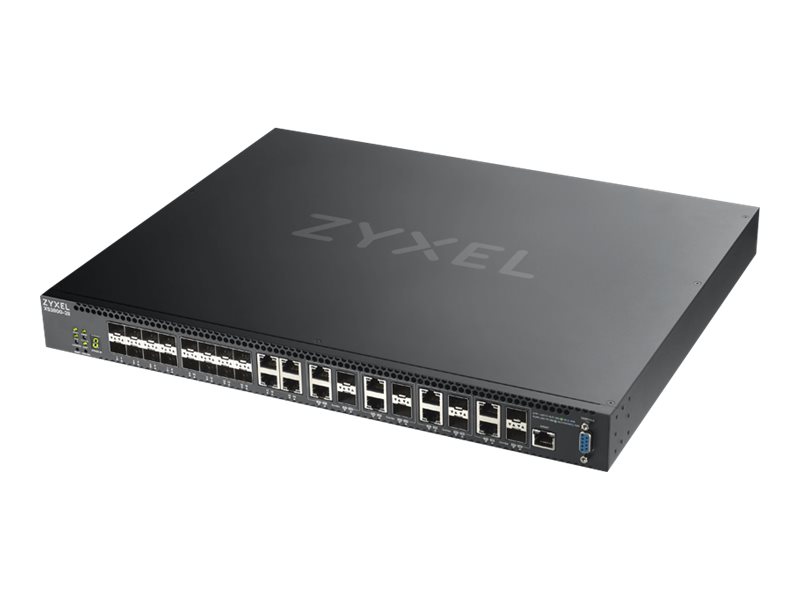

Zyxel XS3800-28 Switch 28-porte 10 Gigabit
Zyxel XS3800-28 - Switch - L2+ - Administreret - 4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x kombo 10 Gigabit SFP+ - monterbar på stativ
Varenummer:
994139431
Model:
XS3800-28-ZZ0101F
EAN:
4718937600960
Brand:
Vægt:
7.3 kg
Specifications
|
Produktbeskrivelse
|
Zyxel XS3800-28 - switch - 28 porte - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 28 porte - L2+ - Administreret - kan stables
|
|
Pakningstype
|
Monterbar på stativ
|
|
Undertype
|
10 Gigabit Ethernet
|
|
Porte
|
4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x kombo 10 Gigabit SFP+
|
|
Præstation
|
Omkoblingskapacitet: 560 Gbps<br>Videresendelseshastighed: 416 Mpps
|
|
Kapacitet
|
Routing table bidrag: 1000<br>IPv4 indtastning i videresendelses-tabel: 4000<br>IPv6 indtastning i videresendelses-tabel: 2000<br>IP-interfacer: 128<br>Virtuelle grænseflader (VLANs): 4000<br>QoS hardware-køer pr. port: 8
|
|
MAC adresse table størrelse
|
32K indtastningshukommelse
|
|
Routingprotokol
|
IGMPv2, IGMP, statisk IP routing, IGMPv3, police-baseret routing (PBR), MLD
|
|
Protokol til fjernadministration
|
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, NTP, ICMP
|
|
Egenskaber
|
Datatransport, auto-negotiation, Syslog understøttet, gem og send, IP-adresse filtrering, WFQ, ZyXEL iStacking Technology, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, ECMP, Port Security, MVR, GVRP, SPQ, NDP, portisolering, CoS, Loopback, 4 MB pakkebuffer, DSCP support, ErrDisable Recovery, ZON, IGMP-drosling, Protokol-baseret VLANs support, Storm Control, CPU-beskyttelse, ARP-inspektion, politikbaseret hastighedsbegrænsning, BPDU, dobbelt billedsupport, DLF, MAC-adresseautentificering, VLAN Double Tagging (Q-in-Q), Loop Guard, LLDP-MED, Private VLAN, Guest VLAN, EEE, WRR, portbaseret VLAN, VLAN trunking, MRSTP
|
|
Overensstemmelsesstandarder
|
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
|
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
|
Overskudsspænding
|
Ja
|
|
Dimensioner (B x D x H)
|
44.1 cm x 36 cm x 4.4 cm
|
|
Vægt
|
4.81 kg
|
|
Lokalisering
|
Europa
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
|
|
Capacity
|
Routing table entries: 1000 | IPv4 forwarding table entries: 4000 | IPv6 forwarding table entries: 2000 | IP interfaces: 128 | Virtual interfaces (VLANs): 4000 | QoS hardware queues per port: 8
|
|
Compliant Standards
|
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
|
|
Device Type
|
Switch - 28 ports - L2+ - managed - stackable
|
|
Enclosure Type
|
Rack-mountable
|
|
Encryption Algorithm
|
SSL
|
|
Features
|
Flow control, auto-negotiation, Syslog support, store and forward, IP address filtering, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route
|
|
Flash Memory
|
64 MB
|
|
MAC Address Table Size
|
32K entries
|
|
Performance
|
Switching capacity: 560 Gbps | Forwarding rate: 416 Mpps
|
|
Ports
|
4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x combo 10 Gigabit SFP+
|
|
RAM
|
8 GB
|
|
Remote Management Protocol
|
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, NTP, ICMP
|
|
Routing Protocol
|
IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLD
|
|
Status Indicators
|
Port status, system, link/activity
|
|
Subtype
|
10 Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
24 x 10Gbit LAN SFP+ | 12 x 10GBase-T RJ-45 | 1 x console DB-9 | 1 x management RJ-45
|
|
Power
|
|
|
Installed Qty
|
2
|
|
Max Supported Qty
|
2
|
|
Power Consumption Operational
|
86.97 Watt
|
|
Power Device
|
Internal power supply
|
|
Power Redundancy
|
Yes
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC
|
|
Localization
|
Europe
|
|
MTBF
|
656,274.78 hours
|
|
Rack Mounting Kit
|
Included
|
|
Dimensions & Weight
|
|
|
Depth
|
36 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
4.81 kg
|
|
Width
|
44.1 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 95% (non-condensing)
|
|
Humidity Range Storage
|
10 - 95% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
