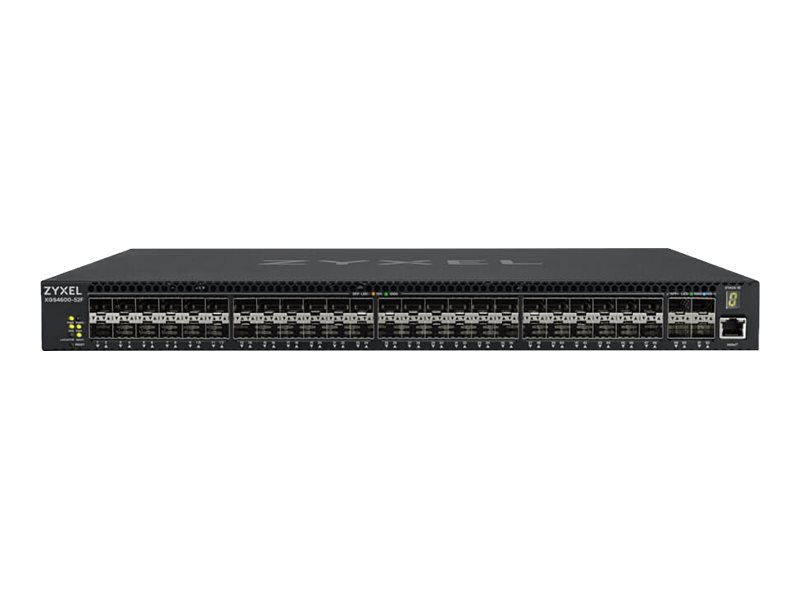

Zyxel XGS4600-52F Switch 48-porte Gigabit
Zyxel XGS4600-52F - Switch - L3 - Administreret - 48 x Gigabit SFP + 4 x 10 Gigabit SFP+ - monterbar på stativ
Varenummer:
992987870
Model:
XGS4600-52F-ZZ0101F
EAN:
4718937595570
Brand:
Vægt:
7.52 kg
Specifications
|
Produktbeskrivelse
|
Zyxel XGS4600-52F - switch - 48 porte - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 48 porte - L3 - Administreret - kan stables
|
|
Pakningstype
|
Monterbar på stativ 1U
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
48 x Gigabit SFP + 4 x 10 Gigabit SFP+
|
|
Præstation
|
Omkoblingskapacitet: 176 Gbps<br>Fremsendelsespræstation: 130.9 Mpps
|
|
Kapacitet
|
IPv4 indtastning i videresendelses-tabel: 8000<br>IPv6 indtastning i videresendelses-tabel: 4000<br>Routing-tabeller: 12000<br>IP router grænseflade: 256
|
|
MAC adresse table størrelse
|
32K indtastningshukommelse
|
|
Routingprotokol
|
OSPF, RIP-1, RIP-2, IGMP, DVMRP, VRRP, statisk IPv4 routing, statisk IPv6 routing, ECMP
|
|
Protokol til fjernadministration
|
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2
|
|
Egenskaber
|
Datatransport, portspejling, MAC-adresse-filtrering, IPv6 understøttet, IP-adresse filtrering, ZyXEL iStacking Technology, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, ECMP, IPv4 support, DHCP videresendelse, CoS, 4 MB pakkebuffer, GVRP, ErrDisable Recovery, ZON, CPU-beskyttelse, IP-kildebekyttelse, ARP-inspektion, NTP, Loop Guard, Smart Connect, Guest VLAN
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3az
|
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
44.1 cm x 36 cm x 4.4 cm
|
|
Vægt
|
4.97 kg
|
|
Lokalisering
|
Europa
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
|
|
Capacity
|
IPv4 forwarding table entries: 8000 | IPv6 forwarding table entries: 4000 | Routing tables: 12000 | IP router interfaces: 256
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3az
|
|
Device Type
|
Switch - 48 ports - L3 - managed - stackable
|
|
Enclosure Type
|
Rack-mountable 1U
|
|
Encryption Algorithm
|
SSL, TLS
|
|
Features
|
Flow control, port mirroring, MAC address filtering, IPv6 support, IP address filtering, ZyXEL iStacking Technology, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) su
|
|
Flash Memory
|
64 MB
|
|
MAC Address Table Size
|
32K entries
|
|
Performance
|
Switching capacity: 176 Gbps | Forwarding performance: 130.9 Mpps
|
|
Ports
|
48 x Gigabit SFP + 4 x 10 Gigabit SFP+
|
|
RAM
|
1 GB
|
|
Remote Management Protocol
|
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2
|
|
Routing Protocol
|
OSPF, RIP-1, RIP-2, IGMP, DVMRP, VRRP, static IPv4 routing, static IPv6 routing, ECMP
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
48 x 1000Base-X SFP | 4 x 10Gbit LAN SFP+ | 1 x serial (RS-232C) management
|
|
Power
|
|
|
Power Consumption Operational
|
70.16 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
IEC 60950-1, EN 60950-1, FCC Part 15 A, CE/EMC, ANSI/UL 60950-1
|
|
Localization
|
Europe
|
|
MTBF
|
815,860 hours
|
|
Rack Mounting Kit
|
Included
|
|
Dimensions & Weight
|
|
|
Depth
|
36 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
4.97 kg
|
|
Width
|
44.1 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 95% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
