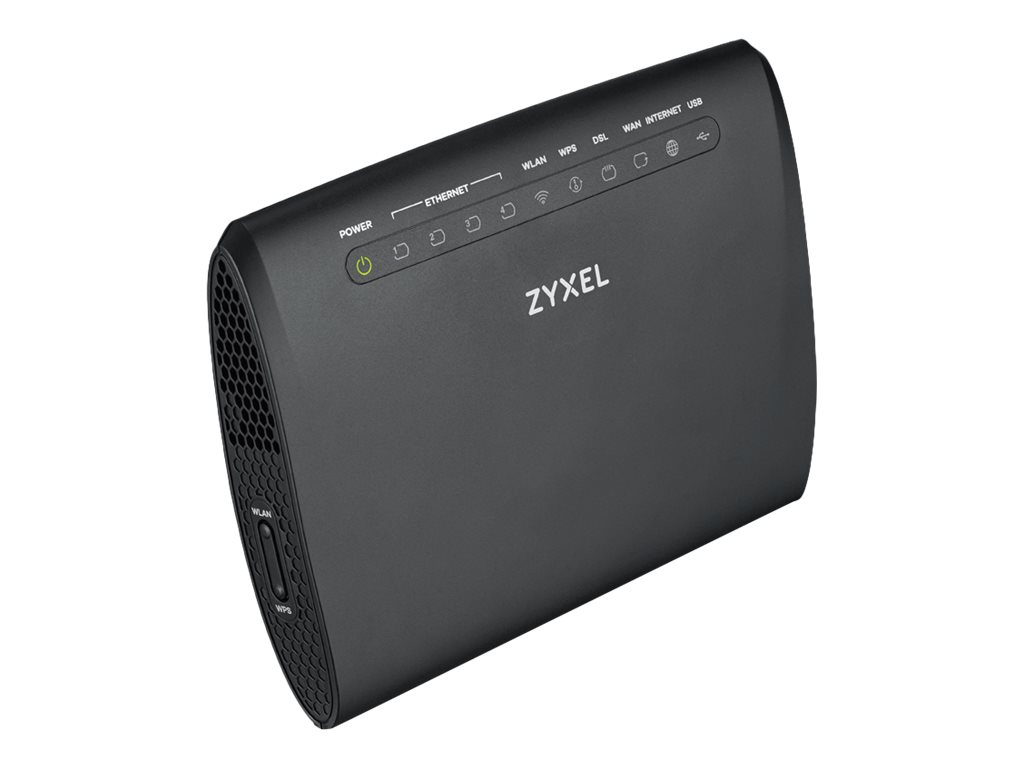

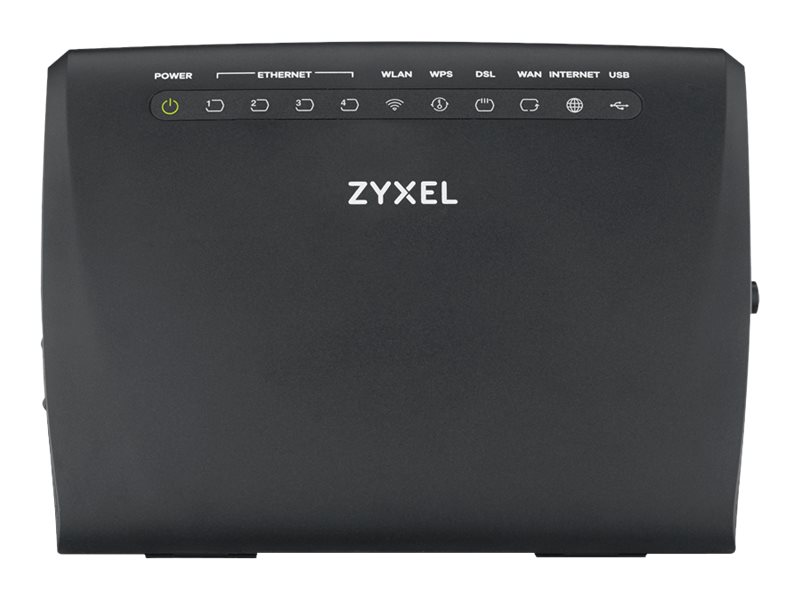

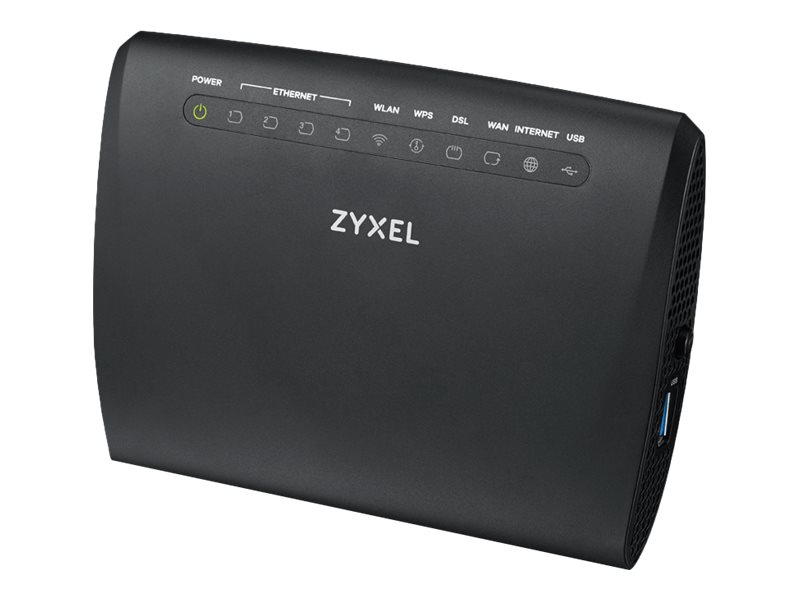

Zyxel VMG3312-T20A Trådløs router Desktop
Zyxel VMG3312-T20A - Trådløs router - DSL-modem 4-port switch - 1GbE 2,4 GHz
Product no:
995802555
Model:
VMG3312-T20A-EU01V1F
EAN:
4718937594481
Brand:
Weight:
0.44 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
Zyxel VMG3312-T20A - trådløs router - DSL-modem - Wi-Fi - desktop
|
|
Enhedstype
|
Trådløs router - DSL-modem - 4-port switch (integreret)
|
|
Pakningstype
|
Desktop
|
|
Protokol for digital signaltransmission
|
ADSL, VDSL, ADSL2, ADSL2+, VDSL2
|
|
Antal WAN porte
|
1
|
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
|
Frekvensbånd
|
2,4 GHz
|
|
Dataoverførselshastighed
|
300 Mbps
|
|
Kapacitet
|
Maksimalt antal konfigurerede SSID'er: 4
|
|
Netværks/overføselsprotokol
|
TCP/IP, UDP/IP, ICMP/IP, PPPoE, PPPoA, DHCP, DNS, DDNS
|
|
Routingprotokol
|
IGMPv2, IGMP, statisk IP routing, IGMPv3, police-baseret routing (PBR)
|
|
Protokol til fjernadministration
|
SNMP 1, SNMP 2, Telnet, HTTP, TFTP, SSH, CLI, TR-069, TR-098, TR-111, TR-181 i2
|
|
Egenskaber
|
NAT-understøtning, VLAN-understøttet, MAC-adresse-filtrering, IPv6 understøttet, forældrekontrol, firmware kan opgraderes, fildeling, ACL support, QoS, WPS, DHCP server, Multiple SSID support, DNS proxy, port fremsendelse, nulstillingsknap, IPv4 support, 3G USB Dongle Support, DHCP videresendelse, DHCP klient, IGMP proxy, DSCP support, SRA, Rom-D support, planlægger, DoS protection, G.INP, G.Vector
|
|
Overensstemmelsesstandarder
|
IEEE 802.1D, IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, USB 2.0, IEEE 802.11n
|
|
Dimensioner (B x D x H)
|
15.8 cm x 11.8 cm x 2.6 cm
|
|
Vægt
|
220 g
|
|
Lokalisering
|
Europa
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
Radio Service Set ID (SSID)
|
|
Capacity
|
Maximum number of configured SSIDs: 4
|
|
Compliant Standards
|
IEEE 802.1D, IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, USB 2.0, IEEE 802.11n, RoHS
|
|
Connectivity Technology
|
Wireless, wired
|
|
Data Link Protocol
|
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
|
Data Transfer Rate
|
300 Mbps
|
|
Device Type
|
Wireless router - 4-port switch (integrated)
|
|
Enclosure Type
|
Desktop
|
|
Encryption Algorithm
|
AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA2-PSK
|
|
Features
|
NAT support, VLAN support, MAC address filtering, IPv6 support, parental control, firmware upgradable, file sharing, Access Control List (ACL) support, Quality of Service (QoS), Wi-Fi Protected Setup (WPS), DHCP server, Multiple SSID support, DNS pro
|
|
Frequency Band
|
2.4 GHz
|
|
Network / Transport Protocol
|
TCP/IP, UDP/IP, ICMP/IP, PPPoE, PPPoA, DHCP, DNS, DDNS
|
|
Remote Management Protocol
|
SNMP 1, SNMP 2, Telnet, HTTP, TFTP, SSH, CLI, TR-069, TR-098, TR-111, TR-181 i2
|
|
Routing Protocol
|
IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR)
|
|
Status Indicators
|
Power, WLAN, WAN, USB, WPS, Internet, DSL
|
|
Communications
|
|
|
Digital Signaling Protocol
|
ADSL, VDSL, ADSL2, ADSL2+, VDSL2
|
|
Protocols & Specifications
|
ITU G.992.3 (G.DMT.bis), ITU G.992.5, ITU G.992.1 (G.DMT) Annex A, ITU G.993.2, ITU G.998.4, ITU G.993.5, ITU G.992.2 (G.Lite) Annex A
|
|
Type
|
DSL modem
|
|
Expansion / Connectivity
|
|
|
Interfaces
|

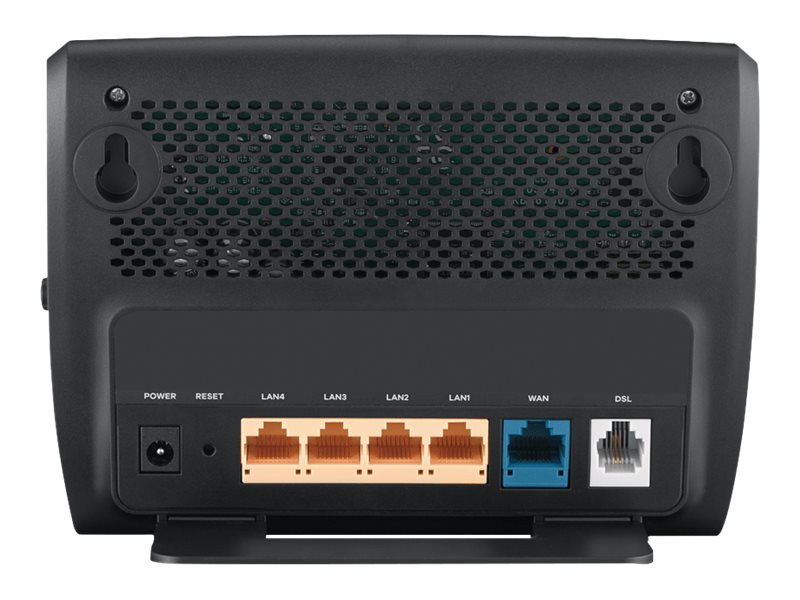

LAN: 4 x 10Base-T/100Base-TX - RJ-45 | WAN: 1 x VDSL2 / ADSL2+ over POTS - RJ-11 | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | USB 2.0: 1 x 4 pin USB Type A
|
|
Antenna
|
|
|
Antenna
|
Internal
|
|
Antenna Qty
|
2
|
|
Power
|
|
|
Power Consumption Operational
|
10.96 Watt
|
|
Power Device
|
External power adapter
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x network cable | 1 x phone cable
|
|
Localization
|
Europe
|
|
Dimensions & Weight
|
|
|
Depth
|
11.8 cm
|
|
Height
|
2.6 cm
|
|
Weight
|
220 g
|
|
Width
|
15.8 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
14.5 cm
|
|
Shipping Height
|
3.7 cm
|
|
Shipping Weight
|
440 g
|
|
Shipping Width
|
26 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
