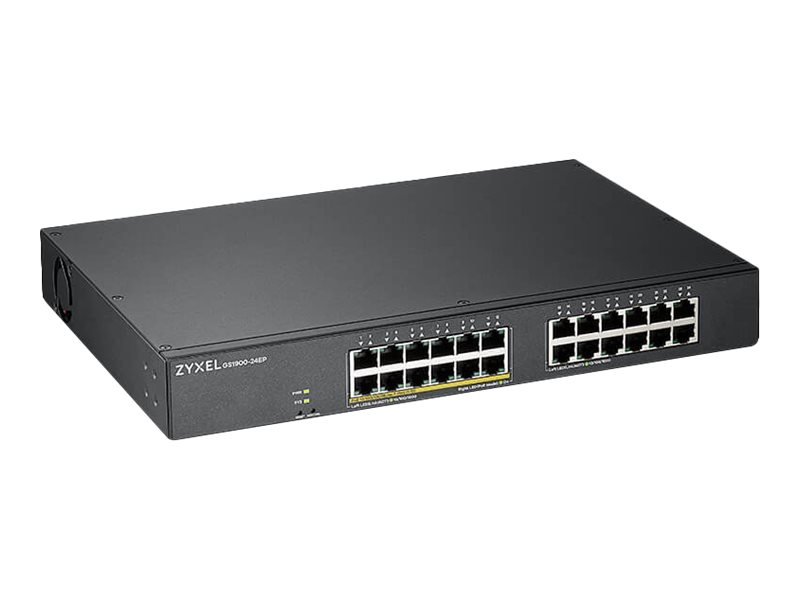

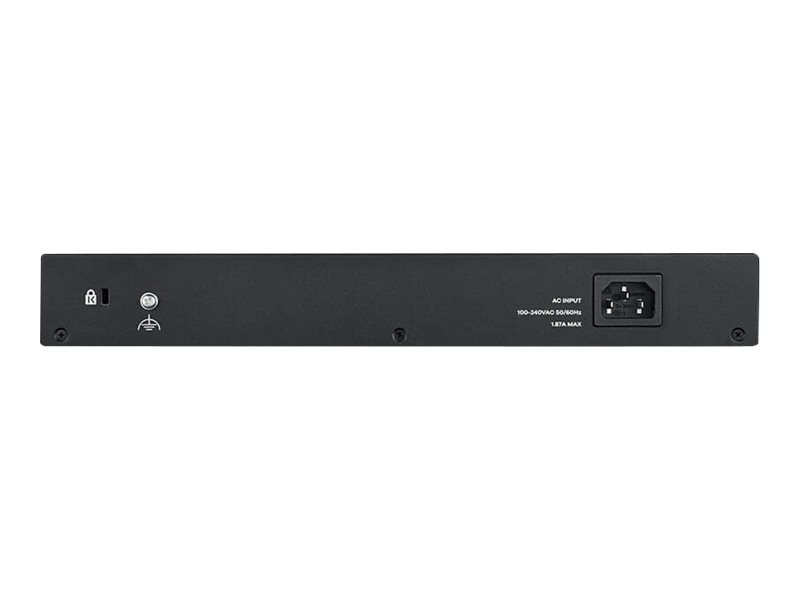

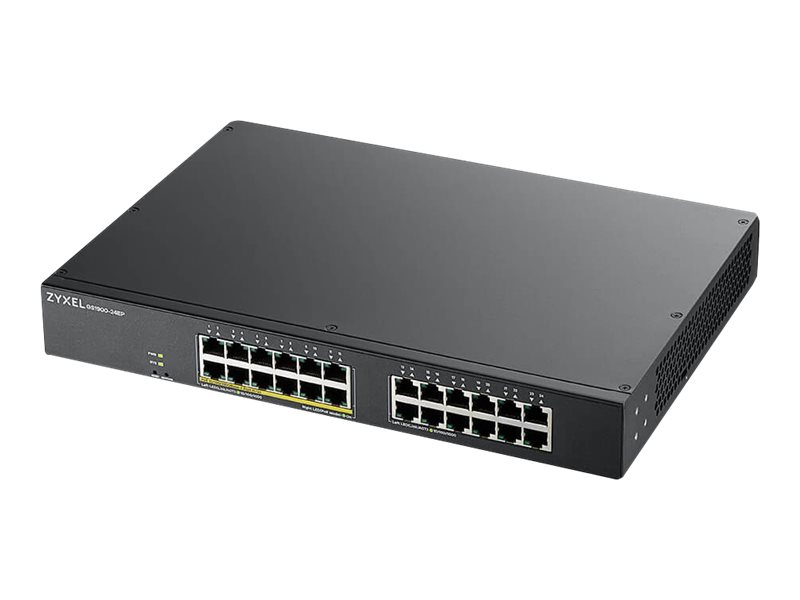

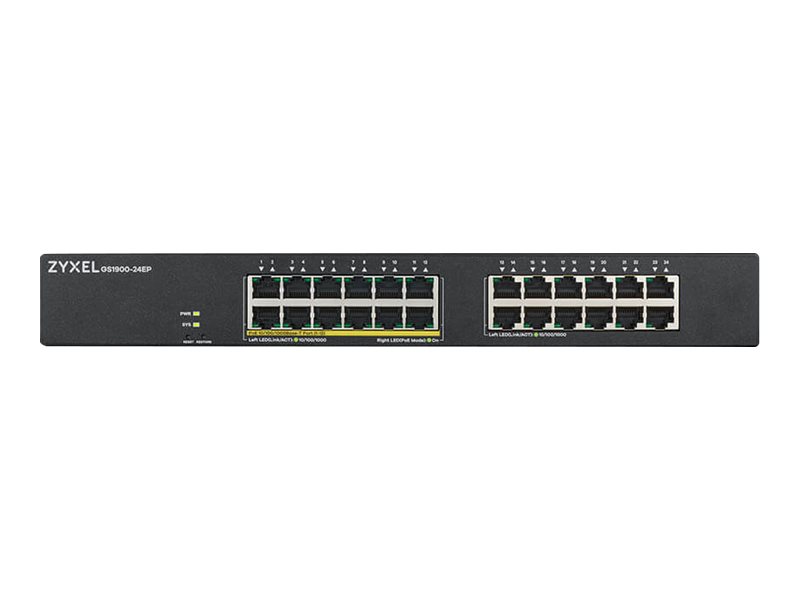

Zyxel GS1900-24EP Switch 24-porte Gigabit PoE
Zyxel GS1900-24EP - Switch - smart - 24 x 10/100/1000 (12 PoE) - monterbar på stativ, væg-monterbar - PoE (130 W)
-
Product no 996137795
Model GS1900-24EP-EU0101F
Brand ZyXEL Communications
EAN 4718937609468
Weight 3.41 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Zyxel GS1900-24EP - switch - 24 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 24 porte - smart |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 (12 PoE) |
| Power Over Ethernet (PoE) | PoE |
| PoE-budget | 130 W |
| Præstation | Omkoblingskapacitet: 48 Gbps<br>Fremsendelsespræstation: 35.7 Mpps |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Routingprotokol | IGMPv2, IGMP, IGMPv3 |
| Protokol til fjernadministration | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3 |
| Egenskaber | Datatransport, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DoS attack beskyttelse, Weighted Round Robin (WRR) kø, gem og send, IPv6 understøttet, Quality of Service (QoS), blæserløs, LACP support, LLDP support, Port Security, Energy Efficient Ethernet, Management Information Base (MIB), Strict Priority Queuing (SPQ), Class of Service (CoS), mærket VLAN, båndbreddekontrol pr. port, 525 KB pakkebuffer |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 33 cm x 23 cm x 4.4 cm |
| Vægt | 2.48 kg |
| Lokalisering | Europa |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 24 ports - smart |
| Enclosure Type | Rack-mountable, wall-mountable |
| Encryption Algorithm | SSL |
| Features | Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, Weighted Round Robin (WRR) queuing, store and forward, IPv6 support, Quality of Service (QoS), fanless, LACP support, LLDP support, Port S |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 48 Gbps | Forwarding performance: 35.7 Mpps |
| PoE Budget | 130 W |
| Ports | 24 x 10/100/1000 (12 PoE) |
| Power Over Ethernet (PoE) | PoE |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3 |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Status Indicators | Power, system, link/activity |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 12 x 1000Base-T RJ-45 | 12 x 1000Base-T RJ-45 PoE |
| Power | |
| Power Consumption Operational | 166.5 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, C-Tick Class B, RoHS, EN 60950-1, BSMI CNS 13438, BSMI CNS 14336 |
| Localization | Europe |
| MTBF | 910,015 hours |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 23 cm |
| Height | 4.4 cm |
| Weight | 2.48 kg |
| Width | 33 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 33.7 cm |
| Shipping Height | 7.9 cm |
| Shipping Weight | 3.87 kg |
| Shipping Width | 38.9 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
