Product no 993132519
Model GS1200-5-EU0101F
Brand ZyXEL Communications
EAN 4718937598670
Weight 0.39 kg

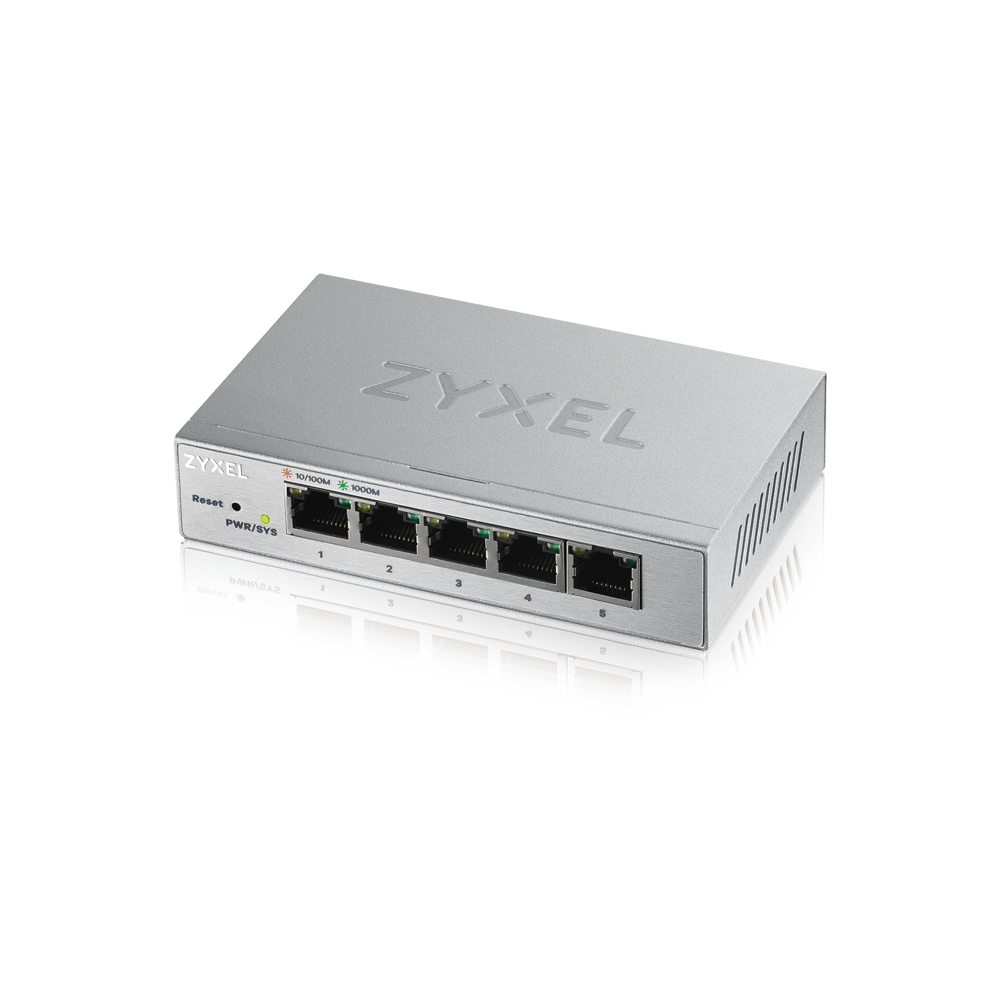

Produktbeskrivelse | Zyxel GS1200-5 - switch - 5 porte - Administreret |
Enhedstype | Switch - 5 porte - Administreret |
Undertype | Gigabit Ethernet |
Porte | 5 x 10/100/1000 |
Præstation | Omkoblingskapacitet: 10 Gbps |
Kapacitet | Multicast-grupper: 128 |
MAC adresse table størrelse | 2K indtastningshukommelse |
Jumborammesupport | 9KB |
Routingprotokol | IGMPv2, IGMP, IGMPv3 |
Protokol til fjernadministration | HTTP |
Egenskaber | Datatransport, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, portspejling, Weighted Round Robin (WRR) kø, Broadcast Storm Control, firmware kan opgraderes, til vægmontering, Quality of Service (QoS), blæserløs, 128 KB pakkebuffer, Energy Efficient Ethernet, løkkeforebyggelse, Class of Service (CoS), mærket VLAN, metalkabinet, Link Aggregation, Weighted Round Robin (WRR), portbaseret QoS |
Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
Dimensioner (B x D x H) | 12.1 cm x 7.5 cm x 2.6 cm |
Vægt | 233 g |
Lokalisering | Europa |
General | |
---|---|
Capacity | Multicast groups: 128 |
Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
Device Type | Switch - 5 ports - managed |
Enclosure Type | Desktop |
Features | Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, firmware upgradable, wall mountable, Quality of Service (QoS), fanless, 128KB packet buffer, Energy |
Jumbo Frame Support | 9KB |
MAC Address Table Size | 2K entries |
Performance | Switching capacity: 10 Gbps |
Ports | 5 x 10/100/1000 |
Remote Management Protocol | HTTP |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Status Indicators | Port status, port transmission speed, power |
Subtype | Gigabit Ethernet |
Expansion / Connectivity | |
Interfaces | 5 x 1000Base-T RJ-45 |
Power | |
Power Consumption Operational | 2.67 Watt |
Power Device | External power adapter |
Miscellaneous | |
Compliant Standards | C-Tick, EMC, FCC, RoHS, EN 60950-1, LVD, EMC Class A, EMC Class B, BMSI |
Localization | Europe |
Dimensions & Weight | |
Depth | 7.5 cm |
Height | 2.6 cm |
Weight | 233 g |
Width | 12.1 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 8.2 cm |
Shipping Height | 9.5 cm |
Shipping Weight | 388 g |
Shipping Width | 12.7 cm |
Environmental Parameters | |
Humidity Range Operating | 10 - 90% (non-condensing) |
Humidity Range Storage | 10 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Max Storage Temperature | 70 °C |
Min Operating Temperature | 0 °C |
Min Storage Temperature | -40 °C |
